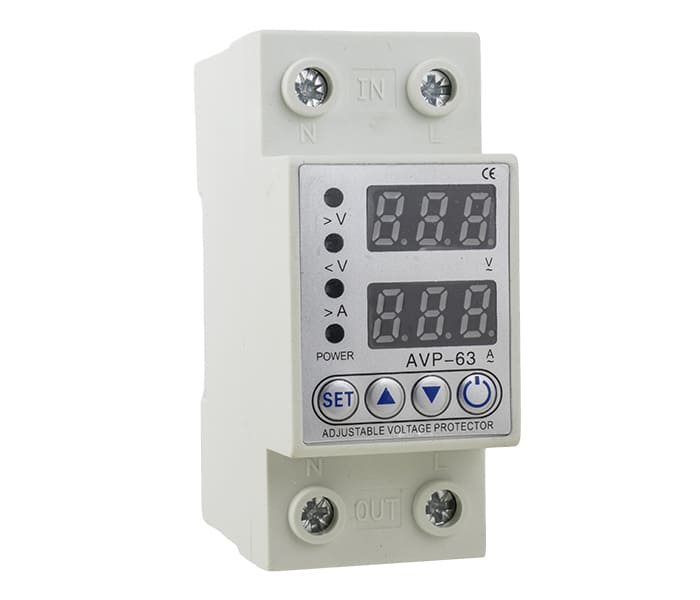

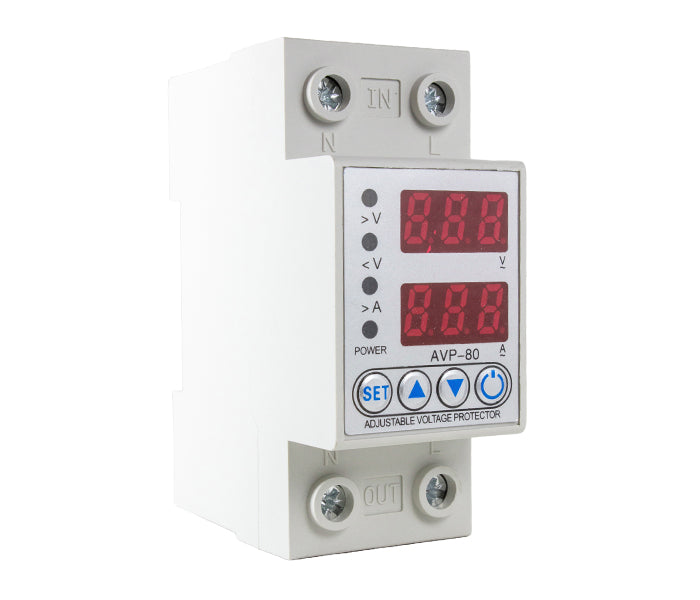

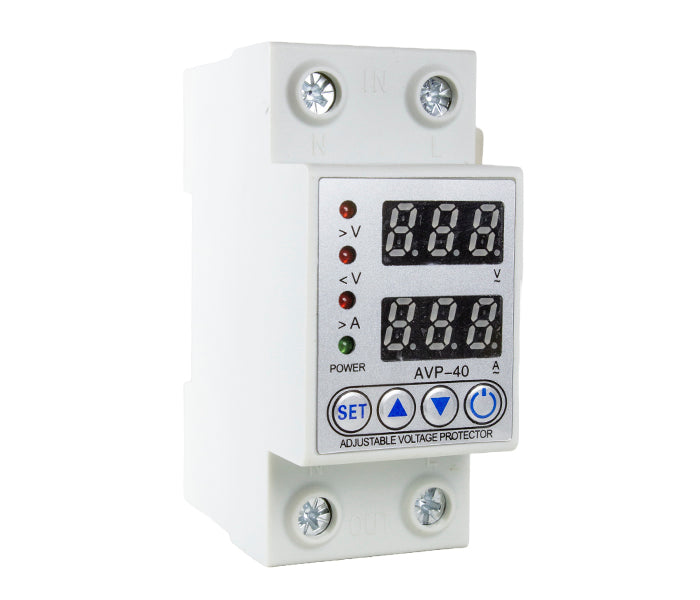

AVP Digital Overcurrent and Under/Overvoltage Protection Relay

CÓD: AVP-40A-220V

Description

AVP digital protection relays offer electrical safety against overcurrent and under/overvoltage, available in different current capacities (40A, 63A, and 80A). They are ideal for industrial applications that require reliability and advanced protection.

  • Protection against overcurrent and voltage variations
  • Models available in 40A, 63A, and 80A
  • Use in industrial and commercial electrical systems
  • Guarantee of safety and regulatory compliance

Select the options below

General specifications
ModelAVP-40A-220VAVP-63A-220VAVP-80A-220V
Power terminalsL - NL - NL - N
Supply voltage220VAC220VAC220VAC
Frequency50/60 Hz50/60 Hz50/60 Hz
Maximum switching current40A63A80A
Adjustment of overvoltage240 ~ 300VAC230 ~ 300VAC230 ~ 300VAC
Adjustment of undervoltage140 ~ 200VAC140 ~ 210VAC140 ~ 210VAC
Adjustment of sobrecorrente1 ~ 40A16 ~ 63A20 ~ 80A
Adjustment of the delay after energization1 ~ 300s3 ~ 600s3 ~ 600s
Adjustment of the delay after sub/overvoltage5 ~ 300s5 ~ 600s5 ~ 600s
Adjustment of the delay after sobrecorrente30 ~ 300s30 ~ 600s30 ~ 600s
Output1 NO relay1 NO relay1 NO relay
Electrical life100,000 operations100,000 operations100,000 operations
Operating temperature-50°C ~ +55°C-50°C ~ +55°C-50°C ~ +55°C
Relative air humidity< 50% (40°C)< 50% (40°C)< 50% (40°C)
Degree of protectionIP40 (Front) / IP20 (Terminals)IP40 (Front) / IP20 (Terminals)IP40 (Front) / IP20 (Terminals)
Overvoltage categoryIIIIIIIII
Pollution degree333
Gauge applicable (mm²)1~25mm²1~25mm²1~25mm²
Weight160g160g160g
MountingTrilho TS35 (EN/IEC 60715)Trilho TS35 (EN/IEC 60715)Trilho TS35 (EN/IEC 60715)
