Components

AXP Miniature Power Relay

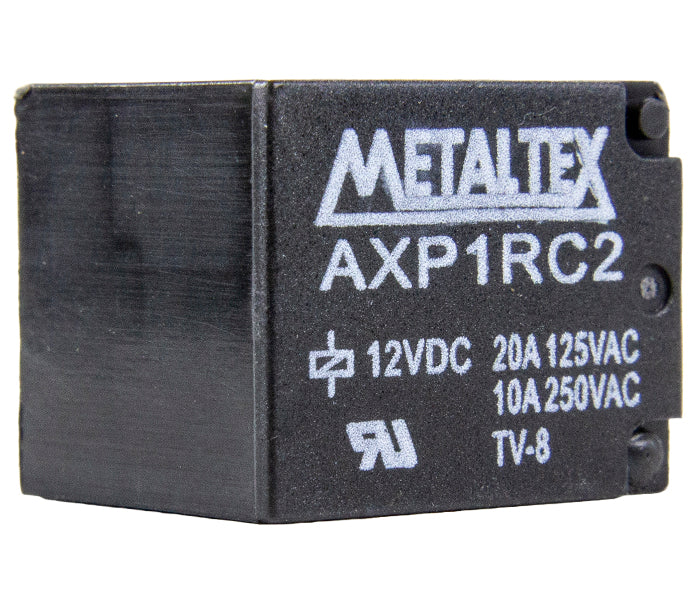

CÓD: AXP1RC2

Description

The AXP relay is designed for applications requiring high inrush current and reliability. With 20A contacts, excellent insulation, and long mechanical life, it offers robustness in industrial environments. Available in 12V and 24V versions.

  • Supports up to 20A resistive load and 250VAC / 110VDC maximum switching voltage
  • Available in 12VDC and 24VDC
  • Direct mounting on printed circuit board (PCB)

Select the options below

General specifications
Dielectric strength between coil and contacts2500 VAC (1 minuto)
Dielectric strength between open contacts1000 VAC (1 minuto)
Insulation resistance250 MΩ min. (500 VDC)
Operating temperature-40 ~ 85ºC
Vibration resistance10 ~ 55 Hz dupla amplitude 1.0 mm
Impact resistance10 G
