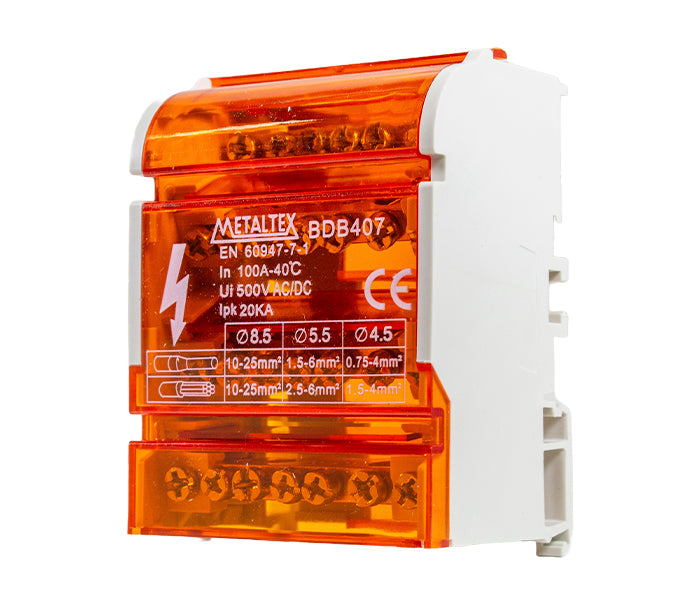

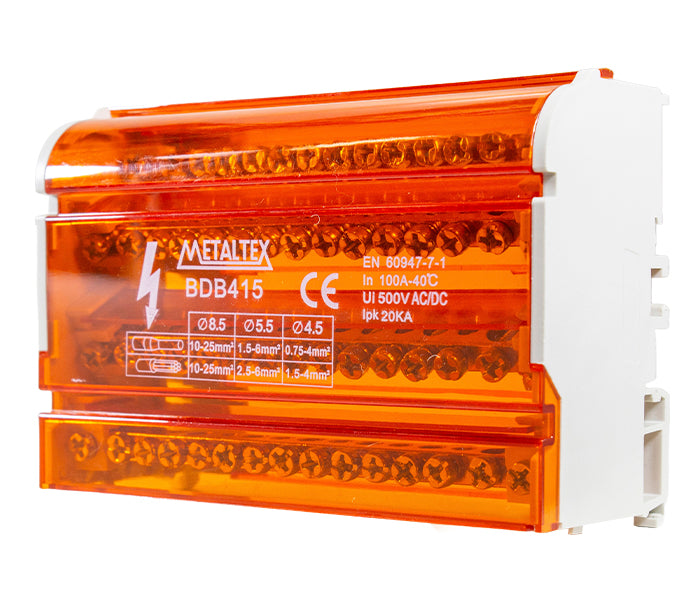

Distribution Block BDB

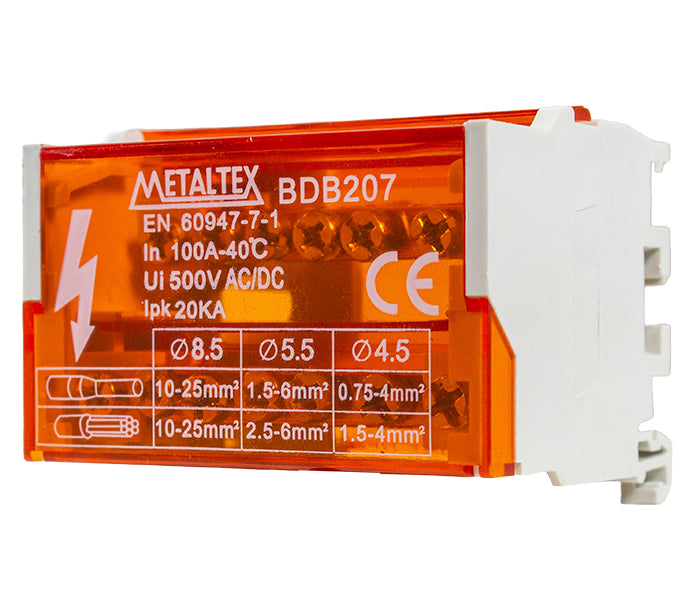

CÓD: BDB207

Description

The BDB distribution block is designed for organized circuit distribution in electrical panels, with multiple connection points per pole. Available in 2 or 4 pole versions, it allows high connection density with easy access. It features a hinged removable cover, facilitating installation and inspection. Constructed with UL94 V-0 insulating material, it ensures electrical safety and reliability according to IEC 60947-7-1.

  • Voltage range: up to 500V
  • Rated current: 100A
  • Connection configuration: 2 or 4 poles, with 7 or 15 terminals per pole
  • Mounting and protection: DIN rail, IP20 degree of protection

Select the options below

General specifications
Rated current100 A
Short-circuit peak current (Ipk)20 kA
Rated voltage500 V
Dielectric strength1000 V
FlammabilityUL94-V0

Compare to lines

Distribution Block BDB Distribution Block BDB see details
Modular Distribution Block BDA Modular Distribution Block BDA see details
Description
The BDB distribution block is designed for organized circuit distribution in electrical panels, with multiple connection points per pole. Available in 2 or 4 pole versions, it allows high connection density with easy access. It features a hinged removable cover, facilitating installation and inspection. Constructed with UL94 V-0 insulating material, it ensures electrical safety and reliability ac…
The BDA distribution block is designed for power distribution in electrical panels, allowing multiple outputs from a single input. It features a compact modular design with a hinged cover, facilitating inspection and maintenance. Manufactured from self-extinguishing insulating material, it offers high dielectric strength and thermal resistance. Ideal for industrial applications in accordance with…
