Pin Header
CÓD: BPDC-80
Description
Description
The pin header is a versatile connector for electronic circuits. It offers different mounting and row configurations. It supports up to 1A and 250V, with high dielectric strength. Manufactured with quality materials, it ensures durability and safety.
- Available in single or double row versions
- 90° and 180° mounting options
- Maximum current of 1A, nominal voltage of 250V (AC/DC)
- Dielectric strength of 1000 VAC for 1 minute
Select the options below
Code list
Code list
| Code | Description |
|---|---|

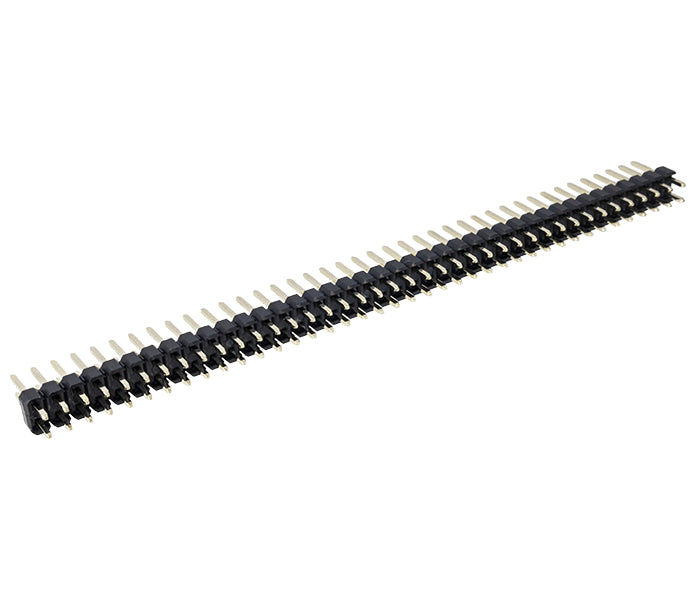

| BPDC-80 | 80-Way / - / 180° · Double |

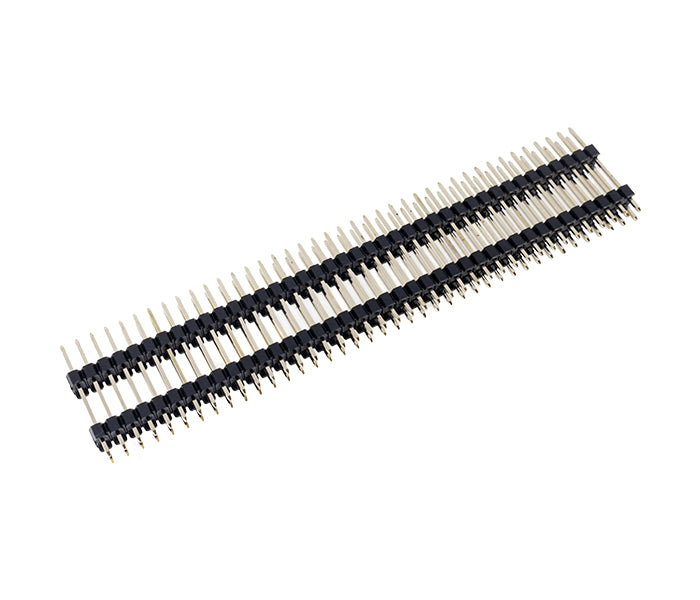

| BPDDI-22MM-80 | 80-Way / 22mm / Double Insulator · Double |

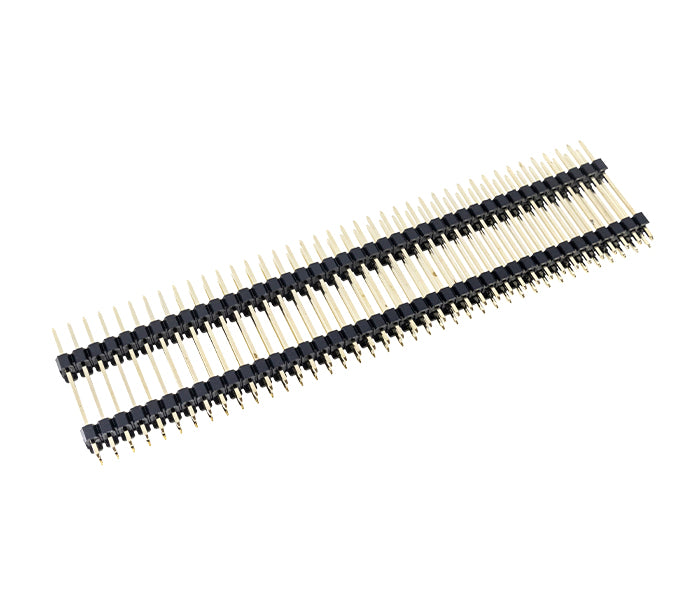

| BPDDI-25MM-80 | 80-Way / 25mm / Double Insulator · Double |

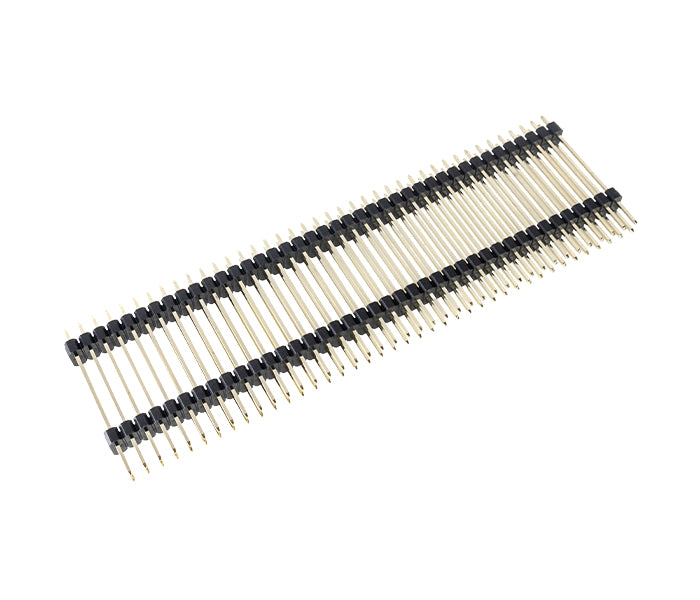

| BPDDI-30MM-80 | 80-Way / 30mm / Double Insulator · Double |

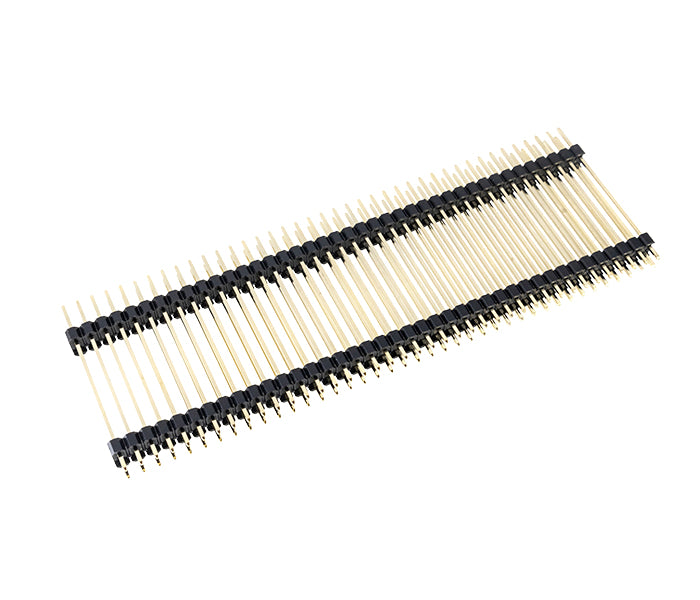

| BPDDI-35MM-80 | 80-Way / 35mm / Double Insulator · Double |

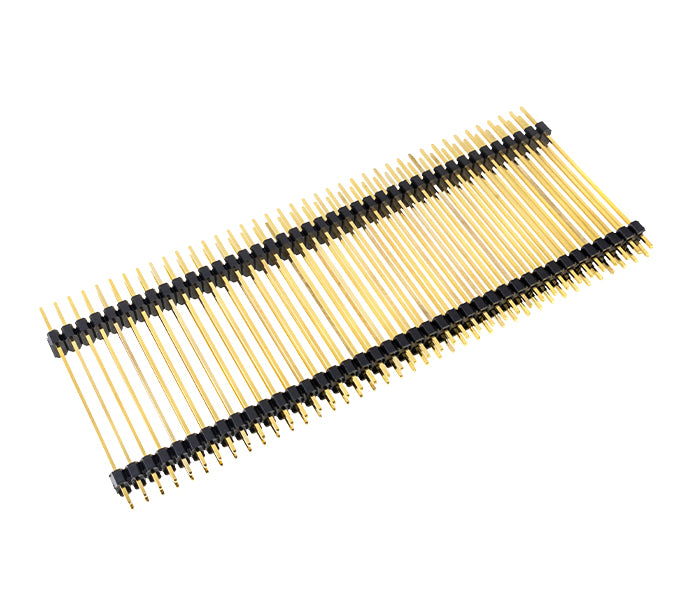

| BPDDI-40MM-80 | 80-Way / 40mm / Double Insulator · Double |

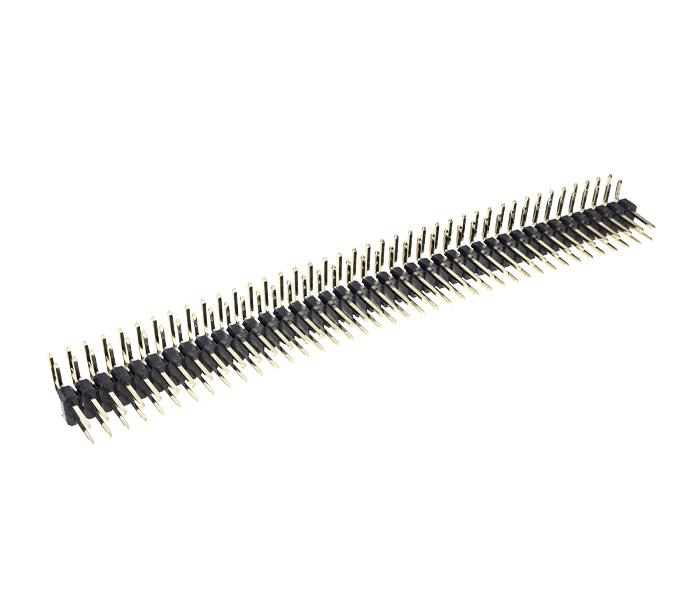

| BPDN-80 | 80-Way / - / 90° · Double |

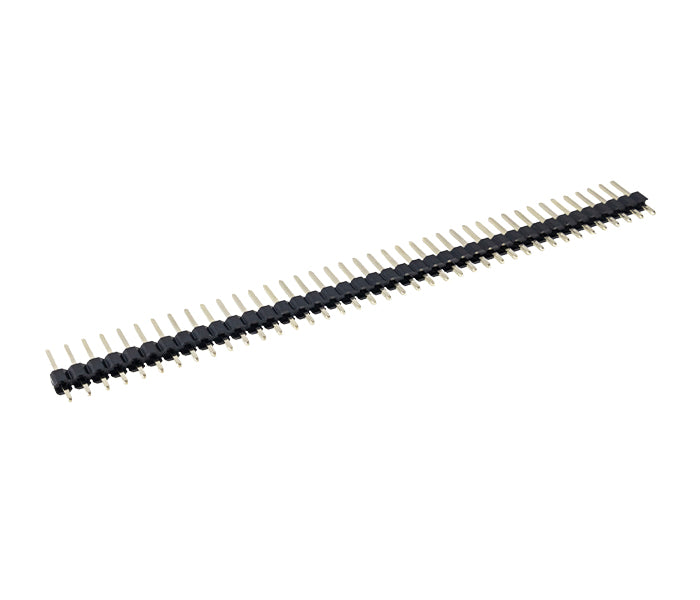

| BPSC-40 | 40-Way / - / 180° · Simple |

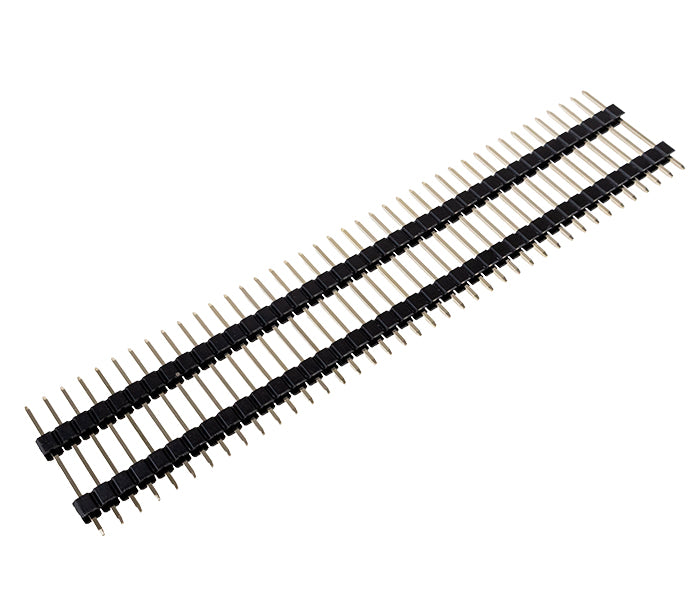

| BPSDI-22MM-40 | 40-Way / 22mm / Double Insulator · Single |

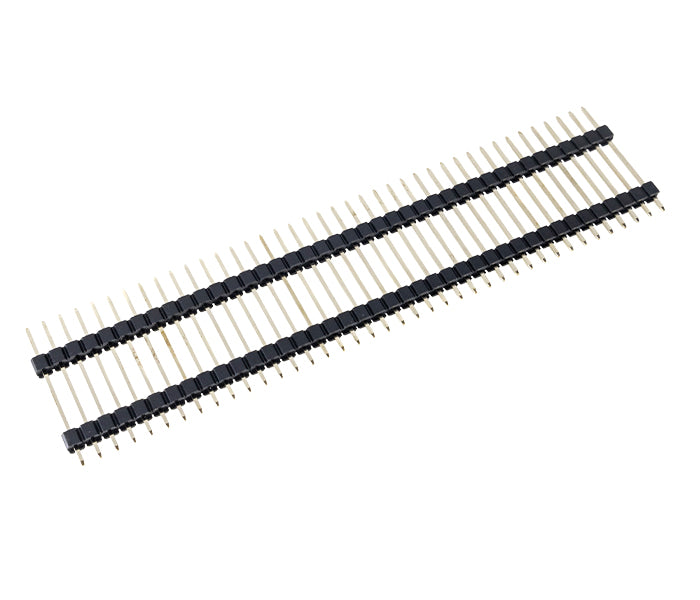

| BPSDI-25MM-40 | 40-Way / 25mm / Double Insulator · Single |

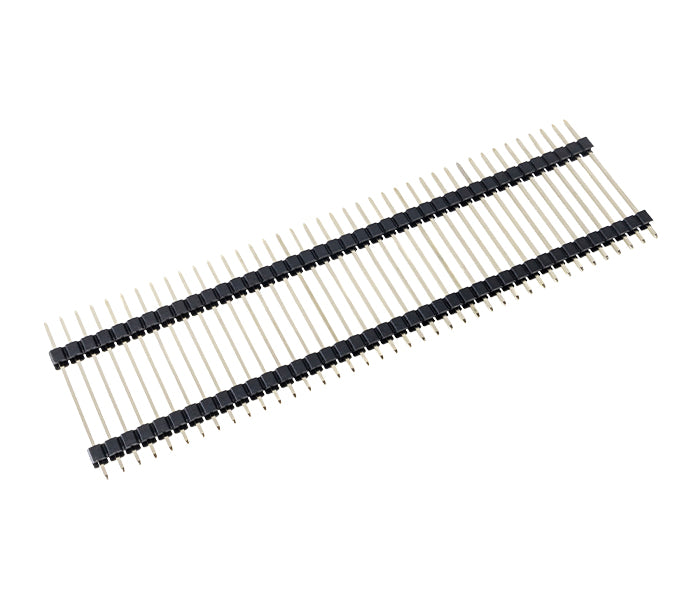

| BPSDI-30MM-40 | 40-Way / 30mm / Double Insulator · Single |

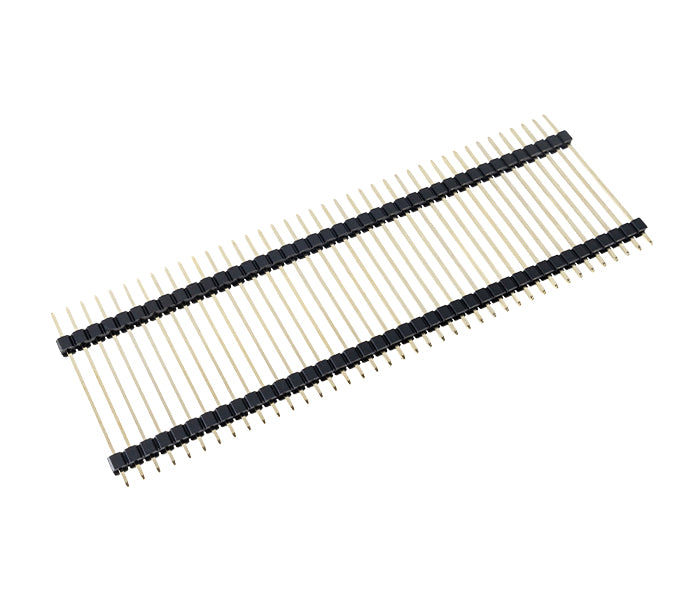

| BPSDI-35MM-40 | 40-Way / 35mm / Double Insulator · Single |

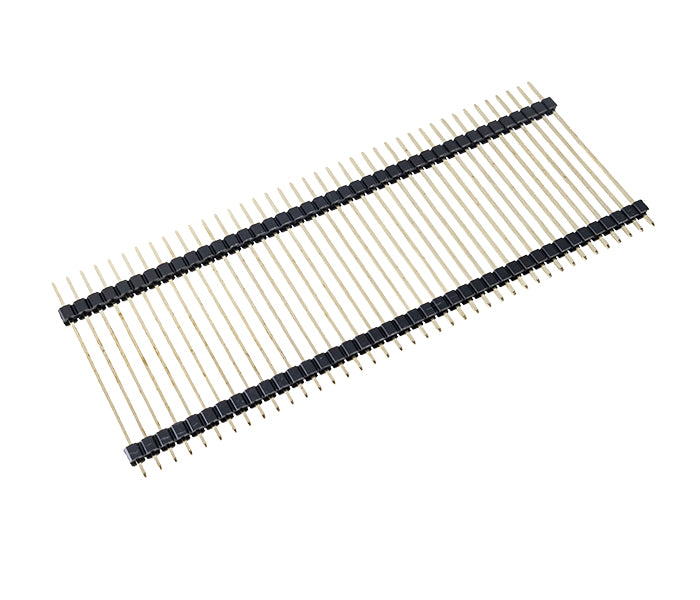

| BPSDI-40MM-40 | 40-Way / 40mm / Double Insulator · Single |

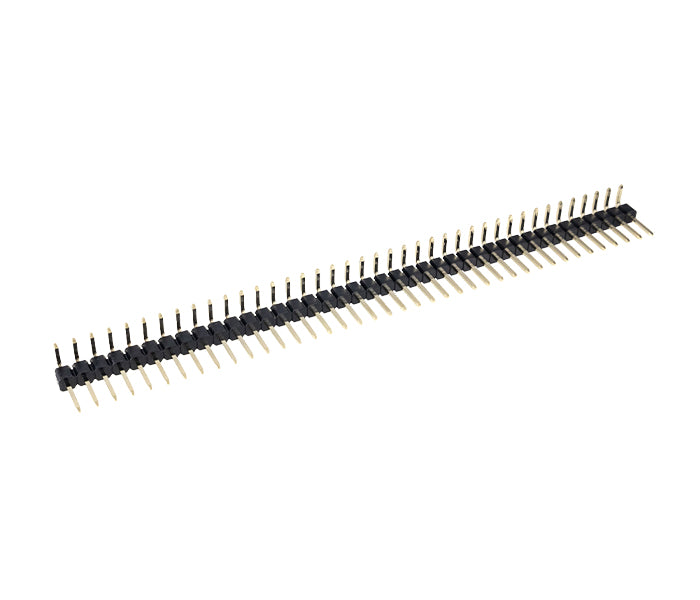

| BPSN-40 | 40-Way / - / 90° · Simple |

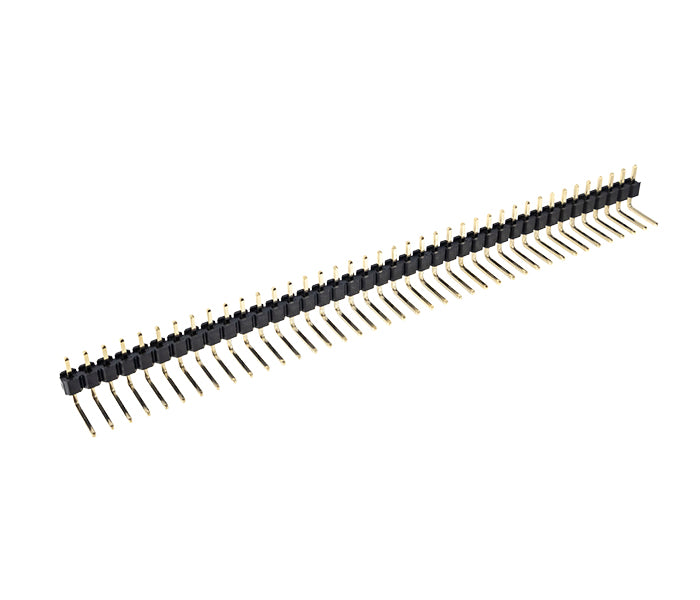

| BPSNI-40 | 40-Way / - / 90° · Simple Inverted |
General specifications
General specifications
| Maximum current | 1A |
| Rated voltage | 250VAC-VDC / VAC-VDC |
| Max. initial contact resistance | 20 mΩ |
| Min. insulation resistance | 1000 MΩ |
| Dielectric strength | 1000 VAC (1 minuto) |
| Operating temperature | -40 ~ 105ºC |
| Insulator material | PBT UL94V-0 |
| Contact material | Gold-plated brass |
