Jumper BP for Feed-Through Terminal Block

Description

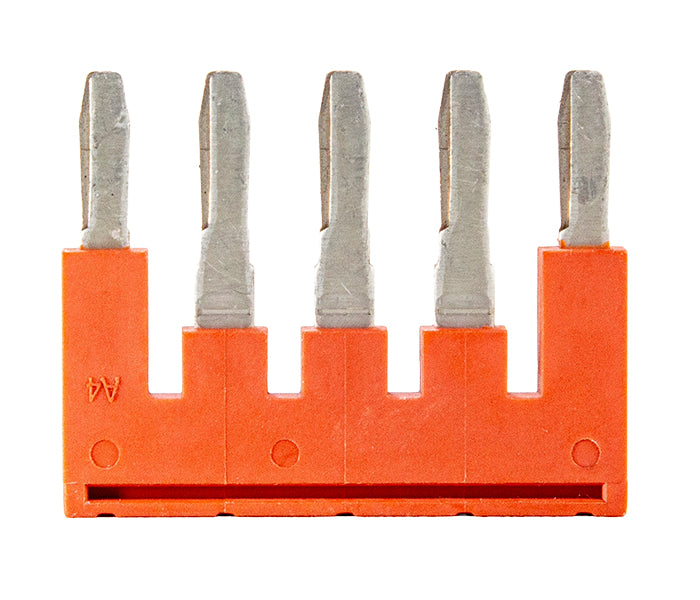

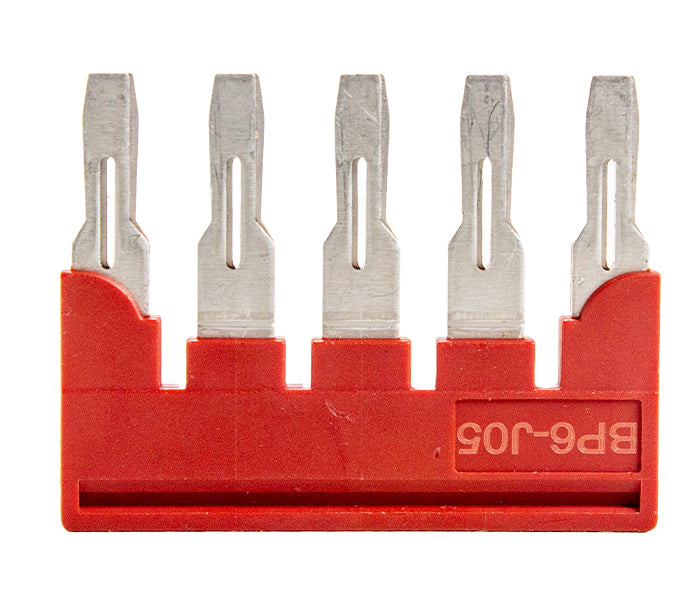

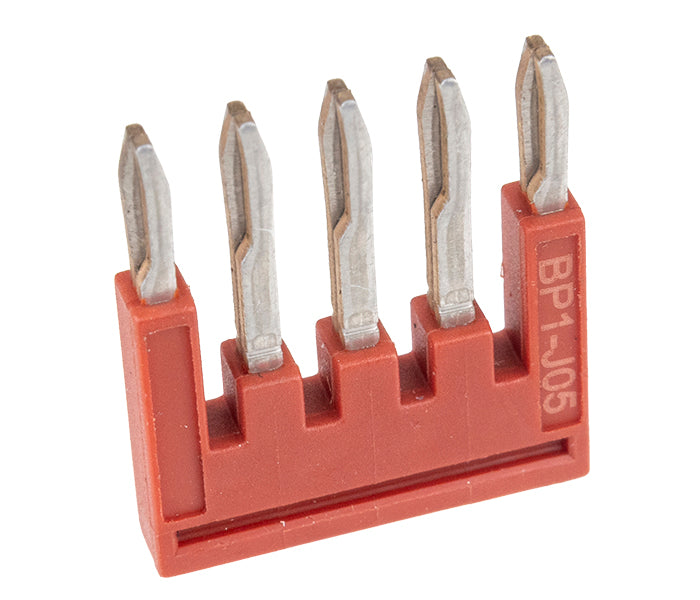

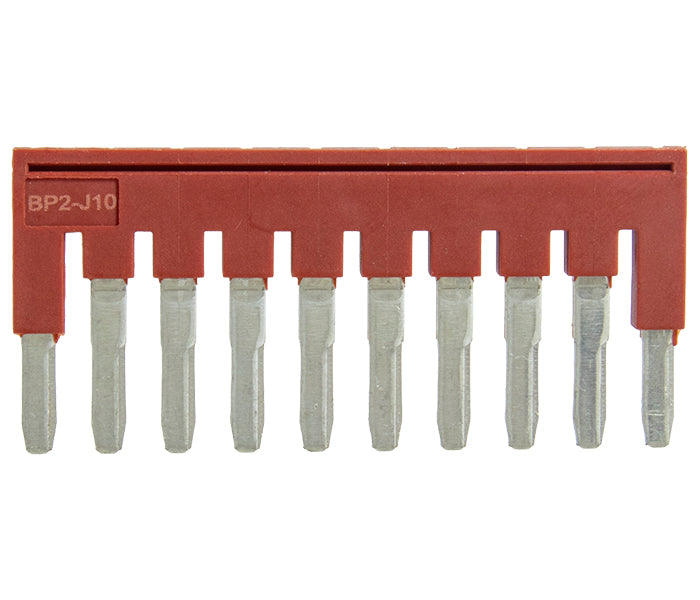

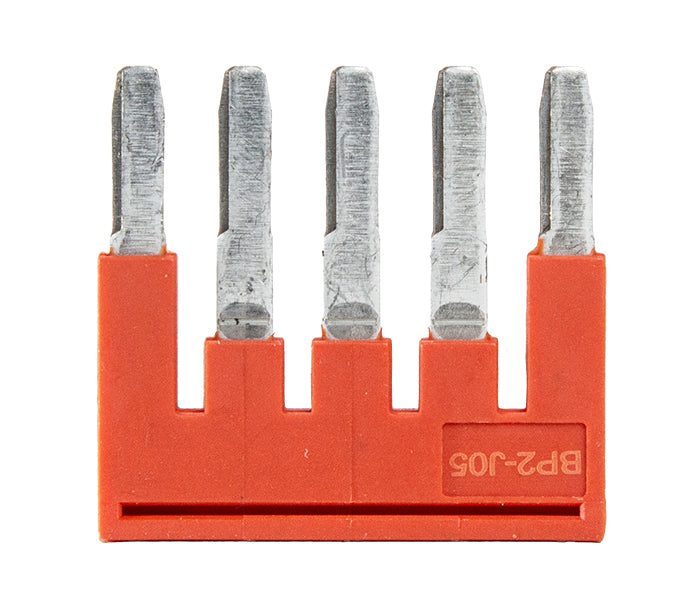

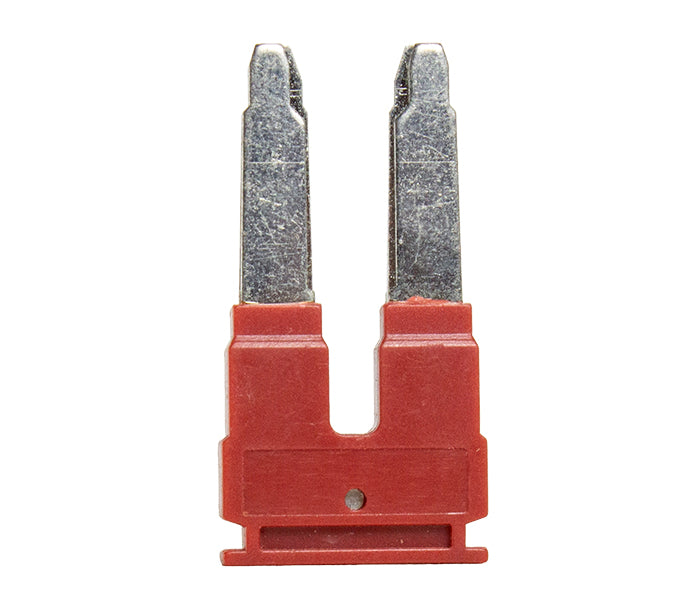

The BP Jumpers are interconnection accessories for BP series push-in terminal blocks, which allow adjacent terminal blocks to be linked together and the same potential to be distributed without additional cables. Available in six versions, according to the terminal block series and the number of contacts: BP1-J05, with 5 contacts, for BP1-F, BP1-FT and BP1-D22 terminal blocks; BP2-J05, with 5 contacts, and BP2-J10, with 10 contacts, for BP2-F, BP2-FT, BP2-T32 and BP2-D22 terminal blocks; BP4-J05, with 5 contacts, for BP4-F, BP4-FT and BP4-D22 terminal blocks; BP6-J05, with 5 contacts, for BP6-F and BP6-FT terminal blocks; and BP10-J02, with 2 contacts, for BP10-F and BP10-FT terminal blocks. BP series terminal blocks are mounted on TS35 DIN rail, accept cables up to 10mm², feature spring connection that requires no special tools and comply with IEC60947-7-1 and UL1059 standards. The jumpers simplify panel assembly and reduce installation time.

  • 2, 5 and 10-contact jumpers
  • For BP1, BP2, BP4, BP6 and BP10 blocks
  • Links adjacent terminal blocks
  • For cables up to 10mm²

Select the options below

CÓD: BP1-J05
