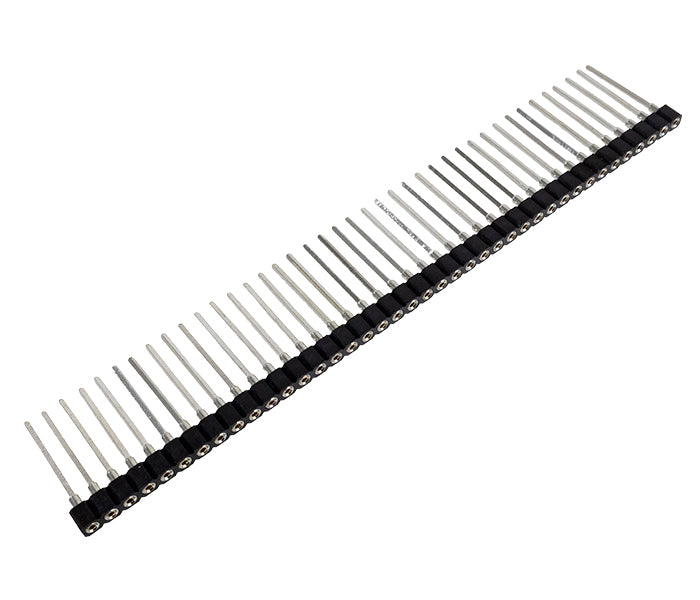

IC Socket for Wire Wrap Terminals
CÓD: BPW-40
Description
Description
The BPW socket is designed for electronic applications using the wire wrap technique in integrated circuits. Available in up to 40 pins, it offers flexibility for different designs and layouts. With low contact resistance and excellent insulation, it ensures secure and reliable connections.
- Available in versions from 1 to 40 pins
- Maximum current of 1A and rated voltage of 60V
- Insulator in PPS UL94V-0
General specifications
General specifications
| Maximum current | 1A |
| Rated voltage | 60VAC-VDC |
| Max. initial contact resistance | 10mΩ |
| Min. insulation resistance | 1000 MΩ (500V) |
| Dielectric strength | 1000 VAC (1 minuto) |
| Operating temperature | -40ºC ~ +105ºC |
| Insulator material | PPS UL94V-0 |
| Contact material (4-finger internal spring) | Beryllium copper |
| Material of the terminals | Tin-plated brass |
