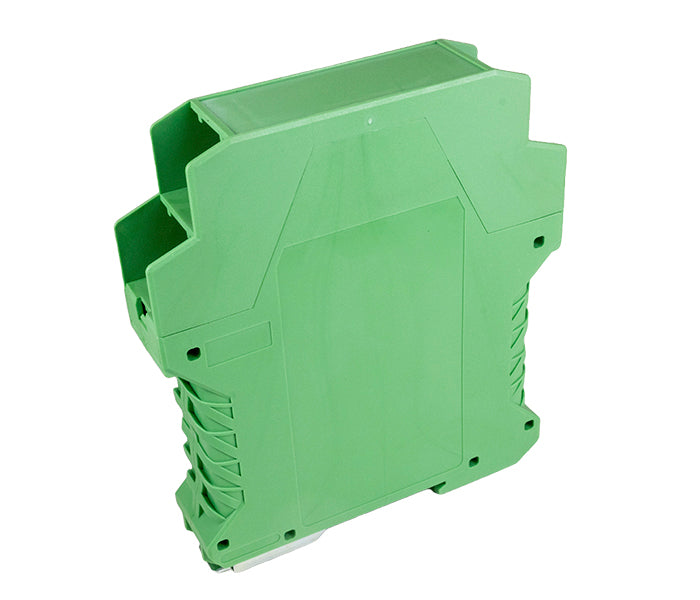

Plastic Case CPME-DIN22

CÓD: CPME-DIN22,5-V

Description

The CPME-DIN22.5 is a modular plastic enclosure for electronic mounting on a 35mm DIN rail. With up to 16 connection points, it offers practicality and organization in compact electrical systems. Its ventilated, flame-retardant material structure ensures safety and durability in operation. Versatile and efficient, it is suitable for modern applications that demand flexibility and easy integration.

  • Compact width of 22.5mm and an option with or without ventilation
  • Supports up to 16 connection points via detachable terminals, on two levels and two sides
  • Made of flame-retardant PA66 with an IP20 protection rating
  • Includes accessories such as terminals and a blank cover

Select the options below

General specifications
Dimensions22.5 x 99 x 113.95mm (largura X comprimento X altura)
MountingTrilho DIN 35mm
Connection points16 in the total – 4 bornes removable, of 4 ways each
Allowable wire gaugeSolid or flexible wires up to 2.5mm²
Rated capacity10A/300V (por ponto)
MaterialPA66, UL94 V-0
PCB mounting2 guias internas
IdentificationOne area on each side, for adhesive label use
Unit weight (empty enclosure)53g
Power dissipada allowable
(For the electronics to be embedded, at an ambient temperature of 25°C)

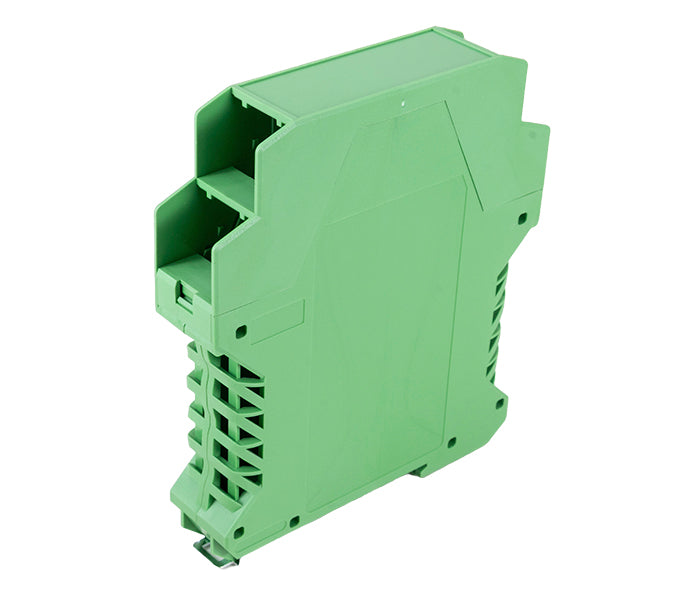

Caixa with ventilation 6W
Caixa without ventilation 5W
Operating temperature (depending on power dissipation)
- 40 ~ +105°C
Degree of protectionIP20
