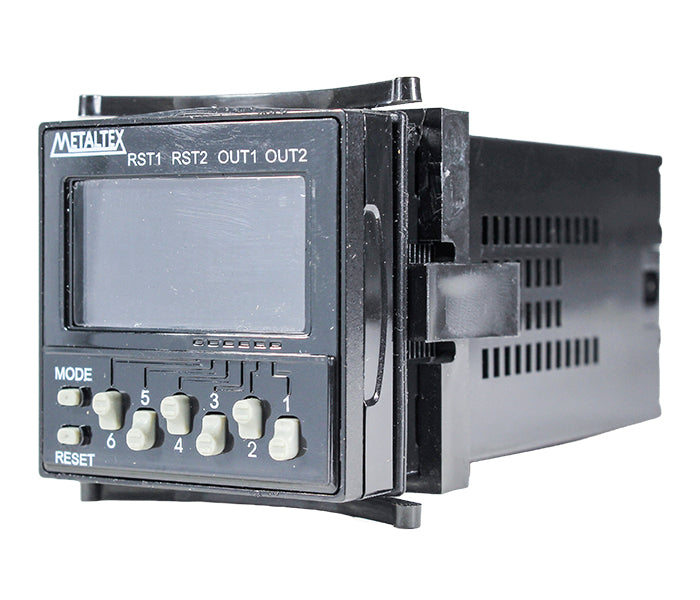

CTHD6 Digital Timer / Counter / Tachometer
CÓD: CTHD6-AC
Description
Description
The CTHD6 is a multifunctional device that integrates a timer, counter, and tachometer into a single unit. Developed for industrial applications, it offers high versatility in process control and monitoring, with a digital display and various input and operation settings.
- 3-in-1 function: timer, counter, and tachometer in the same device
- 9 operating modes and 2 relay outputs for greater flexibility
- Configurable inputs (NPN, PNP, or dry contact)
- LCD display with backlight and 12VDC auxiliary power for sensors
General specifications
General specifications
| Model | CTHD6-AC |
|---|---|
| Power supply | 100~240VAC (50/60Hz) -+10% -15% |
| Consumption | 6.2VA max. |
| Mounting | Frontal of panel |
| Connections | Parafusos |
| Tela | LCD - 7 segmentos - 6 dígitos |
| Entradas | Inputs without voltage - NPN or contact seco / Input of voltage - PNP (selecionável) • Input without voltage Impedance ON: 1kΩ max. Voltage residual ON: 3V max. Impedance OFF: 100kΩ min. • Input of voltage Voltage ON: 4.5 ~ 30 VDC / DC Voltage OFF: 0 ~ 2 VDC / DC (Resistance: ~ 4.7 kΩ) |
| Control outputs | Relay / Relay - 2 contacts IN THE - 5The -250VAC resistivos |
| Fonte auxiliar | 12VDC, 80mA |
| Protection of keypad | Yes |
| Memory of data | EEPROM - mantém data per 10 anos |
| Electrical life | 10 x 10³ operations (5A-250VAC) |
| Mechanical life | 10 x 10⁶ operations min. |
| Weight | 170g |
