Automation

Front Mount Auxiliary Contact Blocks

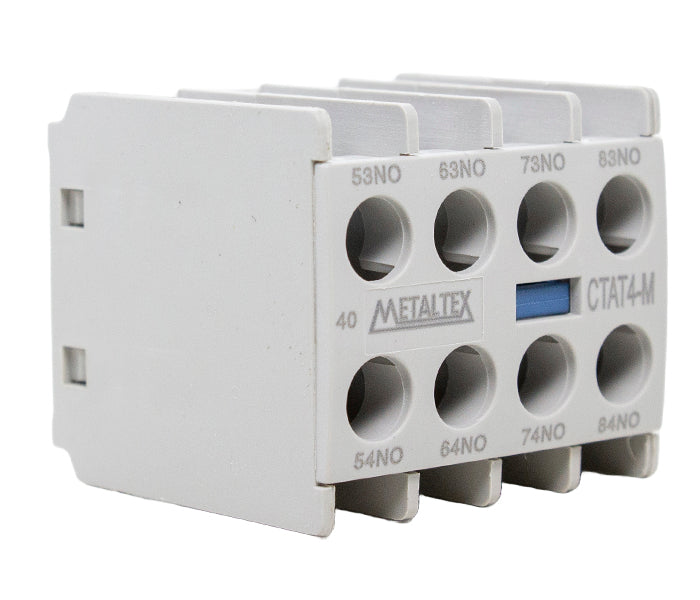

CÓD: CTAT4-40M

Description

Front-mounted auxiliary contact blocks for contactors, ideal for expanding control functions in electrical systems. Compatible with different models, they offer versatility and easy installation.

  • Application categories: AC-1, AC-3, and AC-4
  • Available in versions for alternating current (AC) and direct current (DC)
  • Models with AC coils may include terminals for printed circuit boards (PCB)
  • In compliance with IEC 60947-4-1 and EN 60947-4-1

Select the options below

General specifications
Capacidade AC3ModelsCTM6CTM9CTM12CTM16
Capacidade AC3220 ~ 240 V 3ø1.5 KW / 7 A2.2 KW / 9 A3 KW / 12 A4 KW / 15 A
380 ~ 440 V 3ø2.2 KW / 6 A4 KW / 9 A5.5 KW / 12 A7.5 KW / 16 A
500 ~ 550 V 3ø3 KW / 5 A3.7 KW / 6 A4 KW / 7 A5.5 KW / 9 A
690 V 3ø3 KW / 4 A4 KW / 5 A
AC1 (Ith)20 A
Electrical lifeAC3 - 1,000,000 oper.
AC4 - 200,000,000 oper.
Mechanical life12,000,000 oper.
Cycle of operationsAC3 - 1800 oper./h
AC4 - 300 oper./h
ConsumptionCA - Partida32 VA
CA - Acionada6 VA
CC - Partida3 W
CC - Acionada3 W

Compare to lines

Front Mount Auxiliary Contact Blocks Front Mount Auxiliary Contact Blocks see details
Side Mounting Auxiliary Contact Blocks Side Mounting Auxiliary Contact Blocks see details
Description
Front-mounted auxiliary contact blocks for contactors, ideal for expanding control functions in electrical systems. Compatible with different models, they offer versatility and easy installation.


Application categories: AC-1, AC-3, and AC-4

Available in versions for alternating current (AC) and direct current (DC)

Models with AC coils may include terminals for printed circuit boards (PCB)

In…
Side-mounted auxiliary contact block for CTM6 to CTM16 and CX6 contactors, used to expand control functions in electrical systems.


1 NO contact

Side mounting

Compatible with CTM6 to CTM16 and CX6 contactors


Para modeloCTM6 and CX6 —
