DB to PCI Connector DBPN
CÓD: DBPN1F-09
Description
Description
The DBPN connector is designed for 90° angled PCI board mounting. Available in various configurations, it supports up to 1A and 250V. It offers high electrical insulation and operational reliability. Constructed with reinforced materials, it guarantees durability and precision.
- Available in male and female versions
- With 9, 15, 25, or 37 contacts at a 90° angle for PCI mounting
- Maximum current of 1A
- Dielectric strength of 1000 VAC for 1 minute
- Insulator made of glass-fiber reinforced PBT UL94V-0
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| DBPN1F-09 | 9-Way / Female / 8.08mm |

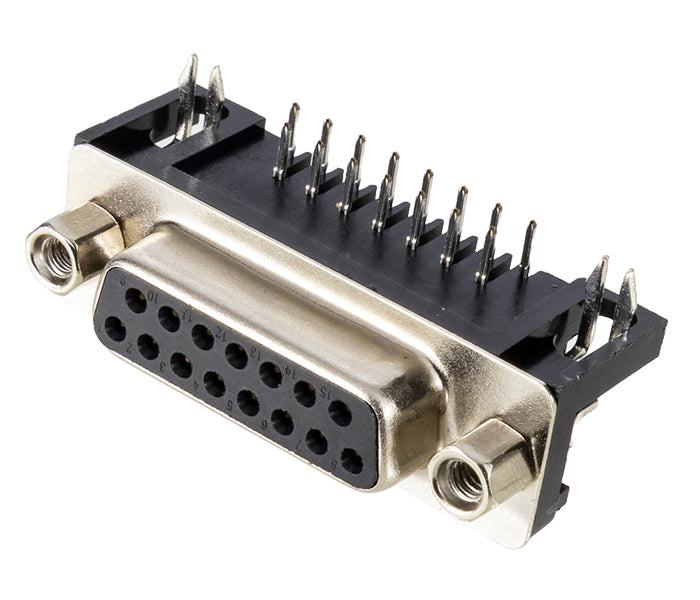

| DBPN1F-15 | 15-Way / Female / 8.08mm |

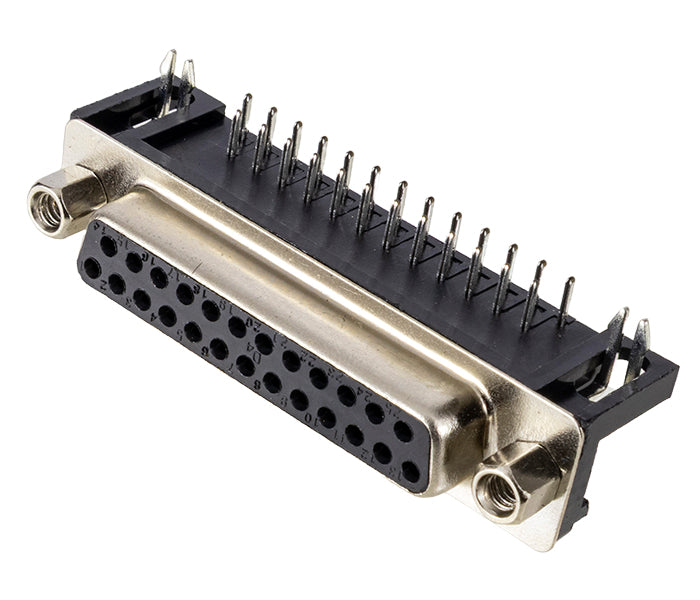

| DBPN1F-25 | 25-Way / Female / 8.08mm |
| DBPN1F-37 | 37-Way / Female / 8.08mm |

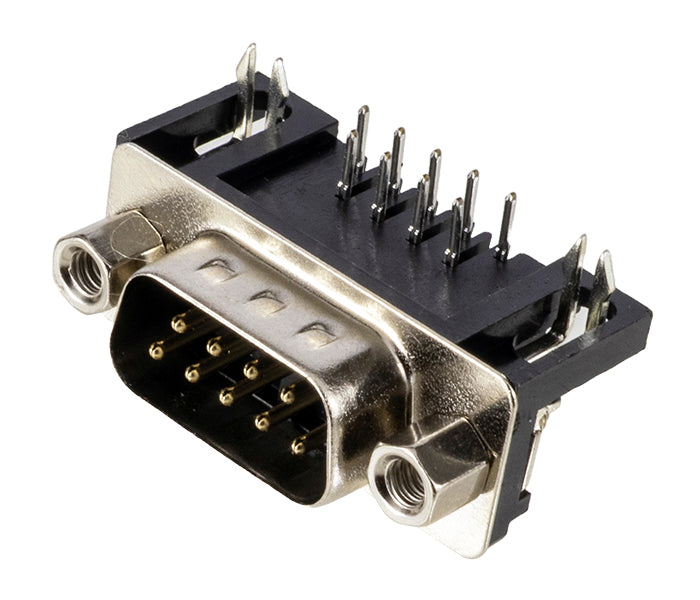

| DBPN1M-09 | 9-Way / Male / 8.08mm |

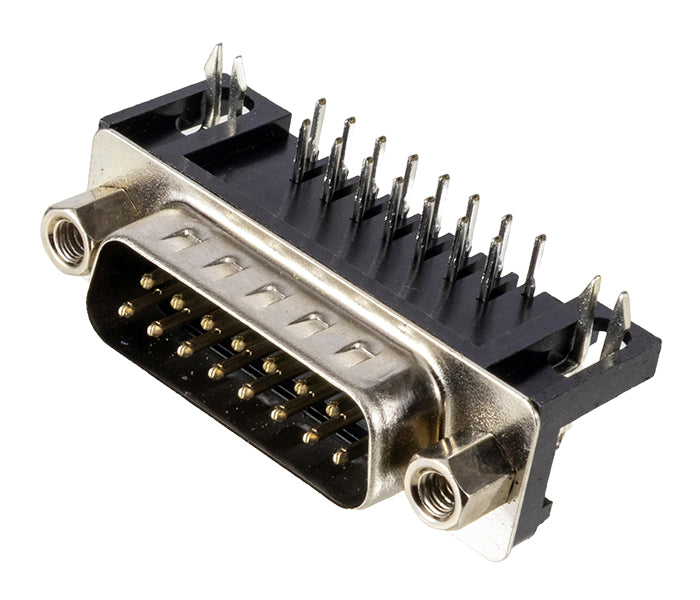

| DBPN1M-15 | 15-Way / Male / 8.08mm |

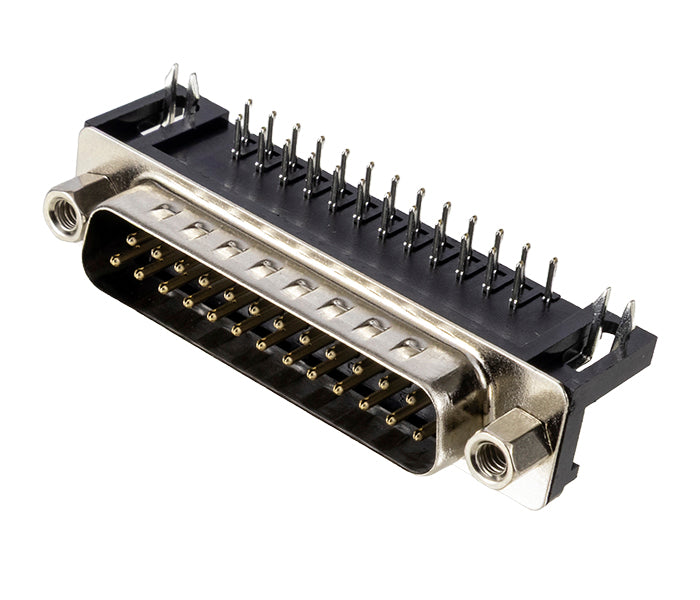

| DBPN1M-25 | 25-Way / Male / 8.08mm |

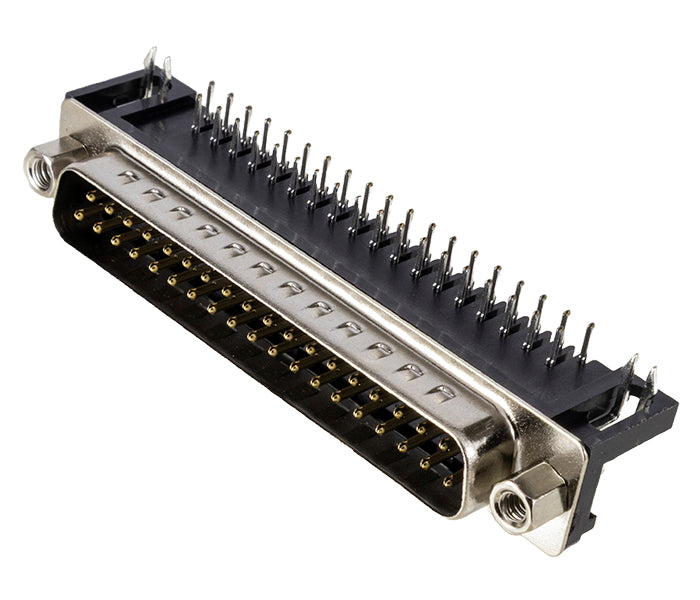

| DBPN1M-37 | 37-Way / Male / 8.08mm |

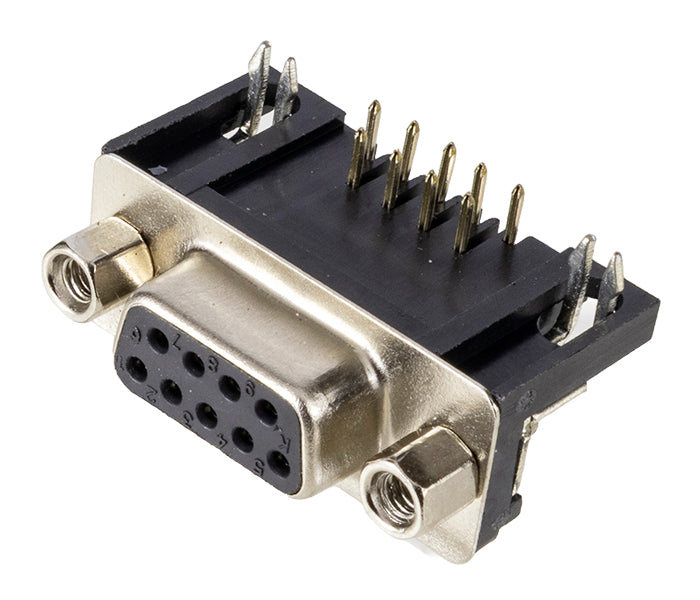

| DBPN2F-09 | 9-Way / Female / 10.3mm |

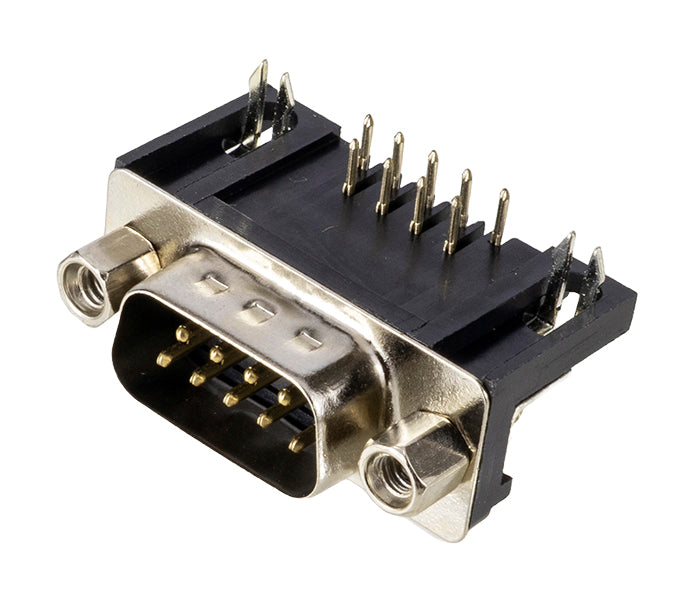

| DBPN2M-09 | 9-Way / Male / 10.3mm |

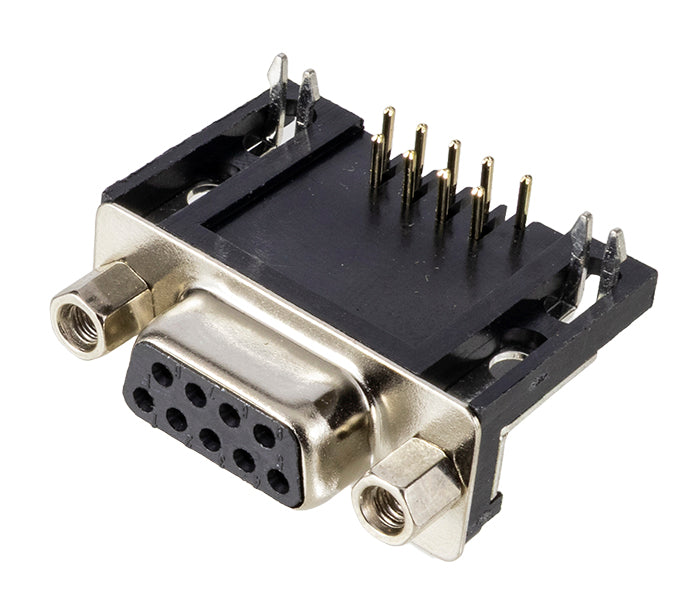

| DBPN3F-09 | 9-Way / Female / 14.99mm |

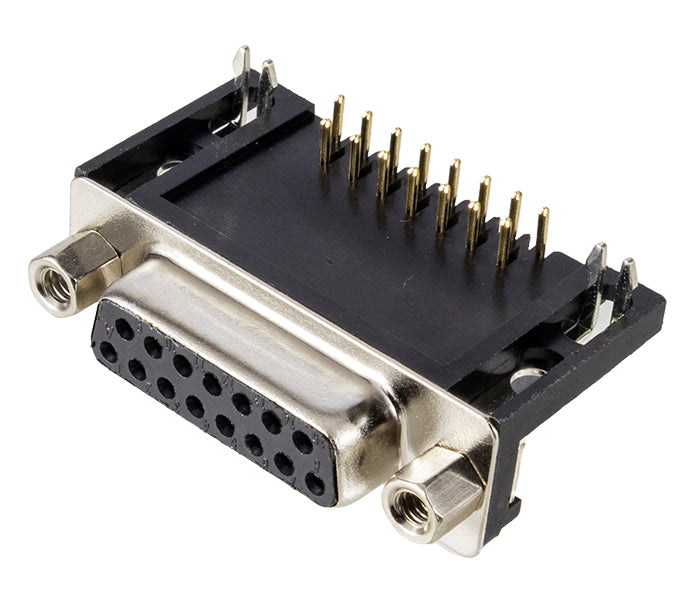

| DBPN3F-15 | 15-Way / Female / 14.99mm |

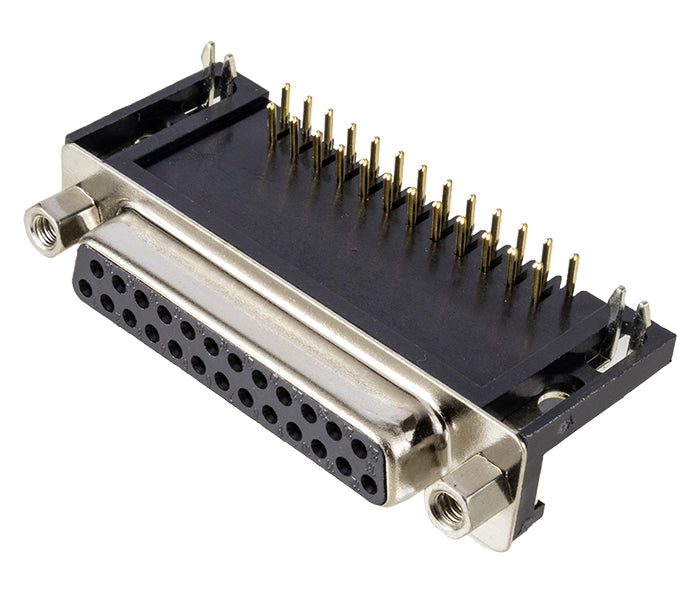

| DBPN3F-25 | 25-Way / Female / 14.99mm |

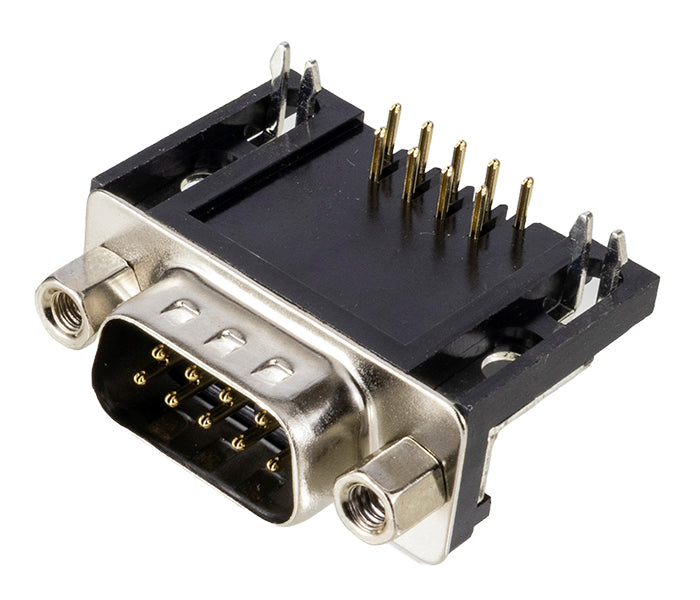

| DBPN3M-09 | 9-Way / Male / 14.99mm |

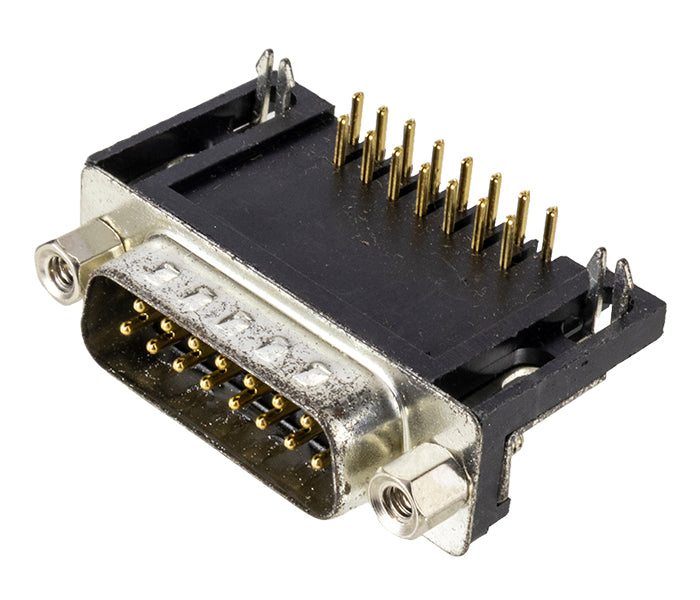

| DBPN3M-15 | 15-Way / Male / 14.99mm |

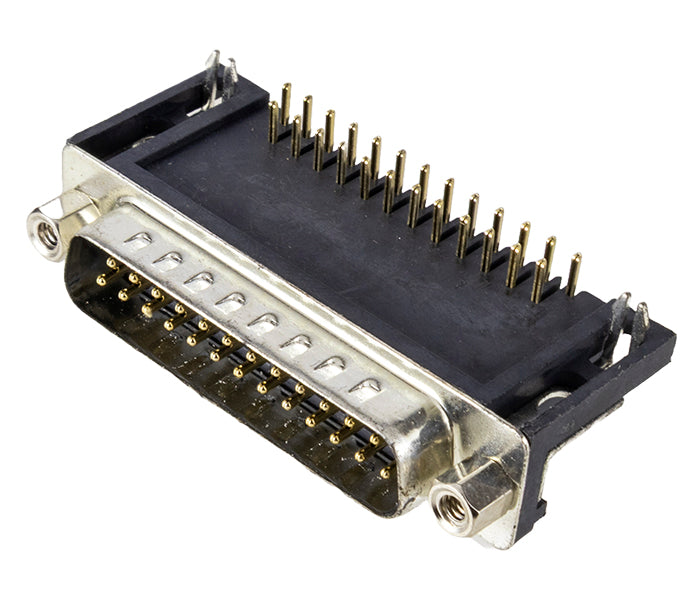

| DBPN3M-25 | 25-Way / Male / 14.99mm |
General specifications
General specifications
| Maximum current | 5 A |
| Maximum voltage | 125 VAC / VDC (VAC / VDC) |
| Max. initial contact resistance | 15 mΩ |
| Min. insulation resistance | 3000 MΩ (500 VDC) |
| Dielectric strength | 1000 VAC (1 minuto) |
| Operating temperature | -55°C ~ +105°C |
| Insulator material | Glass-fiber reinforced PBT UL 94V-0 |
| Contact material | Gold-plated brass |
| Terminals | Tin-plated brass |
| Housing material | Zinc-plated steel |
| Dielectric color | White |
