Shunt Trip Coil
CÓD: DCM-ST1250-220
Description
Description

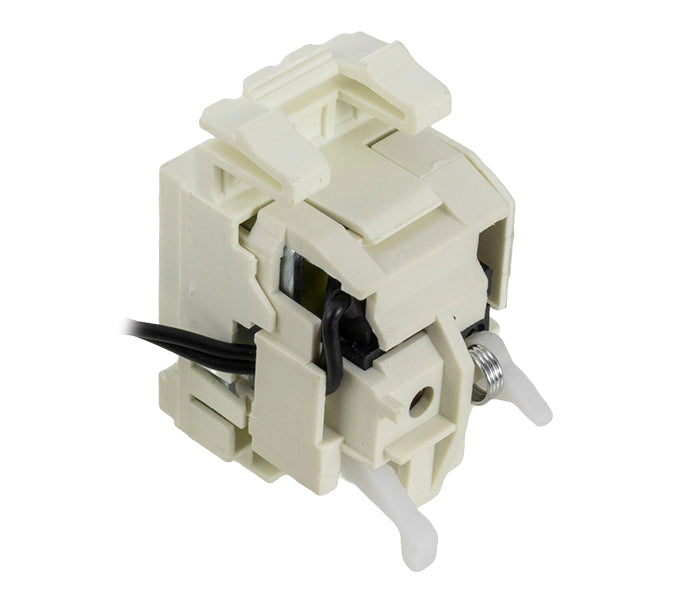

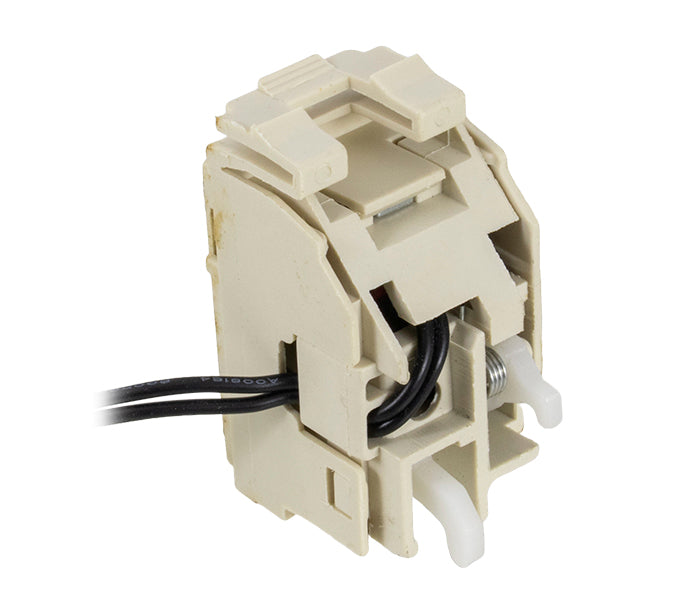

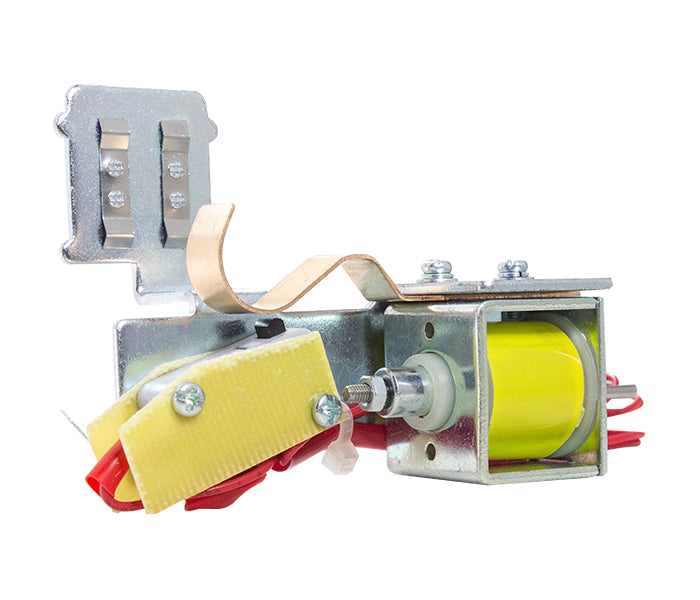

The DCM (ST) shunt trip is an internal accessory used for remote circuit breaker tripping, allowing it to open in control or emergency situations. Compatible with various models in the line, it operates with 220 VAC power. Its right-side installation ensures practicality, making it a reliable solution for electrical protection and automation systems.
- Applicable to DCM100S, 250S, 400S, 630S/800S, and 1250S models
- 220 VAC power supply, according to line specifications
- Right-side installation, facilitating integration into panels
- Internal accessory for remote circuit breaker tripping
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| DCM-ST1250-220 | DCM250 |
| DCM-ST250-220 | DCM100 |
| DCM-ST100-220 | DCM630/800 |
