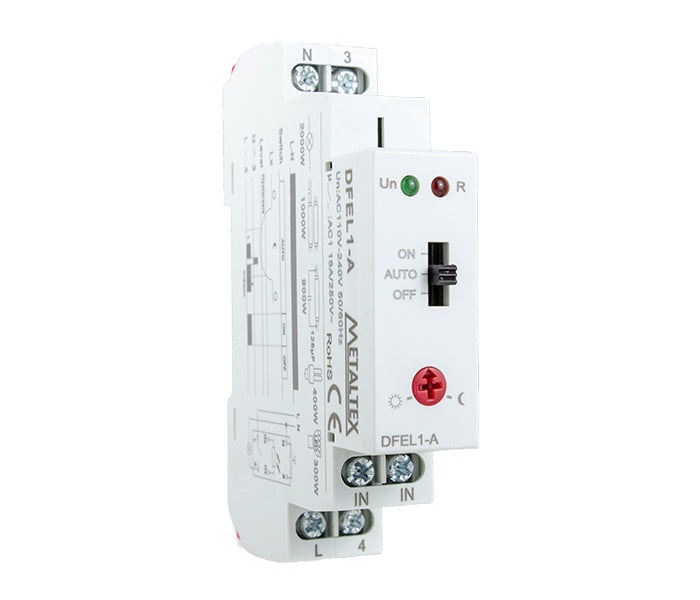

Photocell Relay DFEL

CÓD: DFEL1-A

Description

DFEL photoelectric relay, developed for automatic lighting activation based on ambient light. Ideal for outdoor applications and public or industrial lighting systems, it ensures energy savings and automatic operation.

  • Automatic load activation based on light level
  • Input for manual inhibition/control of operation
  • Output with reversible relay (SPDT) up to 16A
  • Wide power supply (110 to 240 VAC) and DIN rail mounting

General specifications
ModelDFEL1-A
Code of the sensorDFEL-S (Vendido separadamente)
StandardEN 60255-1
Power terminalsL - N
Power supply110 ~ 240VAC 50/60Hz
Supply tolerance-15% / +10%
Consumption2VA (max)
Power-on indicationGreen LED
Range of luminosidade1 ~ 100Lx
Operating modesON-AUTO-OFF
Tolerance of the sensor±35%
Delay time2 min
Length of the cable of the sensor50m max.
Output1 changeover (SPDT) relay
Contact rating16A - AC1
Switching voltage (max.)250VAC / 24VDC / 250VAC / 24VDC
Output indicationRed LED
Mechanical life10 x 106 operations
Electrical life (AC1)106 operations
Operating temperature-20 ~ 55 °C
Storage temperature-35 ~ 75 °C
Wire applicable(mm²)1x2.5 or 2x1.5 - Applicable cable
Applicable cable1x2.5 (AWG 12)
MountingFastening em rail DIN / DIN rail mounting
Degree of protectionIP40 (front), IP20 (terminals)
Overvoltage categoryIII
Pollution degree2
Dimensions90 x 18 x 64mm
