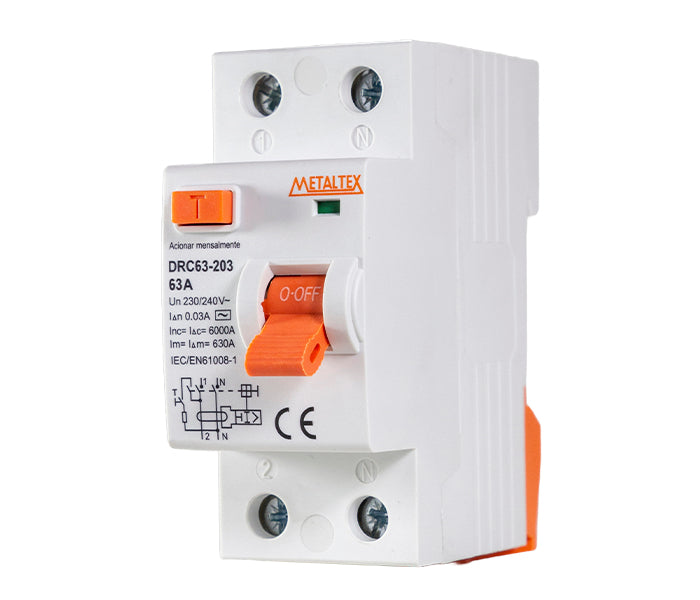

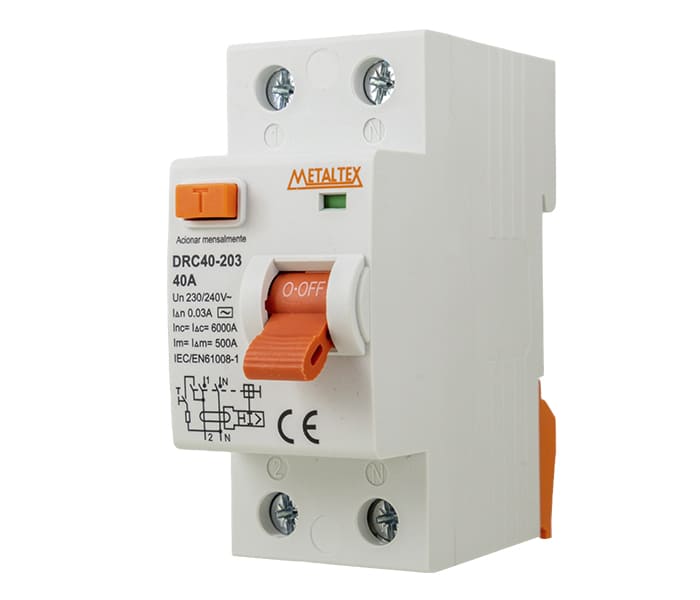

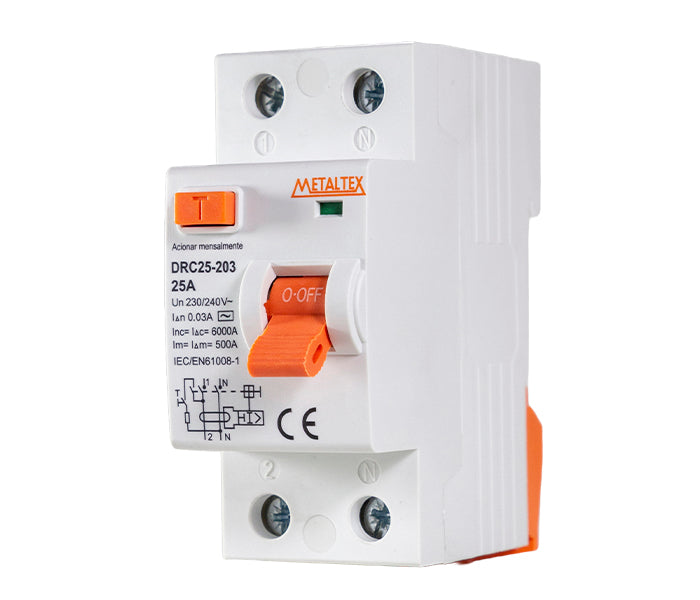

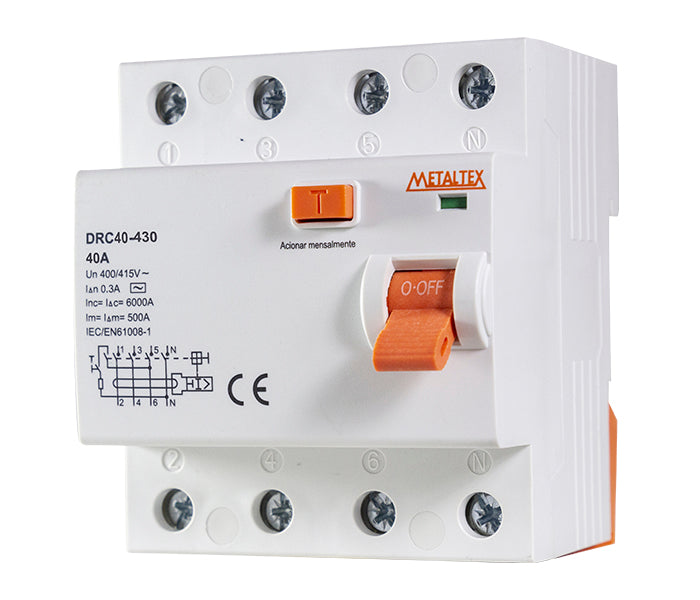

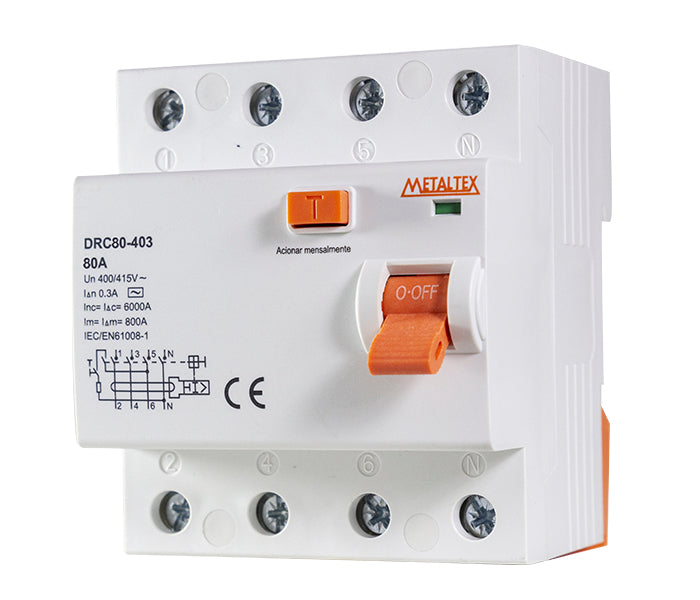

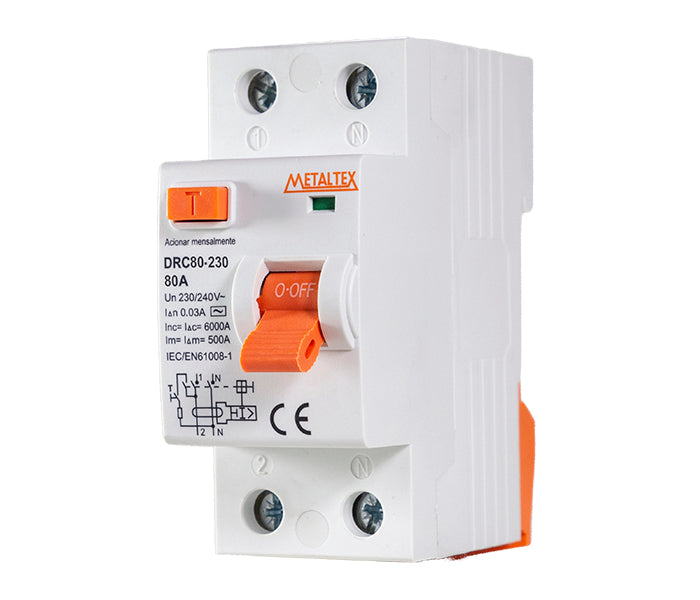

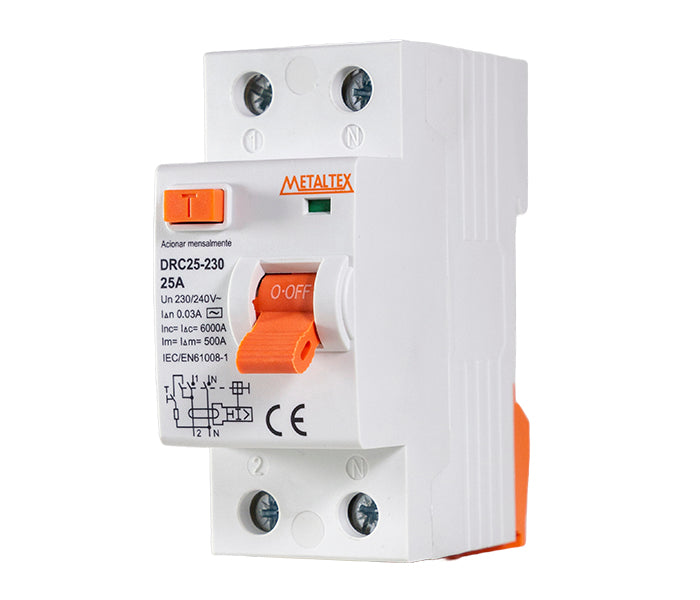

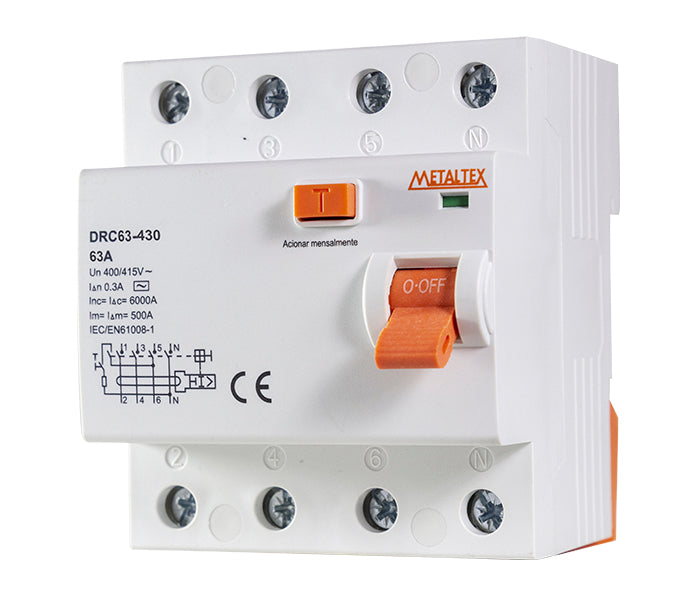

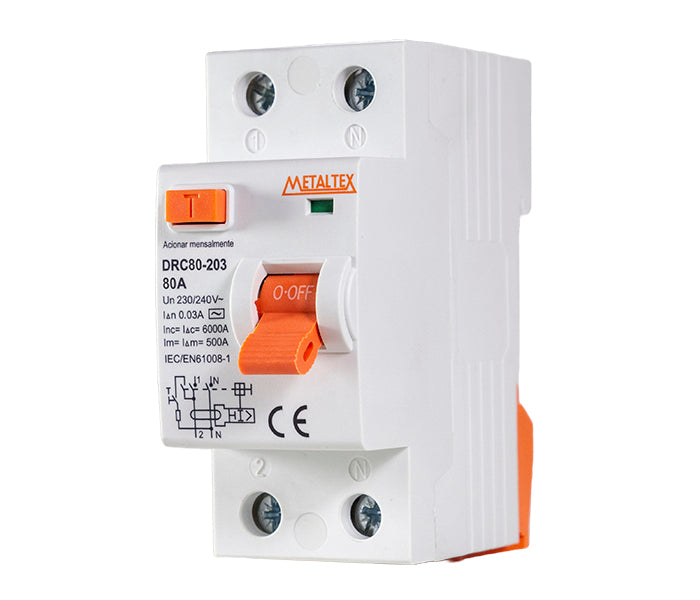

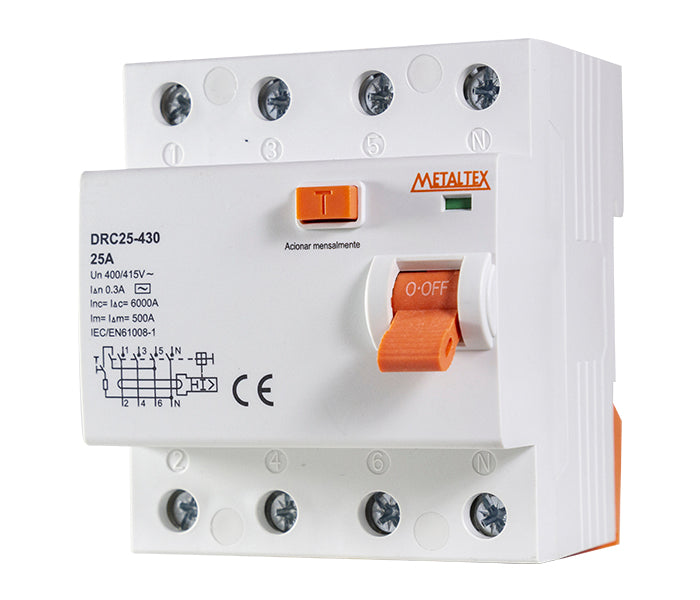

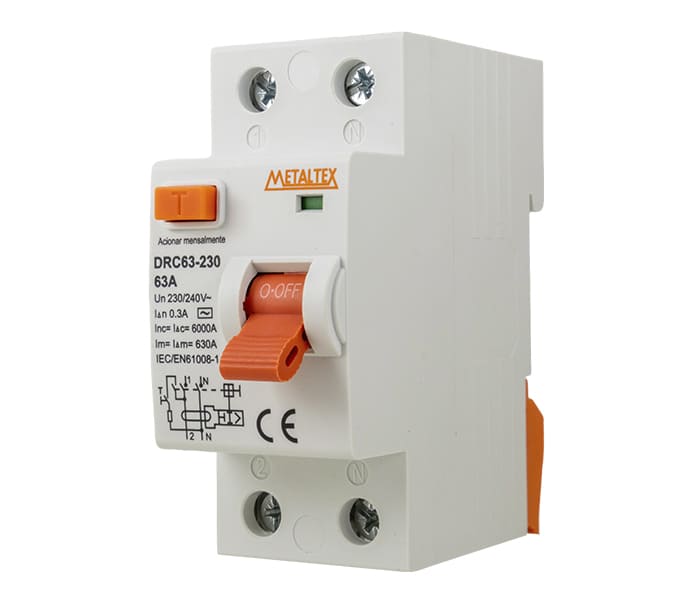

DRC Residual Current Circuit Breaker

Description

Residual Current Device (RCD) for protection against electric shock and current leakage. Suitable for residential, commercial, and industrial applications. Available in double-pole and four-pole versions with different current ratings and sensitivities. Ensures greater safety for people and installations.

  • Protection against current leakage
  • Sensitivity of 30 mA or 300 mA
  • Double-pole and four-pole versions
  • Current ratings from 25A to 80A

Select the options below

CÓD: DRC25-203

General specifications
ModelsDRCDRD
Poles2 or 42 or 4
Rated current (In)25, 40, 63 or 80 A100 or 125 A
Dielectric strength2.5 kV2 kV
Applicable cable25 mm²50 mm²
Weight250 g330 g
Rated making and breaking capacity500 (In < 50 A) or 10 (In > 50 A)
StandardsIEC/EN61008-1
ClassAC
Sensibilidade nominal (IΔn)30 mA or 300 mA
Time of opening (IΔn)≤ 0.1 seg
Voltage rated / Rede of voltage (Ue)1P+N: 230/240 VAC; 3P+N: 400/415 VAC
Frequency rated50/60 Hz
Rated short-circuit current (IΔc)6 kA
Fuse external SCPD6000
Voltage rated of impulso (1.5/50) (Uimp)4000 V
Electrical life2,000 operations
Mechanical life4,000 operations
Current fault indicatorIncluded
Degree of protectionIP20
Operating temperature-25 ~ 40 °C - Max. 95% humidity
Storage temperature-25°C ~ 70 °C
Connection typeCable and/or pin-type connection comb
Screw tightening torque2.5 Nm
MountingDIN rail TS35
Pollution degree2
