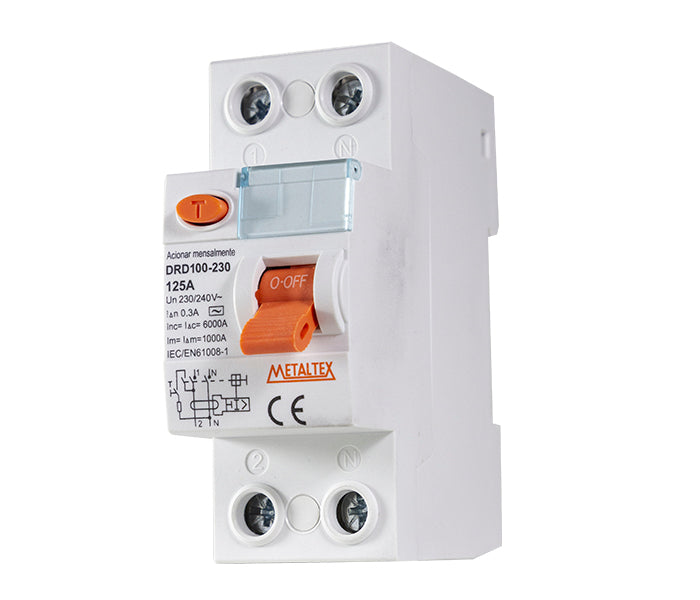

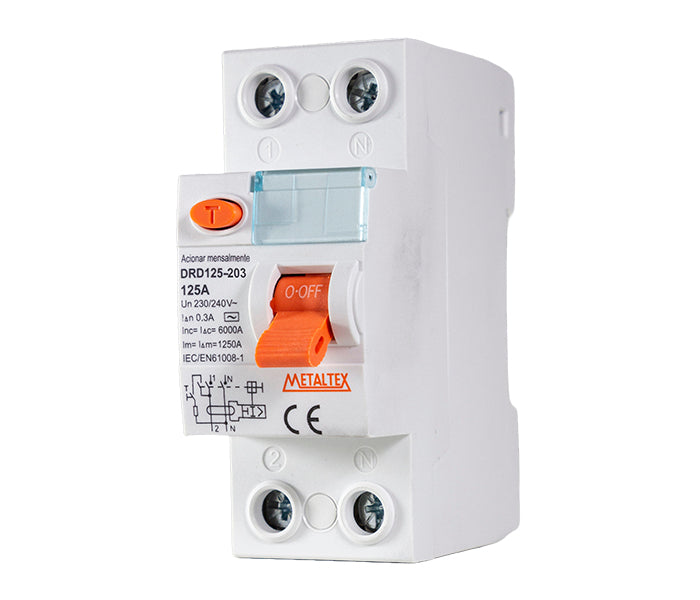

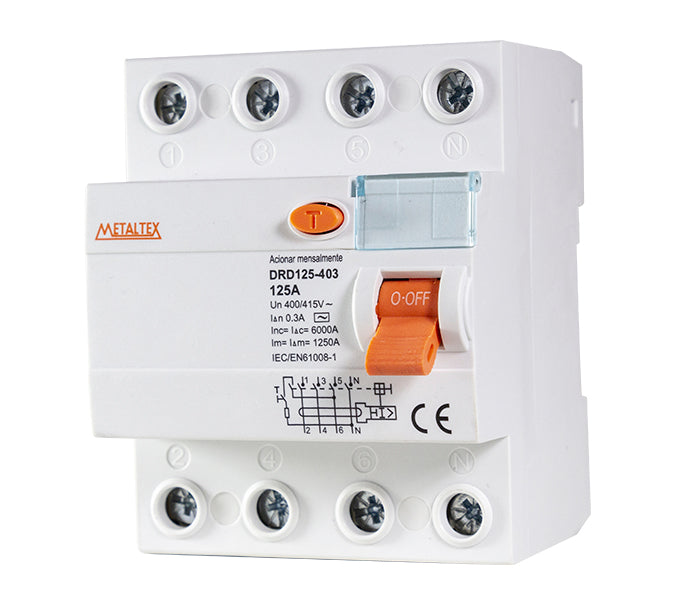

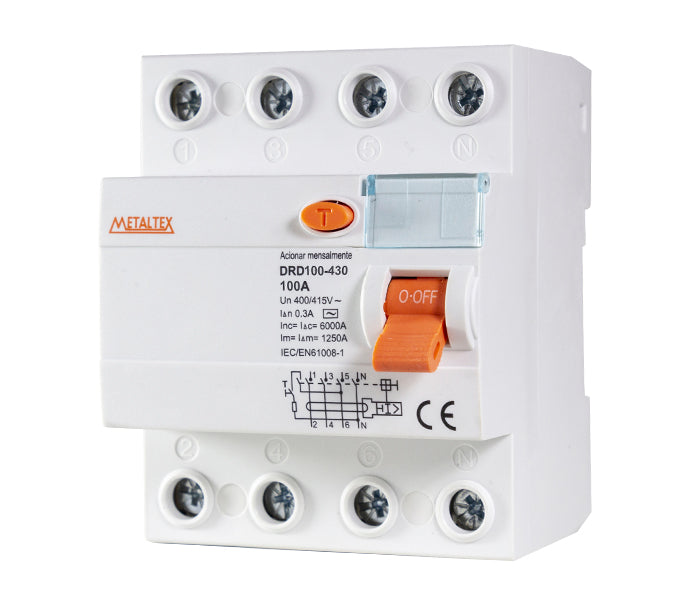

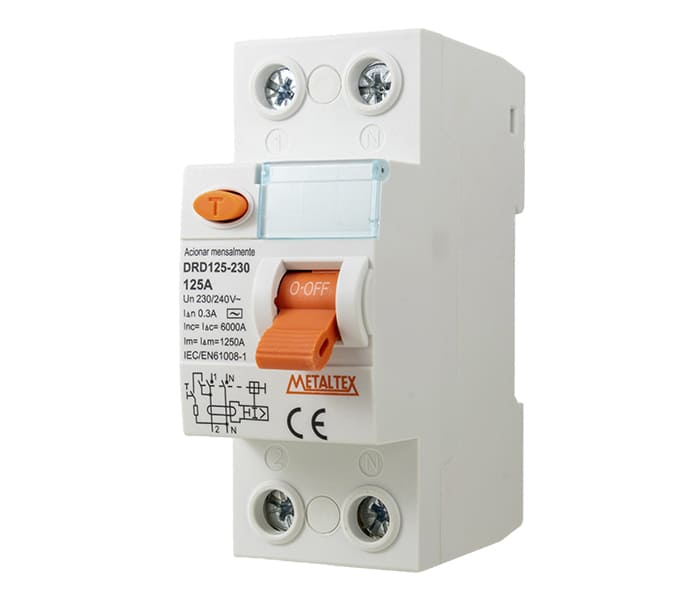

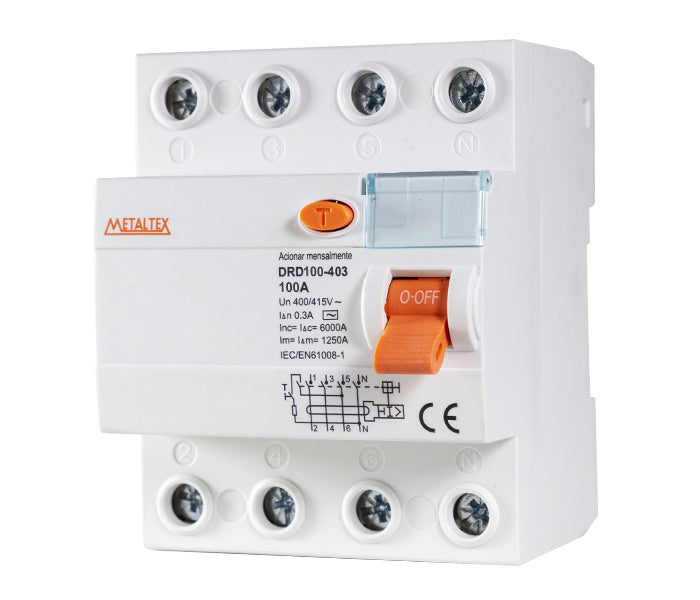

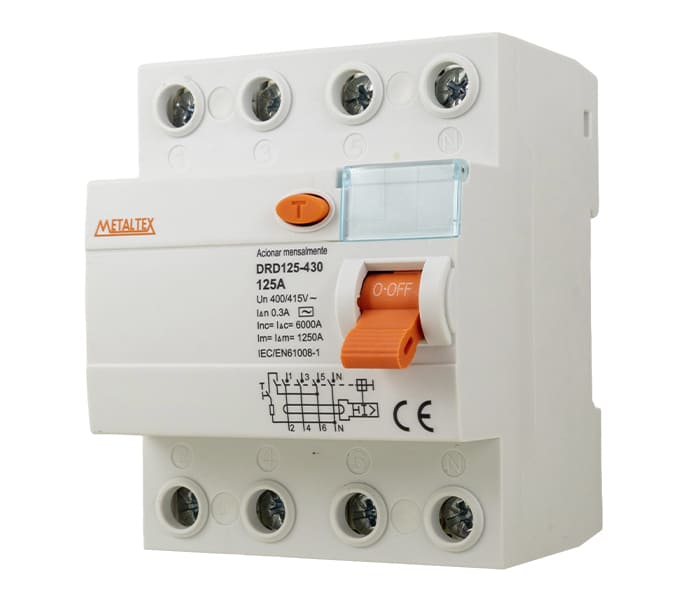

Residual Current Device

CÓD: DRD100-203

Description

Residual Current Device (RCD) for protection against current leakage in higher capacity electrical installations. Suitable for industrial and commercial applications, ensuring the safety of people and equipment. Available in two-pole and four-pole versions. Offers high reliability and performance.

  • Protection against earth leakage
  • Sensitivity of 30 mA or 300 mA
  • Two-pole and four-pole versions
  • Currents of 100A and 125A

Select the options below

General specifications
ModelsDRCDRD
Poles2 or 42 or 4
Rated current (In)25, 40, 63 or 80 A100 or 125 A
Dielectric strength2.5 kV2 kV
Applicable cable25 mm²50 mm²
Weight250 g330 g
Rated making and breaking capacity500 (In < 50 A) or 10 (In > 50 A)
StandardsIEC/EN61008-1
ClassAC
Sensibilidade nominal (IΔn)30 mA or 300 mA
Time of opening (IΔn)≤ 0.1 seg
Voltage rated / Rede of voltage (Ue)1P+N: 230/240 VAC; 3P+N: 400/415 VAC
Frequency rated50/60 Hz
Rated short-circuit current (IΔc)6 kA
Fuse external SCPD6000
Voltage rated of impulso (1.5/50) (Uimp)4000 V
Electrical life2,000 operations
Mechanical life4,000 operations
Current fault indicatorIncluded
Degree of protectionIP20
Operating temperature-25 ~ 40 °C - Max. 95% humidity
Storage temperature-25°C ~ 70 °C
Connection typeCable and/or pin-type connection comb
Screw tightening torque2.5 Nm
MountingDIN rail TS35
Pollution degree2
