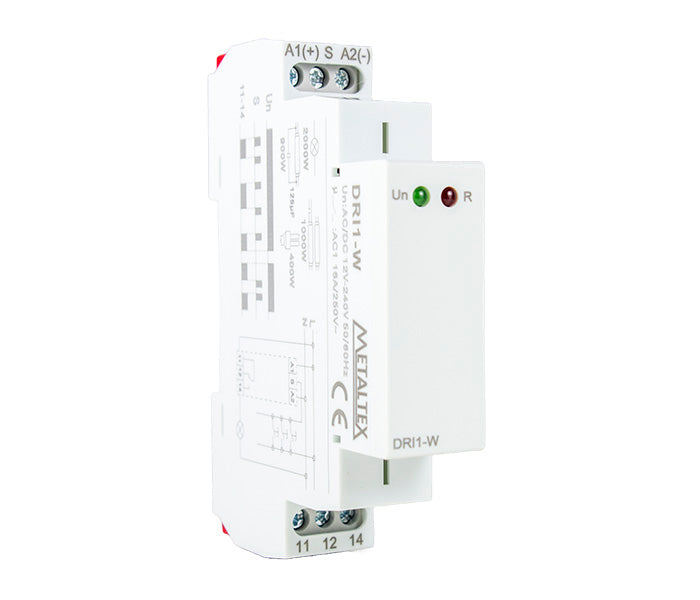

Electronic Latching Relay DRI
CÓD: DRI1-W
Description
Description
Electronic impulse relay with memory, DRI model, designed for controlling electrical loads with state alternation with each pulse. Ideal for applications such as lighting, it maintains the last state even after power failure, ensuring practicality and reliability.
- State alternation with each input pulse (on/off)
- Memorization of the last state in case of power failure
- Output with reversible relay (SPDT) up to 16A
- DIN rail mounting
General specifications
General specifications
| Normas | EN 61810-1 |
| Power terminals | A1 - A2 |
| Power supply | 12 ~ 240 VAC/VDC (50/60Hz) |
| Supply tolerance | -15% ~ +10% |
| Consumption | CA/AC: 0.9 ~ 3VA // CC/DC: 0.05 ~ 1.2W |
| Terminals of control | A1 - S |
| Time minimum of pulse | 25ms |
| Time of reset maximum | 200ms |
| Output | 1 changeover (SPDT) relay |
| Maximum switching current | 16A - AC1 |
| Maximum switching voltage | 250 VAC / 24 VDC |
| Mechanical life | 10,000,000 operations |
| Life electrical | 100,000 operations |
| Temperature coefficient | 0.05% / °C, ta/at = 20 °C |
| Operating temperature | -20°C ~ +55°C |
| Storage temperature | -35°C ~ +75°C |
| Mounting | DIN rail mounting |
| Degree of protection | IP40/ IP20 |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum gauge (mm²) | Wire applicable: 1 x 2.5 or 2 x 1.5 - Cable applicable: 1 x 2.5 (AWG 12) |
| Dimensions (mm) | 90 x 18 x 64 |
| Weight | 58g |
