DTD Off Delay Timer
CÓD: DTD1-W
Description
Description

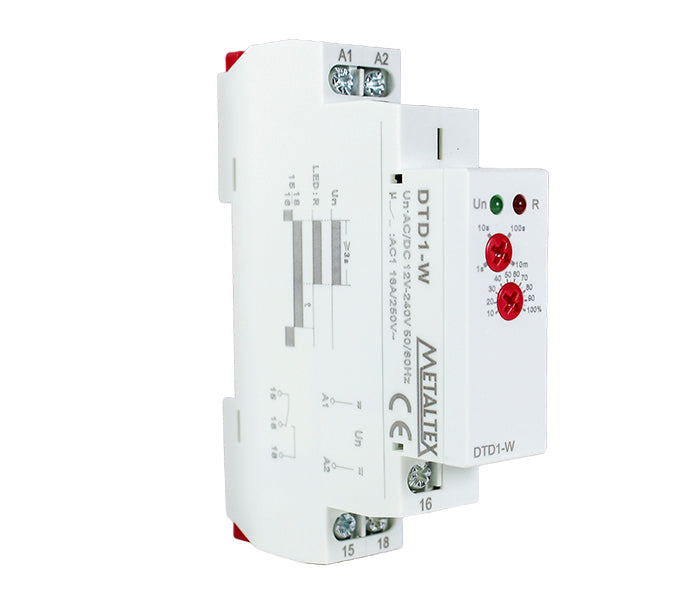

The DTD series analog timer is a time-delay relay with an off-delay function, designed for industrial applications that require maintaining the output state for a period after power is removed. Compact and reliable, it is ideal for systems such as emergency lighting, automatic doors, and equipment that needs a power-off delay.
- Off-delay function, keeping the output active after power-off
- Time adjustment via front potentiometer with a range of 0.1 s to 10 minutes
- Wide power supply from 12 to 240 VAC/VDC with DIN rail mounting
- Output with reversible (SPDT) relay up to 16A and LED indication
General specifications
General specifications
| Standards | IEC/EN 61812-1, IEC/EN 61010-1 |
| Power terminals | A1 - A2 |
| Power supply | 12 ~ 240 VAC/VDC / VAC/VDC (50/60Hz) |
| Supply tolerance | -15% ~ +10% |
| Consumption | CA/AC: 0.7 ~ 3VA // CC/DC: 0.5 ~ 1.7W |
| Scale of time | 0.1s ~ 10min |
| Measurement error | 5% - Adjustment mecânico |
| Time minimum of alimentação | 200ms |
| Output | 1 changeover (SPDT) relay |
| Maximum switching current | 16A - AC1 |
| Maximum switching voltage | 250VAC / 24VDC |
| Power-on indication | Green LED |
| Output indication | LED vermelho LED |
| Mechanical life | 10,000,000 operations |
| Life electrical(AC1) | 1,000,000 operations |
| Time of reset maximum | 200ms |
| Temperature coefficient | 0.05% / °C, ta/at = 20 °C |
| Operating temperature | -20°C ~ +55 °C |
| Storage temperature | -35°C ~ +75°C |
| Mounting | DIN rail mounting |
| Degree of protection | IP40 (Front) / IP20 (Terminals) |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum gauge (mm²) | Applicable wire: 1 x 2.5 or 2 x 1.5 - Applicable cable: 1x 2.5 (AWG 12) |
| Dimensions (mm) | 90 x 18 x 64 |
| Weight | 66g |
