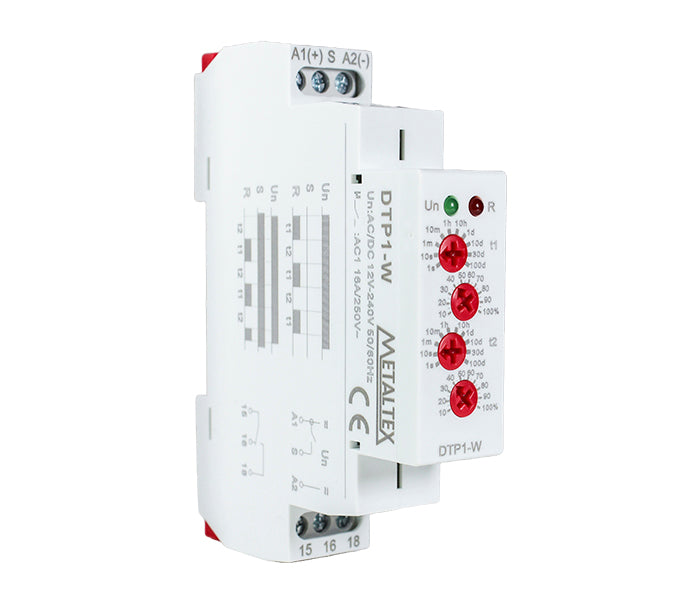

Analog 2-Time Cycle Timer Relay DTP
CÓD: DTP1-W
Description
Description
The DTP series analog timer is an asymmetrical cyclic timer relay, developed for applications that require automatic on/off cycles with independent timings. Versatile and robust, it is ideal for process automation such as pumps, fans, lighting, and repetitive systems.
- Cyclic function with two independent timings (adjustable ON and OFF)
- Wide timing range from 0.1 seconds up to 2400 hours (100 days)
- Universal power supply from 12 to 240 VAC/VDC
- Output with reversible relay (SPDT) up to 16A and DIN rail mounting
General specifications
General specifications
| Model | DTP1-W |
|---|---|
| Standards | IEC/EN61812-1, IEC / EN61010-1 |
| Function | Timer assimétrico cíclico 2 tempos |
| Power terminals | A1 - A2 |
| Power supply | 12 ~ 240VDC / VAC / VDC / VAC |
| Operating frequency | 50 / 60 Hz |
| Supply tolerance | -15% / +10% |
| Consumption | CA / AC: 0.7 ~ 3VA / CC / DC: 0.5 ~ 1.7W |
| Power-on indication | Green LED |
| Time adjustment | 0.1s ~ 2400hs (100 dias) |
| Adjustment error | 5% (mechanical adjustment) |
| Reset time | max. 200ms |
| Temperature coefficient | 0.05% / °C, ta= 20 °C |
| Output | 1 changeover (SPDT) relay |
| Contact rating | 16A - AC1 |
| Switching voltage (max.) | 250VAC / 24VDC / 250VAC / 24VDC |
| Output indication | Red LED |
| Mechanical life | 10 x 10⁶ operations |
| Electrical life (AC1) | 10⁵ operations |
| Operating temperature | -20 ~ 55 °C |
| Storage temperature | -35 ~ 75 °C |
| Mounting | DIN rail mounting |
| Degree of protection | IP44 (front) IP20 (terminals) |
| Overvoltage category | III |
| Pollution degree | 2 |
| Dimensions | 90 x 18 x 64mm |
