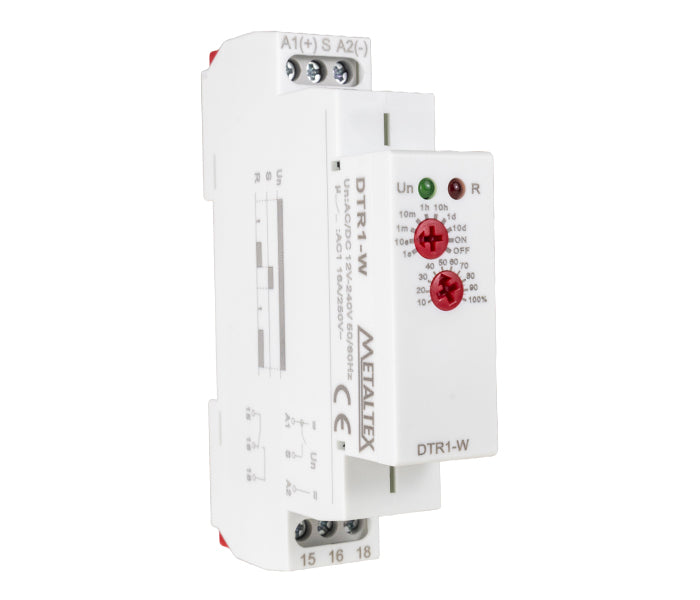

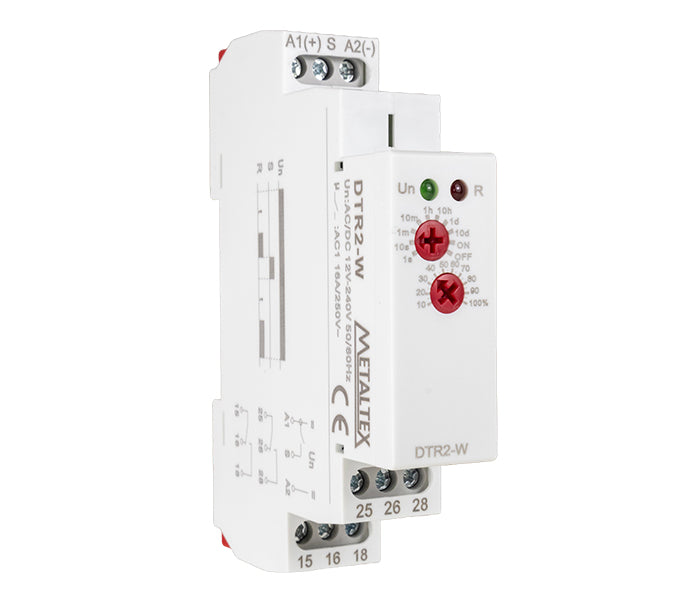

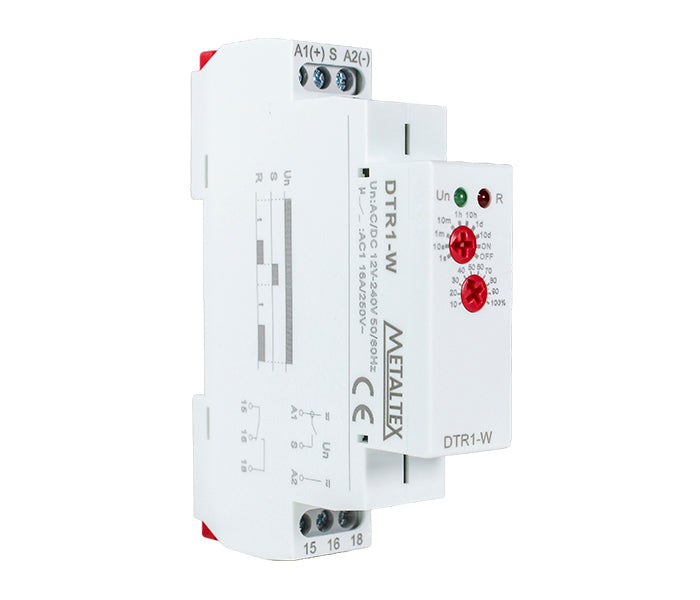

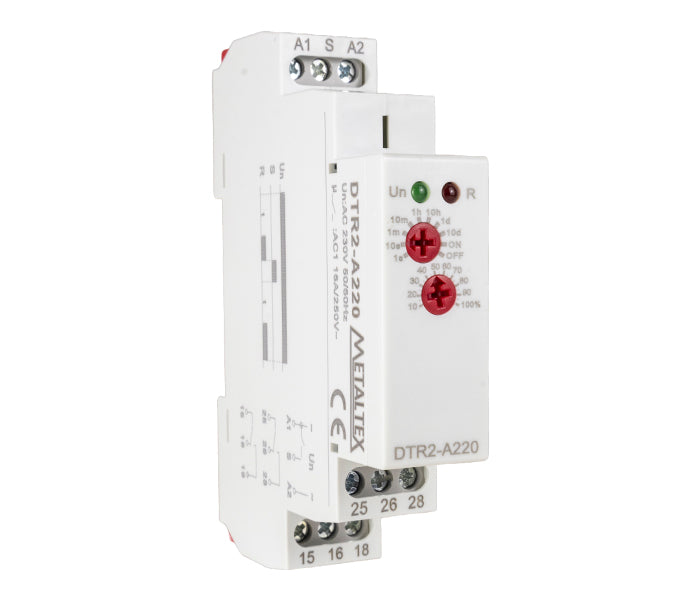

DTR Analog Delay on Energization Timer Relay

Description

Multi-scale analog timer for industrial applications, with wide adjustment range and high reliability. Ideal for time control in automated systems, meeting international standards.

  • 8 time ranges (0.1 s to 10 days)
  • Wide power supply: 12–240 VAC/VDC or 220 VAC
  • SPDT/DPDT relay outputs
  • Conforms to industrial IEC standards

Select the options below

CÓD: DTR1-A220

General specifications
ModelsDTR1-A220DTR2-A220DTR1-WDTR2-W
StandardsIEC/EN61812-1, IEC / EN61010-1
FunctionRetardo in the energization
Power terminalsA1 - A2
Power supply240VAC12 ~ 240VDC / VAC / VDC / VAC
Operating frequency50/60 Hz
Supply tolerance-15% / +10%
Consumo / Power consumptonAC: 0.7 ~ 3VA / DC: 0.5 ~ 1.7W
Power-on indicationGreen LED
Time adjustment0.1s ~ 10 dias, ON and OFF
Adjustment error5% (mechanical adjustment)
Reset timemax. 200ms
Temperature coefficient0.05% / °C, ta= 20 °C
Output1 changeover (SPDT) relayRelay 2 rev.1 changeover (SPDT) relayRelay 2 rev.
Contact rating16A - AC1
Switching voltage (max.)250VAC / 24VDC / 250VAC / 24VDC
Output indicationRed LED
Mechanical life10 x 10⁶ operations
Electrical life (AC1)10⁶ operations
Operating temperature-20 ~ 55 °C
Storage temperature-35 ~ 75 °C
MountingDIN rail mounting
Degree of protectionIP44 (front) IP20 (terminals)
Overvoltage categoryIII
Pollution degree2
Dimensions90 x 18 x 64mm
