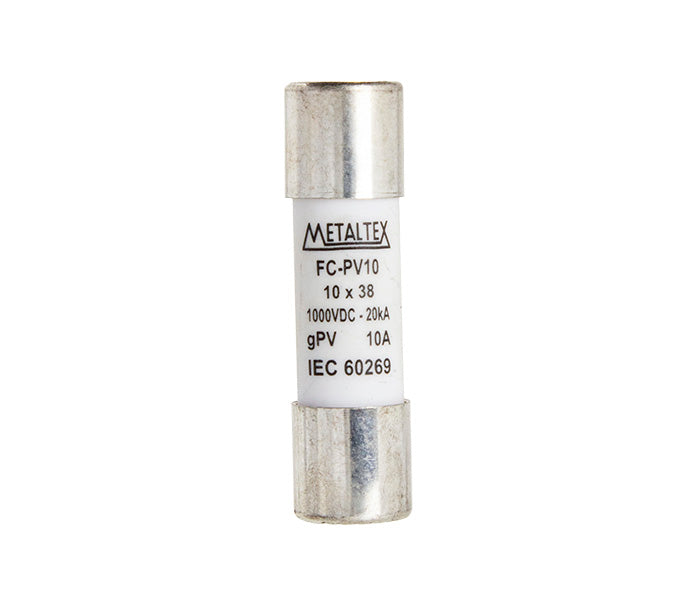

Photovoltaic Cylindrical Fuse FC-PV

CÓD: FC-PV10

Description

Cylindrical FC-PV fuse for photovoltaic applications, designed for circuit protection in direct current. Ideal for systems up to 1000VDC, ensuring safety against overcurrents. Compact and reliable, it complies with IEC standards. Suitable for use in solar installations.

  • Application in photovoltaic systems (DC)
  • Voltage up to 1000VDC
  • Currents from 10A to 25A
  • High breaking capacity (20kA)

Select the options below

General specifications
ModelFH-PV1
Rated current32A
Applicable fuse size10 x 38mm
Number of poles1
Max. fuse dissipation5W
Applicable cable1.5 ~ 25mm²
Rated voltage1000VDC
StandardIEC60269
