Limit Switch FM9
CÓD: FM9208
Description
Description
The FM9 series of limit switches consists of electromechanical devices designed for position detection and motion control in industrial machinery. Compact and easy to install, they offer high precision and a long service life, making them ideal for applications in automation and process control.
- High precision and long mechanical life (up to 10 million operations)
- Fiberglass-reinforced plastic body
- Positive break contacts (1NO + 1NC)
- IP65 protection rating
Select the options below
Code list
Code list
| Code | Description |
|---|---|

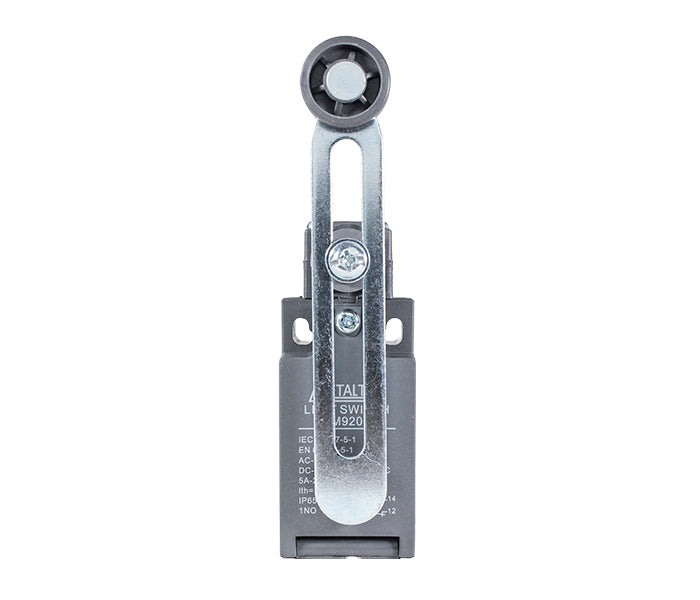

| FM9208 | Adjustable Roller Lever |
| FM9269 | Flexible Wire |

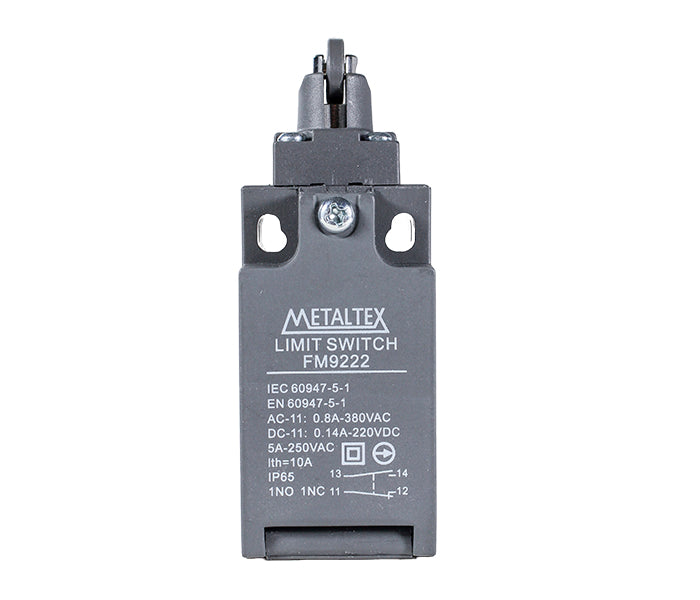

| FM9222 | 90° Roller |
General specifications
General specifications
| Max. switching voltage | 380VAC - 220VDC |
| Operating frequency | 15 mΩ (inicial) |
| Contact resistance | ≤25 mΩ (inicial) |
| Insulation resistance | 100 MΩ min. (a 500VDC) |
| Dielectric strength | 1,000 VAC between terminals não contínuos 1,500 VAC between cada terminal and terra |
| Vibration | 10 ~ 55Hz; 1.5mm dupla amplitude |
| Impact | 300m/s² (approx. 30G) |
| Operating temperature | -10 ~ 70°C |
| Ambient humidity | 95% RH max. |
| Weight | 130 ~ 190g |
| Mechanical life | 10 x 106 operations min. |
| Electrical life | 500 x 103 operations min. |
| Contact rating | 5A-250VAC carga resistiva Ac11: 0.8A-380VAC DC11: 0.14A-220VDC |
| Contact arrangement | 1NO + 1NC (NC with positive break) |
| Degree of protection | IP65 |
| Body material | Glass-fiber reinforced plastic |
| Cable gland | * M20 |
