Panasonic FP0H I/O Expansion
Description
Description

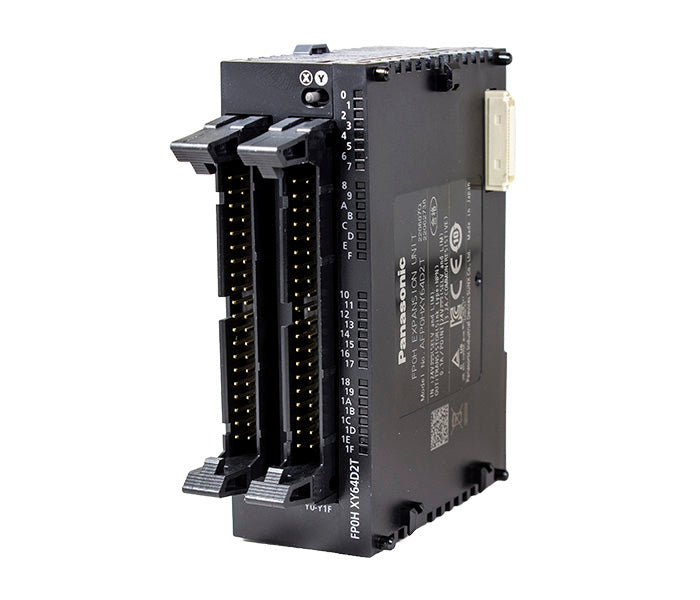

The AFP0HXY64D2T and AFP0HXY64D2P are digital input and output expansion modules for FP0H series PLCs, which expand the controller with 64 points in a single compact module: 32 inputs at 24VDC and 32 transistor outputs. The inputs accept positive or negative (+/-) common polarity, and the outputs have short-circuit protection and thermal protection. Both models feature photocoupler isolation, operating mode indicator LEDs and a 40-pin MIL connector, which makes wiring easier and reduces installation time. They differ in output type: the AFP0HXY64D2T has NPN (sink) transistor outputs, for 5 to 24VDC loads, and the AFP0HXY64D2P has PNP (source) transistor outputs, for 24VDC loads. In both, each output supports up to 0.1A. At only 30mm wide, the module fits in compact panels and is suitable for machines and equipment that need more input and output points.
- 32 inputs and 32 outputs at 24VDC
- NPN or PNP transistor outputs
- 40-pin MIL connector
- Short-circuit protection
Select the options below
CÓD: AFP0HXY64D2P
Code list
Code list
| Code | Description |
|---|---|
| AFP0HXY64D2P | PNP |
| AFP0HXY64D2T | NPN |
