Actuator for FS93 Switch
CÓD: FS93-C1
Description
Description
FS93 safety switch actuators are accessories used in conjunction with interlocking switches, responsible for activating the safety mechanism when doors or guards are closed. Available in different shapes, they allow adaptation to various installation configurations in industrial machinery and equipment.
- Compatible with the FS93 safety switch series
- Available in flat, 90°, and adjustable versions for different applications
- Robust metal or plastic construction for increased durability
Select the options below
Code list
Code list
| Code | Description |
|---|---|

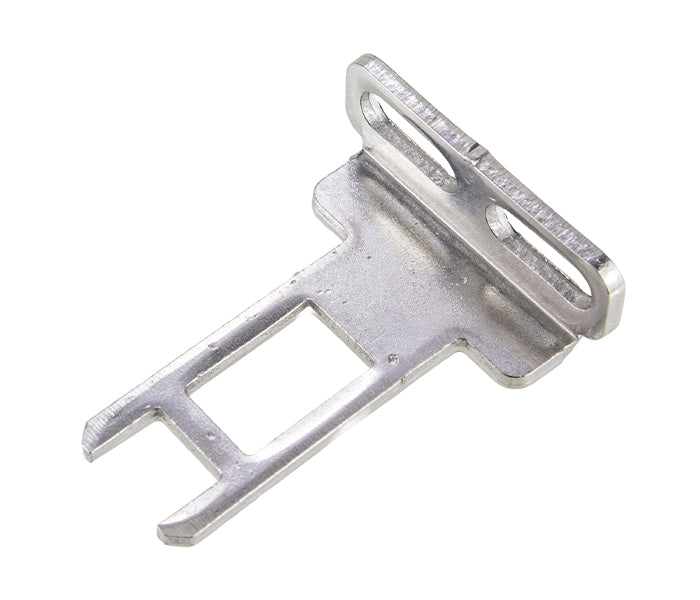

| FS93-C1 | Plan |

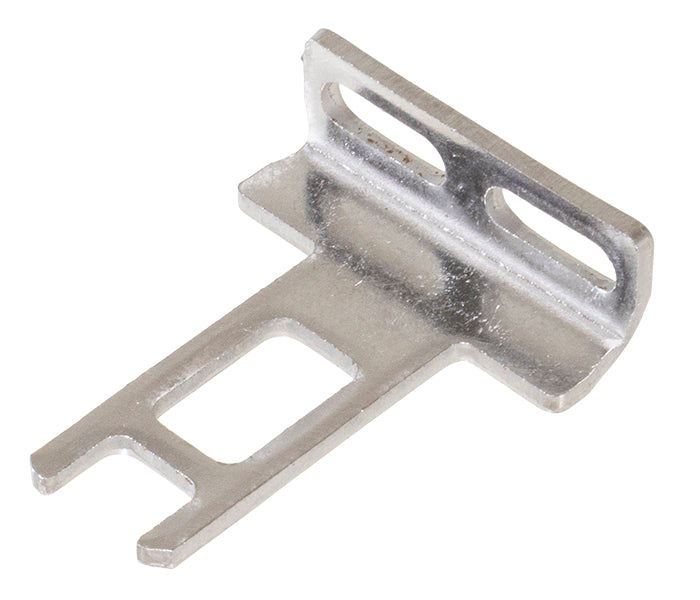

| FS93-C2 | 90 Degrees |

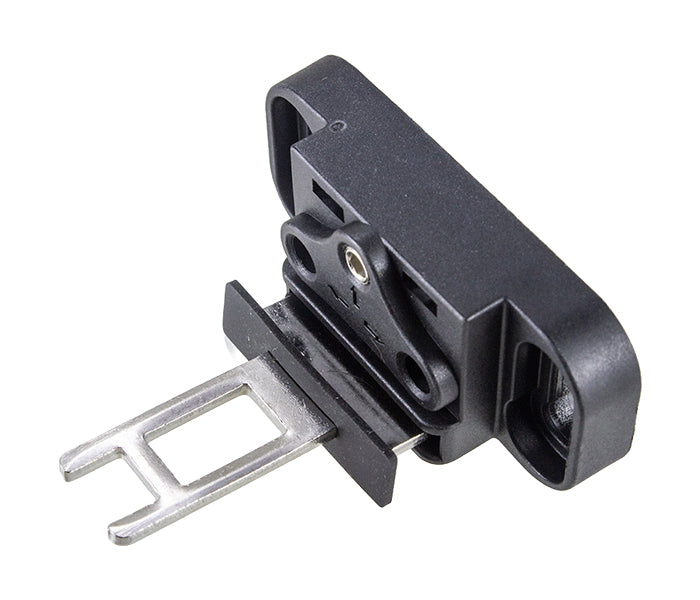

| FS93-C3 | Double Adjustment |

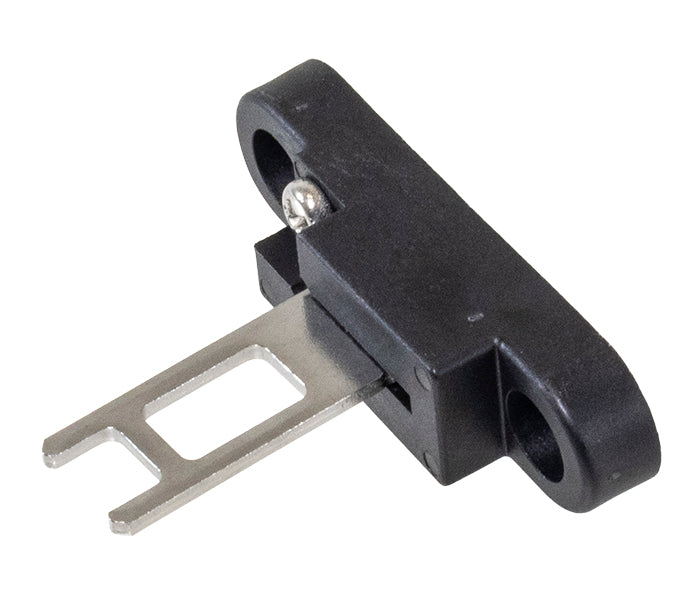

| FS93-C4 | Simple Adjustment |
General specifications
General specifications
| Model | FS93-2B | FS93-2B1A |
|---|---|---|
| Contact arrangement | 2NF / 2NC | 2NF + 1NA / 2NC + 1NO |
| Standard | EN60947-5-1, UL508, EN50047, EN1088 | |
| Positive break | ➜ contato NF | |
| Contact rating | AC15 3A - 240VAC carga resistiva | |
| Conduction current (Ith) | 10A max. | |
| Insulation voltage Ui | 600V | |
| Mechanical life | 10 x 10⁶ operations min. | |
| Electrical life | 150 x 10³ operations min. | |
| Operating frequency | 2 operations per second max. | |
| Contact resistance | 25 mΩ max. (inicial) | |
| Insulation resistance | 100MΩ min. (a 500VDC) | |
| Dielectric strength | 2,500VAC - 1 minuto | |
| Protection against electric shock | Class II - double insulation | |
| Vibration | 10 ~ 55Hz | |
| Operating temperature | -25 ~ 80°C | |
| Degree of protection | IP65 | |
| Pollution degree | 3 | |
| Body material | Glass-fiber reinforced polyester | |
| Material of the actuator | Steel stainless | |
| Cable gland | * PG13.5 | |
