Safety Limit Switch FS95
CÓD: FS9569
Description
Description
The FS95 series of safety switches consists of interlocking devices designed to ensure the protection of operators and machines in industrial environments. Suitable for access control on doors and guards, they ensure circuit interruption in risky situations, contributing to system safety.
- TÜV certification in accordance with IEC/EN 60947-5-1, UL508, and EN1088 standards
- Positive break contacts with a configuration of 2 NC (safety) contacts and auxiliary NO contacts
- IP67 protection rating
- Various actuator and lever options to adapt to different industrial applications
Select the options below
Code list
Code list
| Code | Description |
|---|---|

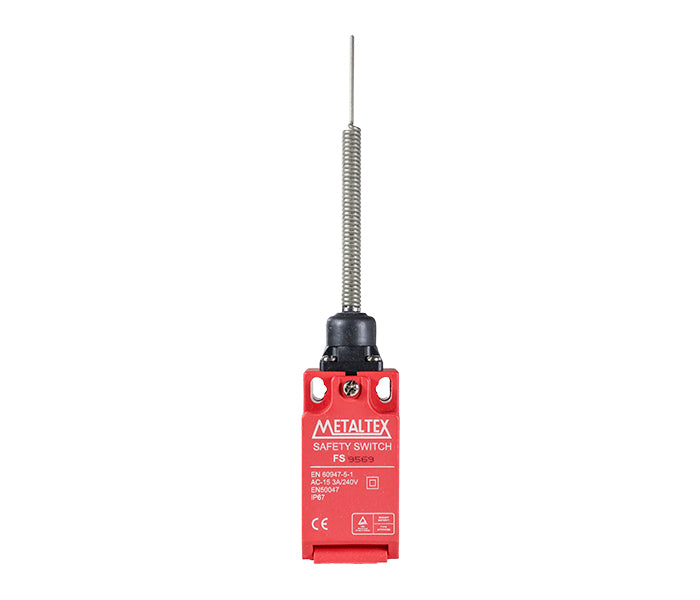

| FS9569 | Rod |

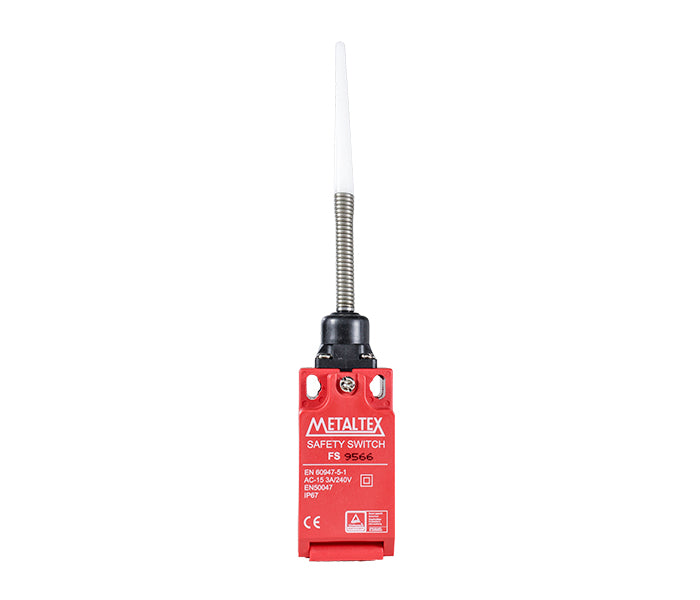

| FS9566 | Cotton Swab |

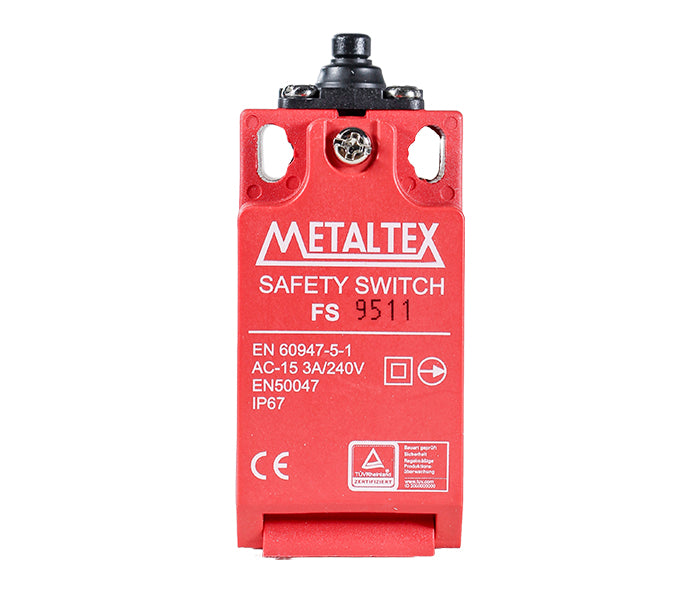

| FS9511 | Pin |

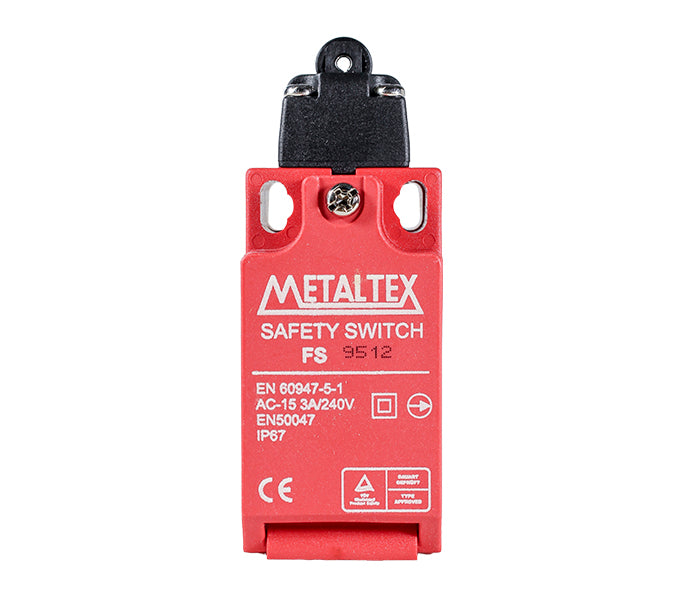

| FS9512 | Pin with Roller |

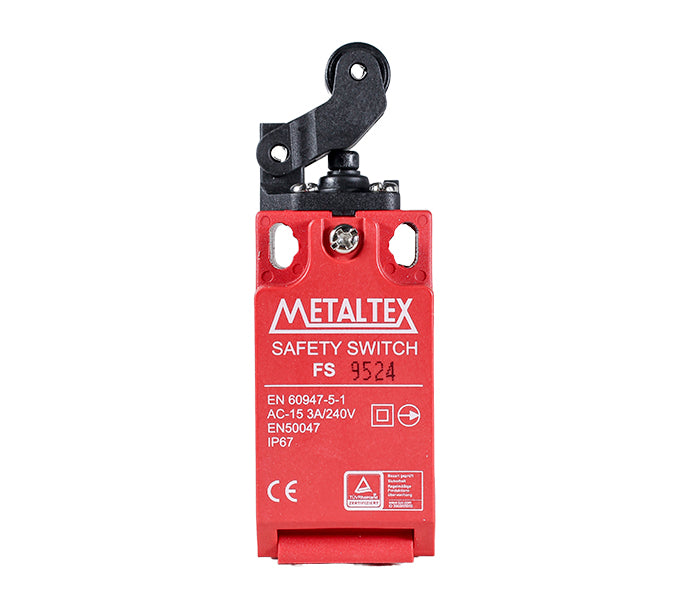

| FS9524 | Roller |

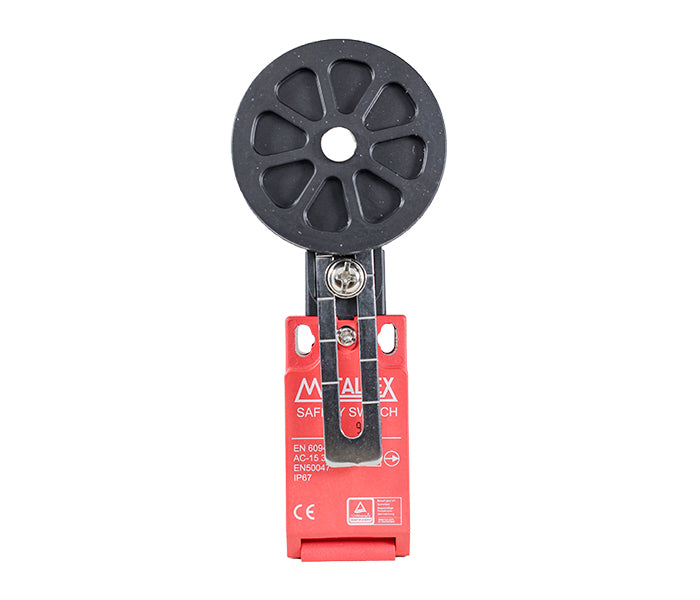

| FS9509 | Adjustable Rubber Roller |

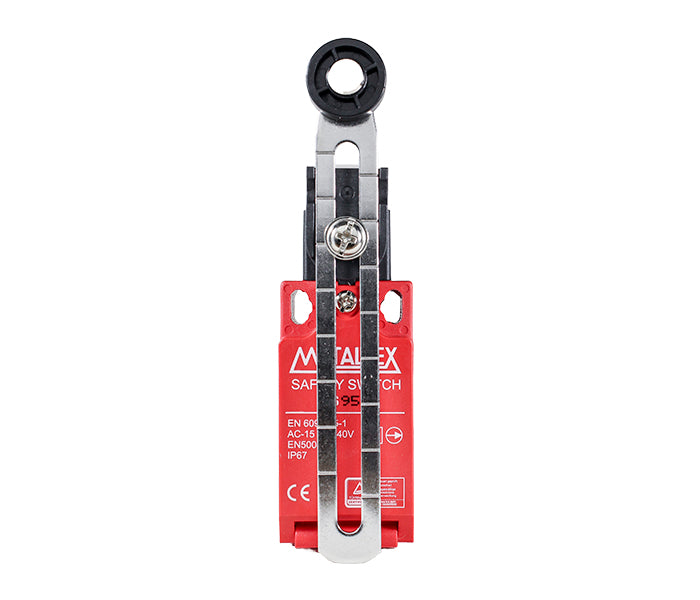

| FS9508 | Roller with Adjustable Rod |
General specifications
General specifications
| Standard | EN60947-5-1, UL508, EN50047, EN1098 |
| Contact arrangement | 2NF + 1NA / 2NC + 1NO |
| Positive break | contato NF |
| Contact rating | AC15 3A-240VAC carga resistiva |
| Conduction current (Ith) | 10A max. |
| Insulation voltage Ui | 600V |
| Mechanical life | 10 x 106 operations min. |
| Electrical life | 150 x 103 operations min. |
| Operating frequency | 6 x 103 operations por hora max. |
| Contact resistance | ≤25 mΩ max. (inicial) |
| Insulation resistance | 100MΩ min. (a 500VDC) |
| Dielectric strength | 2,500VAC - 1 minuto |
| Protection against electric shock | Class II - double insulation |
| Vibration | 10 ~ 55Hz |
| Operating temperature | -25 ~ 80°C |
| Degree of protection | IP67 |
| Pollution degree | 3 |
| Cable gland | PG13.5 |
