FS96 Safety Limit Switch
CÓD: FS9604-1A1B
Description
Description
The FS96 line of safety switches consists of robust interlocking devices, designed to protect machinery and operators in industrial environments. With positive break contacts and various actuator options, they ensure high reliability in controlling access to hazardous areas.
- NC contacts with positive break, ensuring safe shutdown in case of failure
- Contact options of 1NO+1NC, 2NC+1NO, or 2NC, meeting different safety levels
- Various actuator types (rod, roller, lever, and adjustable versions)
- TÜV and CE certified
Select the options below
Code list
Code list
| Code | Description |
|---|---|

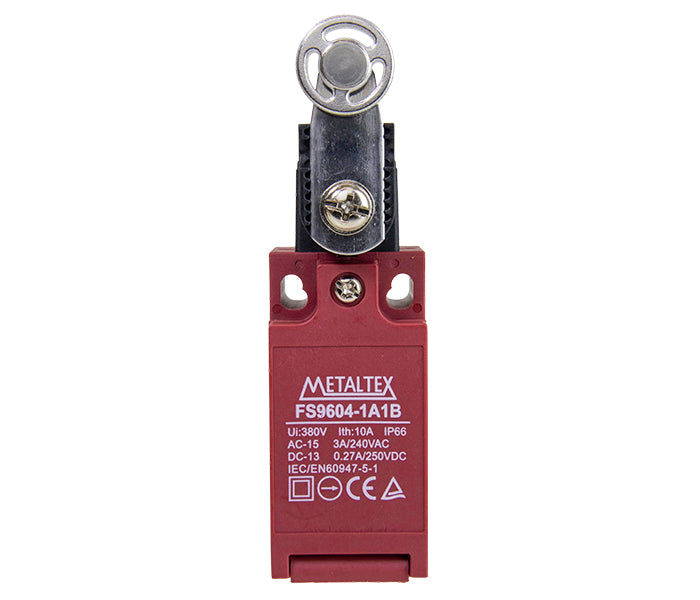

| FS9604-1A1B | 1NA+NF Quick Action / Lever with Roller |

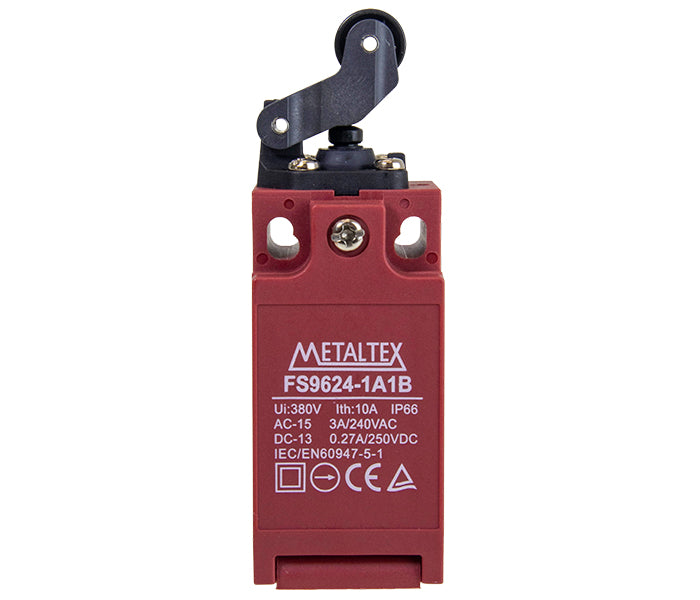

| FS9624-1A1B | 1NA+NF Quick Action / Fixed Side Lever with Roller |

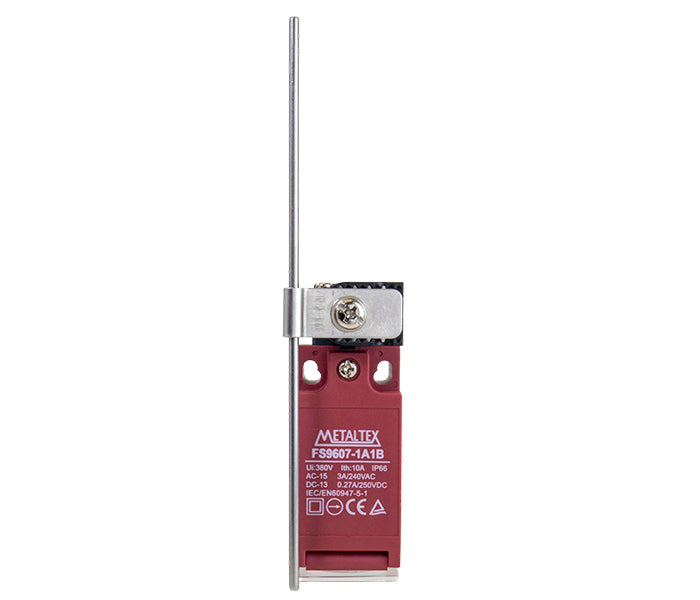

| FS9607-1A1B | 1NA+NF Quick Action / Wire |

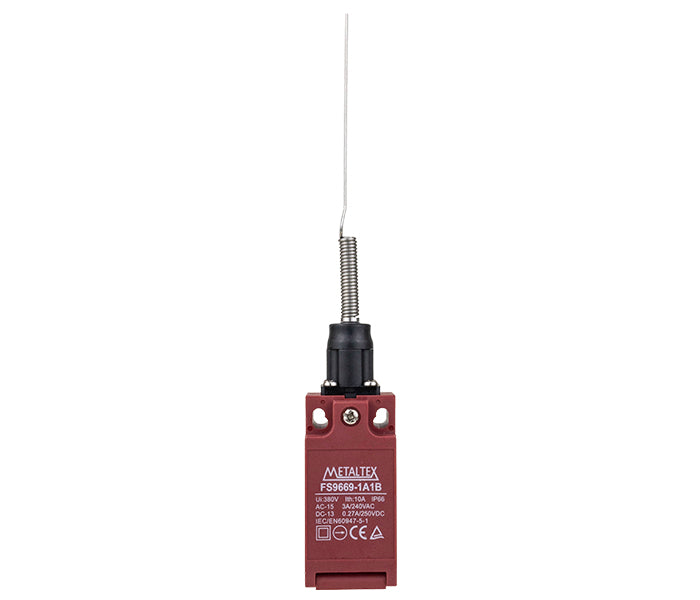

| FS9669-1A1B | 1NA+NF Quick Action / Flexible Wire |

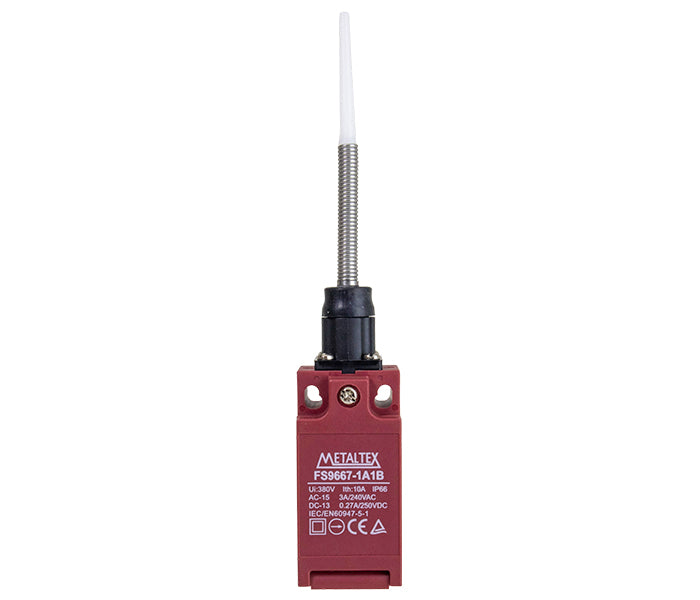

| FS9667-1A1B | 1NA+NF Quick Action / Flexible Rod |

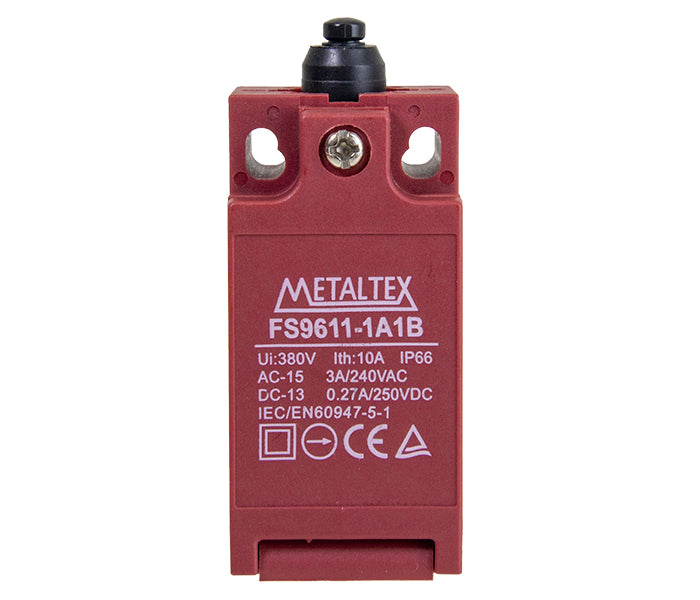

| FS9611-1A1B | 1NA+NF Quick Action / Pin |

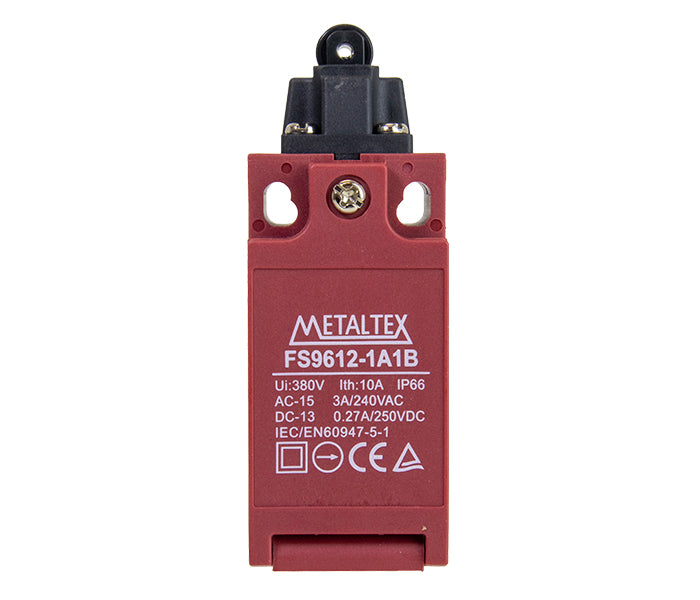

| FS9612-1A1B | 1NA+NF Quick Action / Roller |

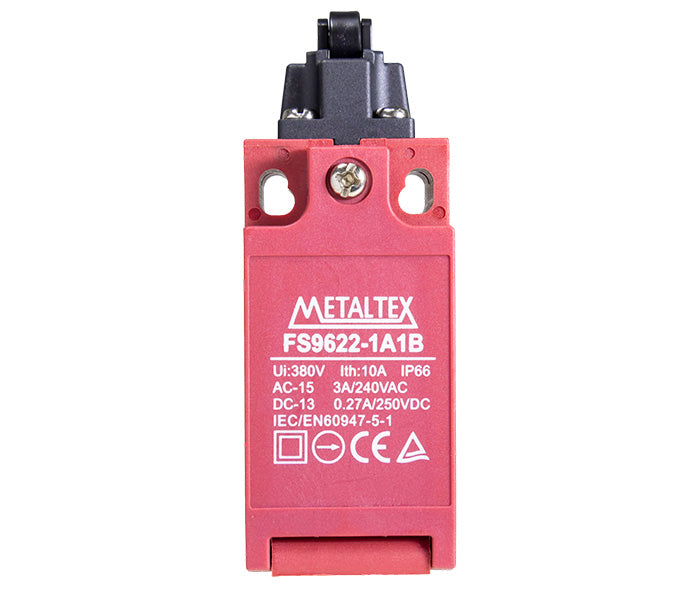

| FS9622-1A1B | 1NA+NF Quick Action / Roller 90° |
| FS9669-2B | 2NF Slow Action / Flexible Wire |

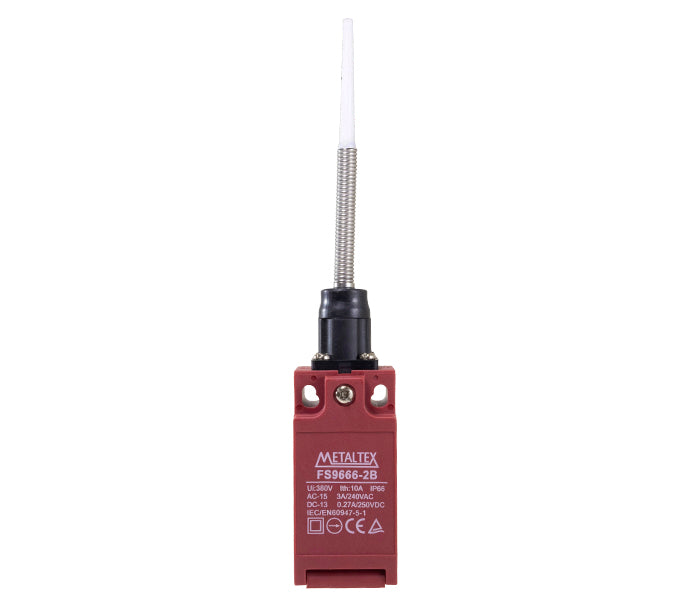

| FS9666-2B | 2NF Slow Action / Flexible Spring Rod |

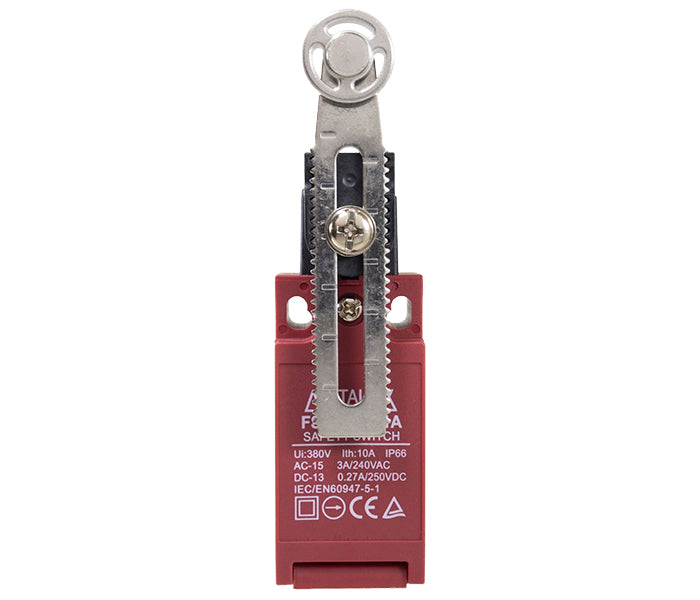

| FS9608-2B1A | 2 slow-release NPK(20-0-0)+1 microelement / Adjustable with Roller |
| FS9608-1A1B | 1NA+NF Quick Action / Adjustable with Roller |
| FS9611-2B1A | 2 slow-release NPK(20-0-0)+1 microelement / Pin |
| FS9624-2B1A | 2 slow-release NPK(20-0-0)+1 microelement / Fixed Side Lever with Roller |
General specifications
General specifications
| Standard | EN60947-5-1 |
| Certifications | TÜV / CE |
| Arrangement of the contact - Ação rápida | 1NO + 1NC (NC with positive break) |
| Arrangement of the contact - Ação lenta | 2NF +1NA / 2NF (NF with ruptura positiva) |
| Contact rating | AC-15: 3 A / 240 VAC DC-13: 0.27 A / 250 VDC |
| Current of conduction max. (Ith) | 10 A |
| Operating frequency | Máx. 30 operations per minuto |
| Contact resistance | 25 mΩ or menos |
| Voltage of insulation rated (Ui) | 380 V |
| Degree of protection against electric shock | Classe II (isolamento duplo) |
| Degree of pollution (conditions ambientais) | 3 (EN60947-5-1) |
| Electrical life | >500,000 operations (250 VAC 3 A, carga resistiva a 35 °C) |
| Mechanical life | >300,000 operations (250 VAC 10 A, carga resistiva) |
| Operating speed | 1 ~ 500mm/s |
| Min. load of operation | Load resistiva of 1 mA below of 5 VDC |
| Voltage suportável - Between terminals of the same pole | 2.5 kV |
| Voltage suportável - Between terminals of poles different | 4 kV |
| Voltage suportável - Between terminals and partes metálicas não energizadas | 6 kV |
| Resistance of insulation | >100 MΩ |
| Space between contacts - Ação rápida | Minimum 2 × 0.5 mm |
| Space between contacts - Ação lenta | Minimum 2 × 2 mm |
| Vibration | 10–55 Hz 0.75 mm (without actuation) |
| Impacto - Durabilidade | 1,000 m/s² |
| Impact - Without actuation | 3000 m/s² |
| Ambient temperature | -20 ~ 70 °C |
| Humidity | <95% RH |
| Weight | Approximately 73g (without gland cable) |
| Degree of protection | IP66 |
| Cable gland | M20 |
