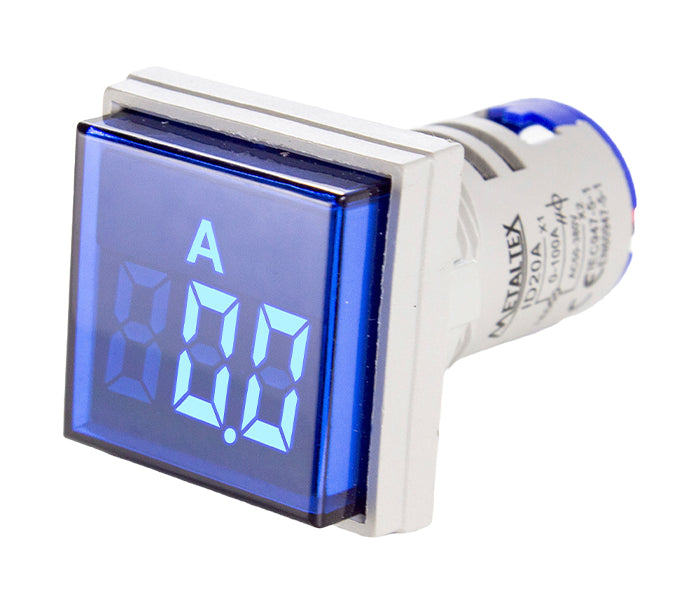

ID20 Digital Ammeter
CÓD: ID20A-B
Description
Description
Digital current indicator developed for monitoring electrical current in industrial systems. With an easy-to-read display, it allows precise monitoring of values, contributing to the control and safety of installations.
- Current measurement in the range of 0 to 100 A
- Square digital display
- Power supply from 50 to 380 VAC
- Available in blue, green, and red
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| ID20A-B | Blue |
| ID20A-G | Green |
| ID20A-R | Red |
General specifications
General specifications
Insulation resistance
≥2MΩ
Allowable floating voltage
±20%
Continuous operating life
≥30000h
Brightness
≥100cd/m²
Protection class
IP65
Applicable frequency
50~60Hz
Working condition
Ambient temperature
-25 ~ 55°C
Relative humidity
≤98%
Vibration frequency
2 ~ 80Hz
Pollution degree
3
Compare to lines
| Description |
Digital current indicator developed for monitoring electrical current in industrial systems. With an easy-to-read display, it allows precise monitoring of values, contributing to the control and safety of installations. Current measurement in the range of 0 to 100 A Square digital display Power supply from 50 to 380 VAC Available in blue, green, and red |
Instantaneous power indicator developed for real-time monitoring of electricity consumption in industrial systems. With an easy-to-read digital display, it allows precise power tracking, assisting in energy control and efficiency. Real-time power measurement (up to 26 kW at 220 VAC and 45 kW at 380 VAC) Square digital display Power supply from 220 to 380 VAC Panel installation |
Digital temperature indicator developed for thermal monitoring in industrial systems. With an easy-to-read display and panel installation, it allows for precise temperature monitoring, contributing to operational control and safety. Temperature measurement -20 ~ 199 °C Square digital display Power supply from 50 to 380 VAC Available in colors such as yellow and red |
Multifunction digital indicator for measuring voltage, current, and frequency in electrical systems. With an easy-to-read display, it allows for simultaneous monitoring of key electrical parameters, contributing to greater control and operational efficiency. Voltage measurement (50 to 500 VAC), current (0 to 100 A), and frequency (0 to 99 Hz) Square digital display Power supply in the range o… |
Multifunction digital indicator for measuring voltage, current, and frequency in electrical systems. With an easy-to-read display, it allows for simultaneous monitoring of key electrical parameters, contributing to greater control and operational efficiency. Voltage measurement (50 to 500 VAC), current (0 to 100 A), and frequency (0 to 99 Hz) Square digital display Power supply in the range o… |
Digital voltage and current indicator developed for comprehensive monitoring of electrical parameters in industrial systems. With an easy-to-read display, it allows simultaneous tracking of voltage and current values, enhancing operational control and safety. Voltage measurement (50 to 500 VAC) and current (0 to 100 A) Square digital display Power supply in the range of 50 to 500 VAC Availab… |
Digital voltage and frequency indicator, developed for monitoring electrical parameters in industrial systems. With a high-visibility display, it allows for quick and accurate readings, contributing to the control and safety of installations. Voltage (50 to 500 VAC) and frequency (0 to 99 Hz) measurement Square digital display Power supply in the 50 to 500 VAC range Available in blue, green,… |
Digital hour and minute indicator, ideal for monitoring operating time in industrial equipment and processes. With an easy-to-read display and panel mounting, it provides precise and reliable control. Time indication up to 999h59 Square digital display Power supply from 220 to 380 VAC Dry contact reset function for reinitialization |

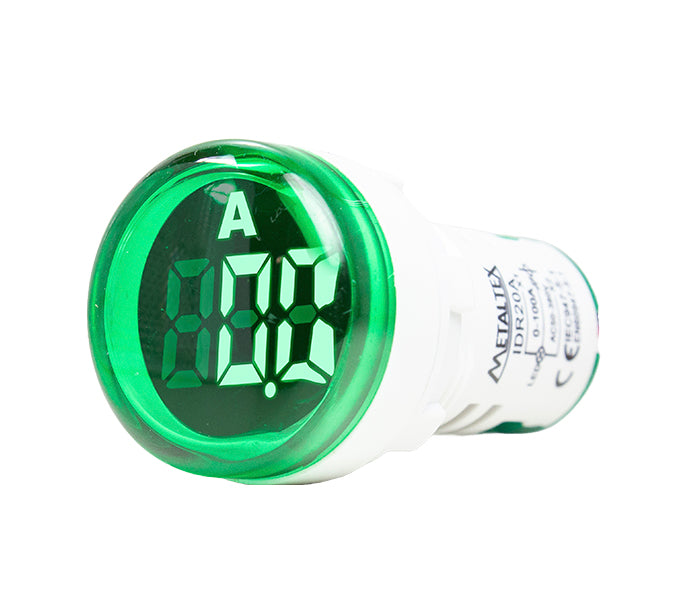

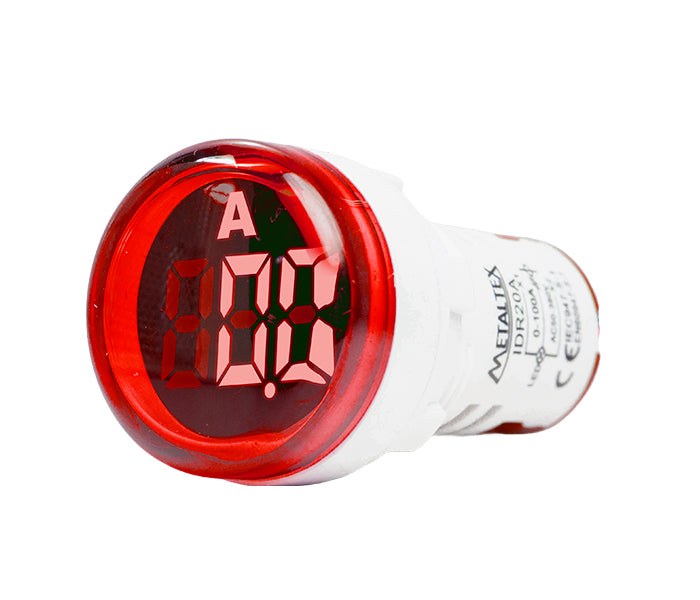

Digital current indicator designed for monitoring electrical current in industrial systems. With an easy-to-read display, it allows for precise monitoring of values, contributing to the control and safety of installations. Current measurement in the range of 0 to 100 A Round digital display Power supply from 50 to 380 VAC Available in green and red |
