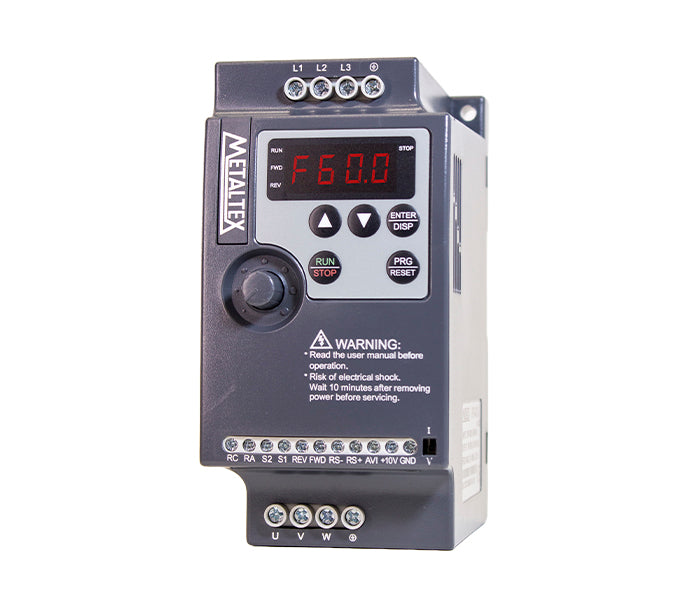

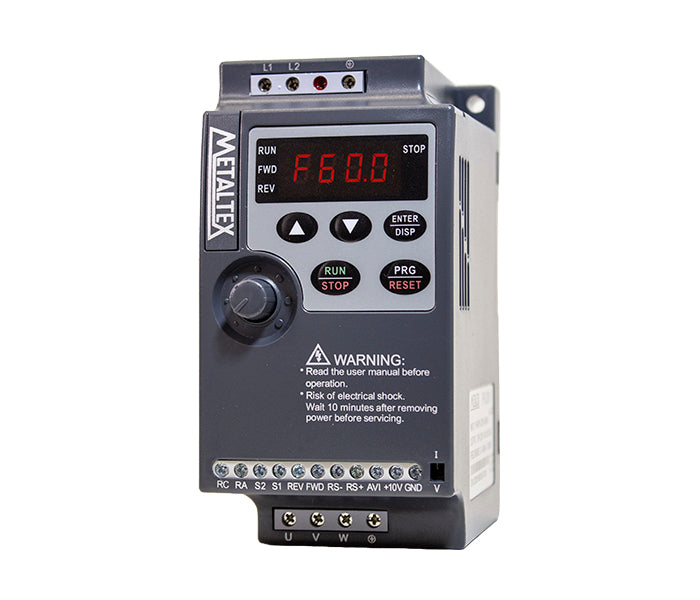

Compact Frequency Inverter IF10
CÓD: IF10-201-1
Description
Description
The IF10 is a compact inverter for efficient control of motors up to 10 HP. Its integrated communication facilitates industrial automation. It features advanced resources that ensure performance and precision. It is ideal for modern and demanding applications.
- Power from 1 HP up to 10HP
- RS-485 communication with Modbus-RTU
- Scalar control with SVPWM
- DIN rail mounting up to 3 HP
Select the options below
Code list
Code list
| Code | Description |
|---|---|

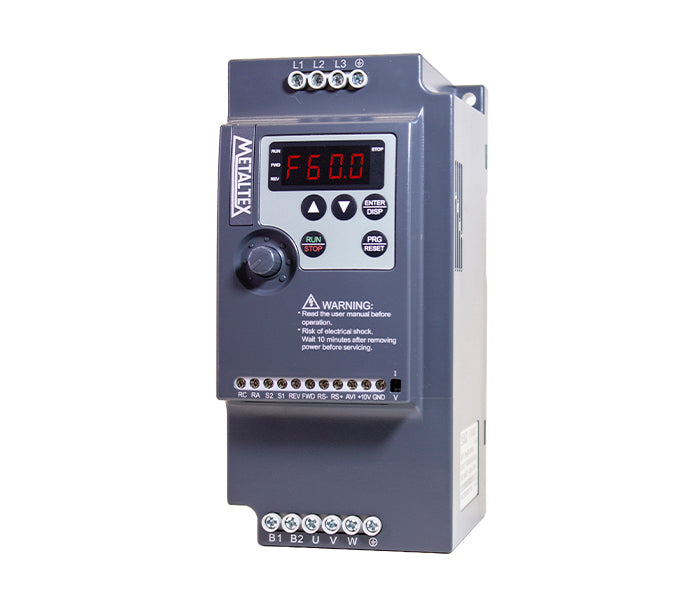

| IF10-201-1 | 1HP / 220V Single-phase |

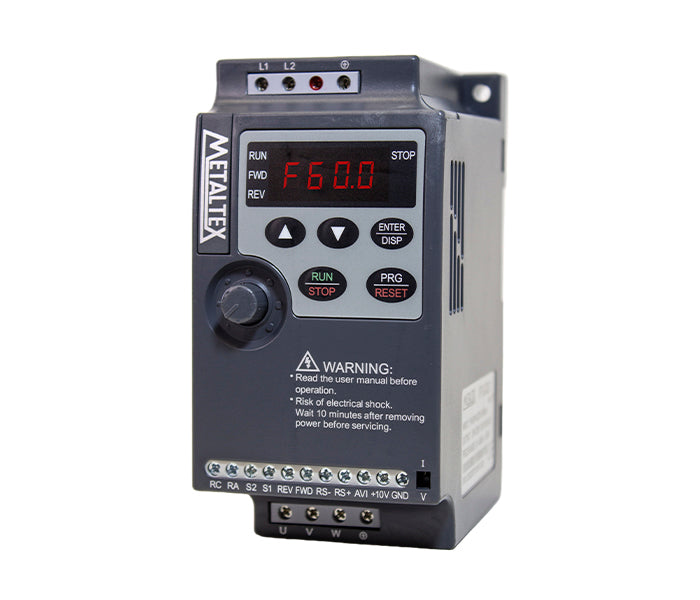

| IF10-202-1 | 2HP / 220V Single-phase |

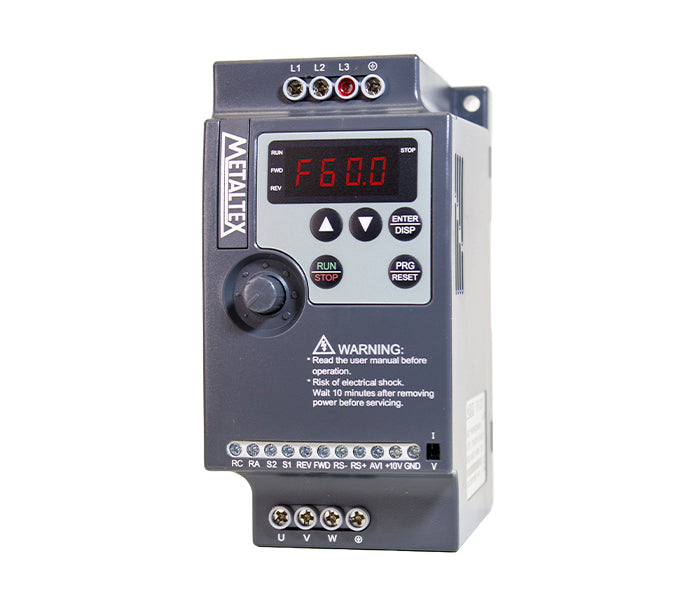

| IF10-203-1 | 3HP / 220V Single-phase |

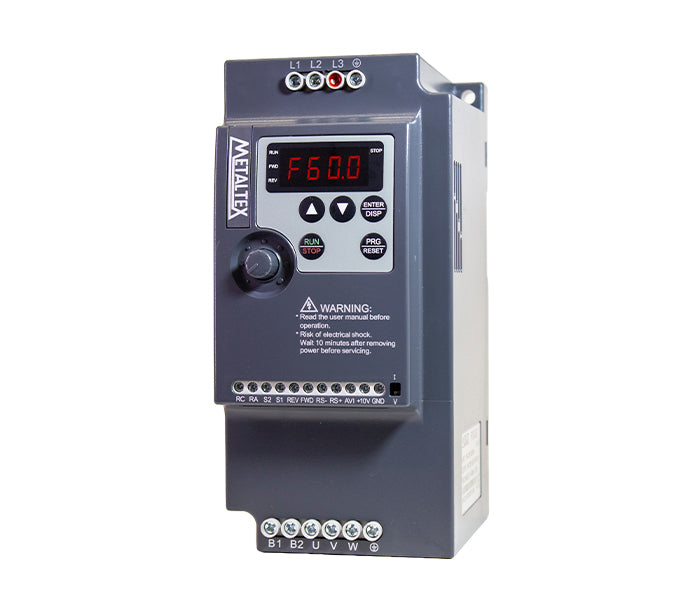

| IF10-205-1 | 5HP / 220V Single-phase |
| IF10-401-3 | 1HP / 380V Three-phase |

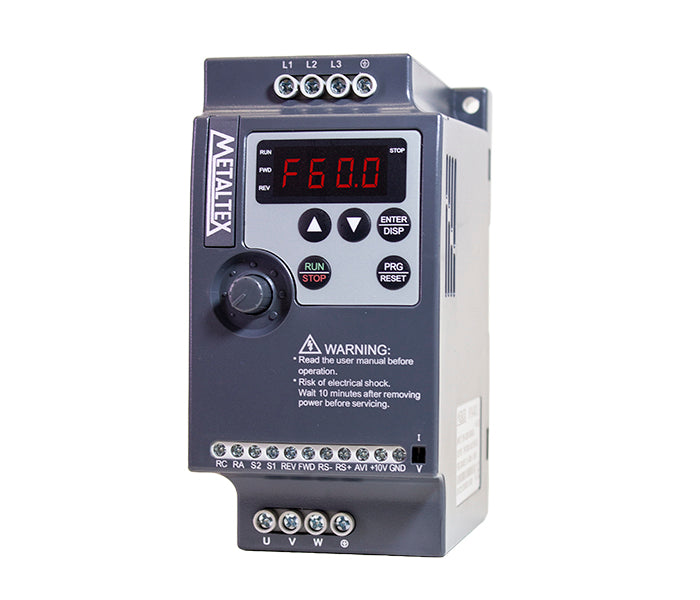

| IF10-402-3 | 2HP / 380V Three-phase |
| IF10-403-3 | 3HP / 380V Three-phase |
| IF10-405-3 | 5HP / 380V Three-phase |

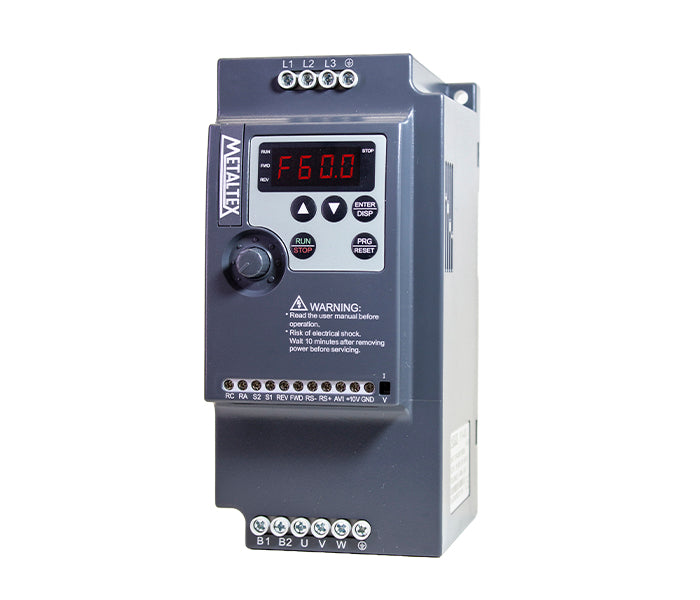

| IF10-408-3 | 7.5 HP / 380V Three-phase |

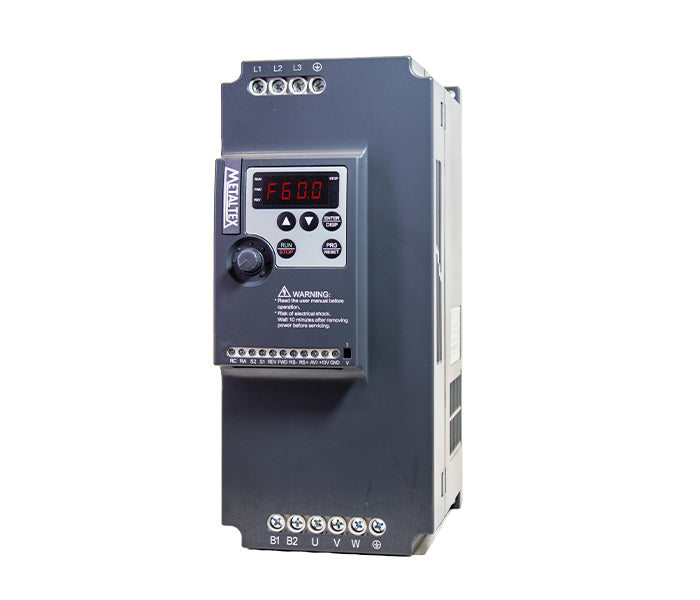

| IF10-410-3 | 10HP / 380V Three-phase |
General specifications
General specifications
| Range of voltage of input single-phase | 170 ~ 240 V |
| Range of voltage of input three-phase | 330 ~ 440 V |
| Voltage of output for models with alimentação 220 V | 0 ~ 220 V |
| Voltage of output for models with alimentação 380 V | 0 ~ 380 V |
| Output frequency | 1.0 ~ 400 Hz |
| System of voltage of input | Single-phase Three-phase |
| Tolerance of frequency of input | ± 5% |
| Output frequency resolution | 0.1 Hz |
| Controle PID | Integrado |
| Overload time at 120% of rated current (constant torque) | 1 minute |
| Time of acceleration / deceleration (ajustado individualmente) | 0.1 ~ 999.9 segundos |
| Curva V/F | Adjustable |
| Frequency configuration | Keypad: Adjustment feito pelas switches ▼▲ in the panel of control Signal external: Potentiometer 10 kΩ / 0.5 W 0 ~ +10 VDC (impedance of 47 kΩ) 4-20 mA (impedance of 250 Ω) Input multifunction of 1 the 3 RS485 - Modbus |
| Operating configuration | Teclado: Acionamento feito pela tecla RUN / STOP Inputs digital: 4 terminals multifunction with multiple modos of operation RS485 - Modbus Multispeed JOG |
| Multifunction input signal | Inibidor of acceleration / deceleration Seleção of primeira or segunda acceleration / deceleration Contador Operation CLP Seleção of lock of base external |
