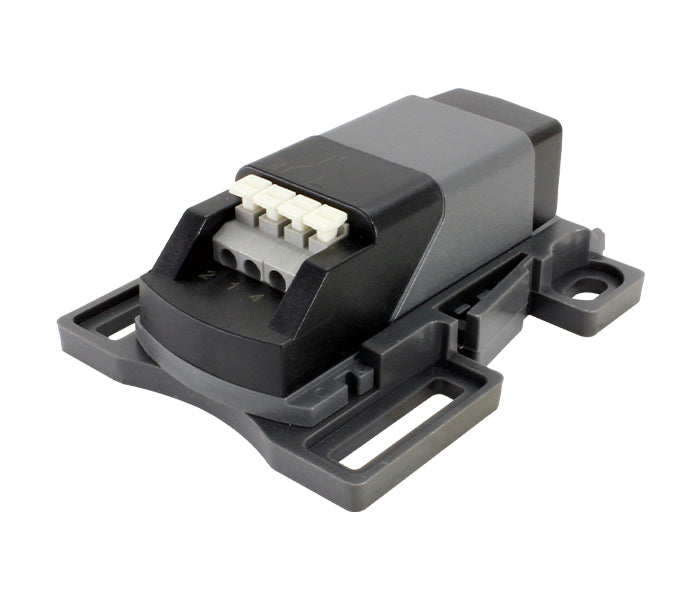

Door Interlock Switch IP01 for Panel
CÓD: IP01
Description
Description
The IP01 is a panel door switch designed to automate the activation of internal lighting. It offers practical installation with secure connection, ensuring quick assembly. It features switching up to 8 A / 250 VAC and an IP20 protection rating. It operates with a storage temperature from -20 °C to 85 °C, making it suitable for industrial environments.
- Automatic activation of the panel's internal lighting
- Quick mounting with simplified installation
- Switching capacity: 8 A / 250 VAC
- 4-pole clamp connection with strain relief
General specifications
General specifications
| Máx.Rating of switching | 8A-250VAC |
| Service life | VDE: > 10,000 ciclos / UL: > 6,000 ciclos |
| Connection | Braçadeira of 4 poles with alívio of voltage |
| Torque | Máx. 0.5Nm / Max. 0.5Nm |
| Body material | Plastic gray/black according to with UL94 V-0 |
| Dimension | 87 x 64 x 30mm |
| Weight | 50g (approximate) |
| Storage temperature | -20 ~ 85°C (-4 ~ 185°F) |
| Humidity | Max. 90% UR / RH (non-condensing) |
| Degree of protection | IP20 / II (isolamento duplo) |
