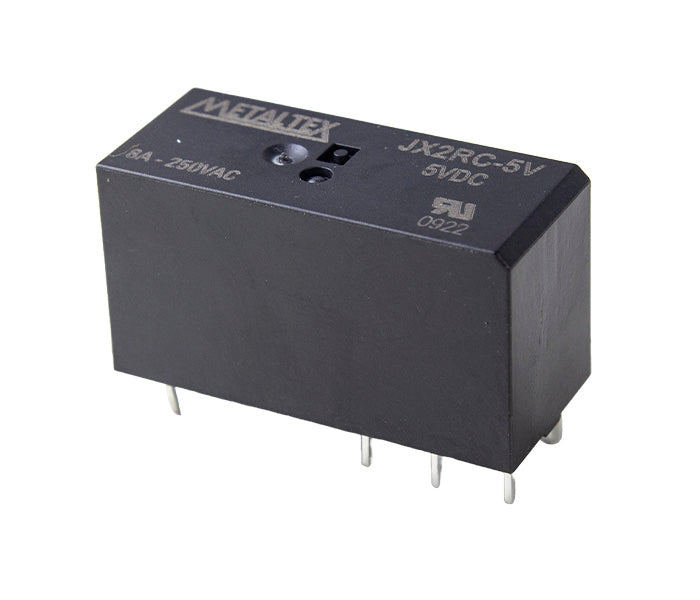

Miniature Power Relay JX2
CÓD: JX2RC-5V
Description
Description
The JX2 relay is a compact and safe power relay, ideal for industrial and electronic applications. With high isolation of 5000V and 5A contacts, it offers reliable performance and long service life. Its versatile mounting and UL certification ensure efficiency and safety in various control systems.
- Features 2 changeover contacts, 5A, supporting up to 250VAC / 30VDC
- Available in voltages from 5VDC to 100VDC
- Direct mounting on PCB or socket
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| JX2RC-5V | 5VDC / 8A |

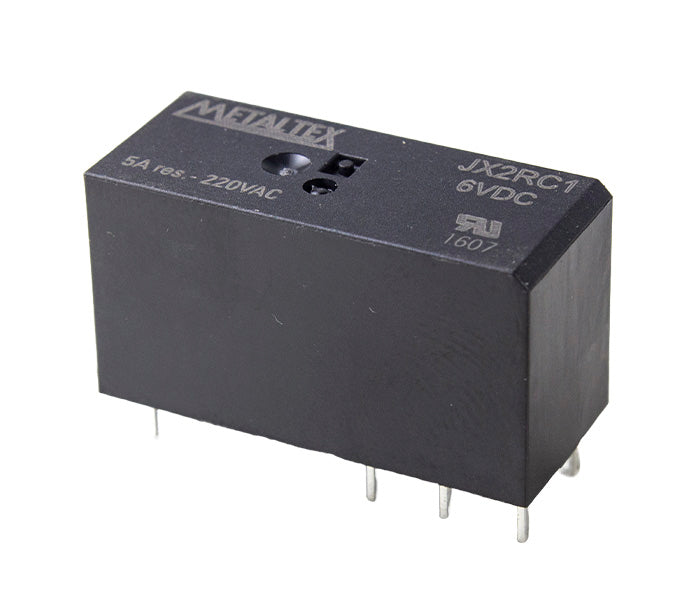

| JX2RC1 | 6VCC / 8A |

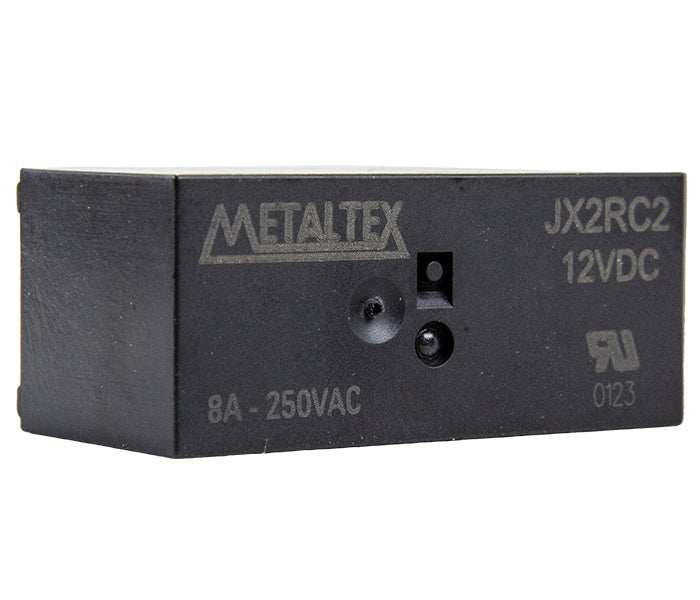

| JX2RC2 | 12VDC / 8A |

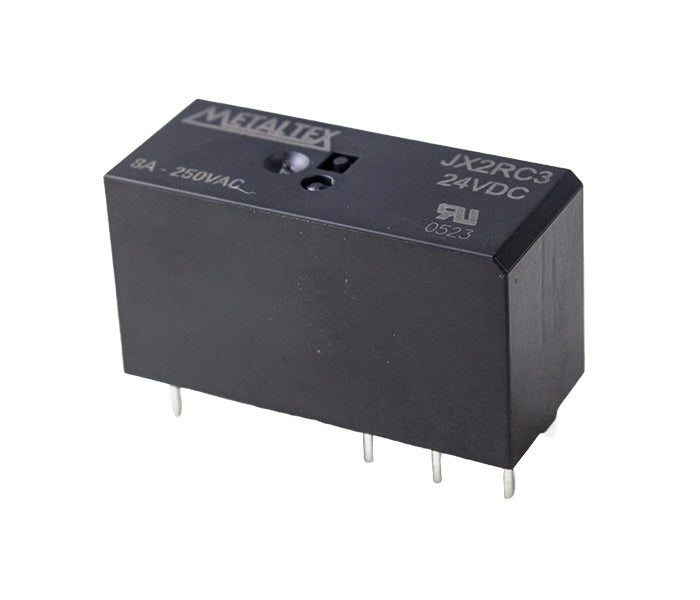

| JX2RC3 | 24VDC / 8A |

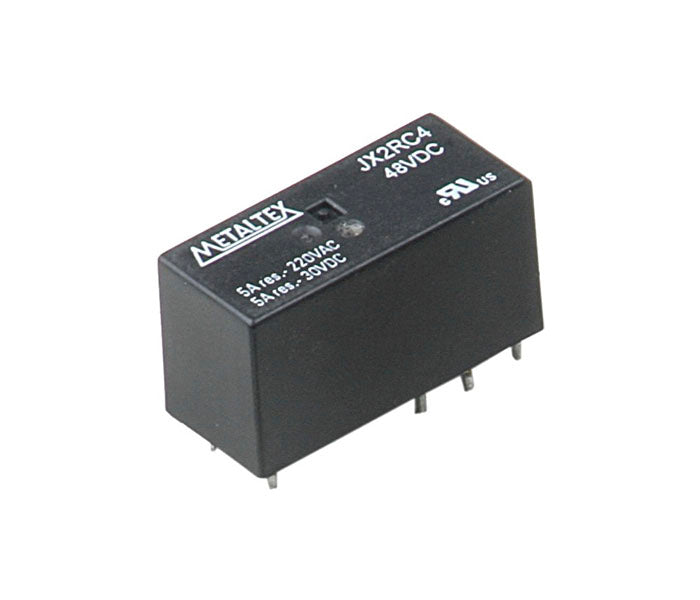

| JX2RC4 | 48VDC / 5A |

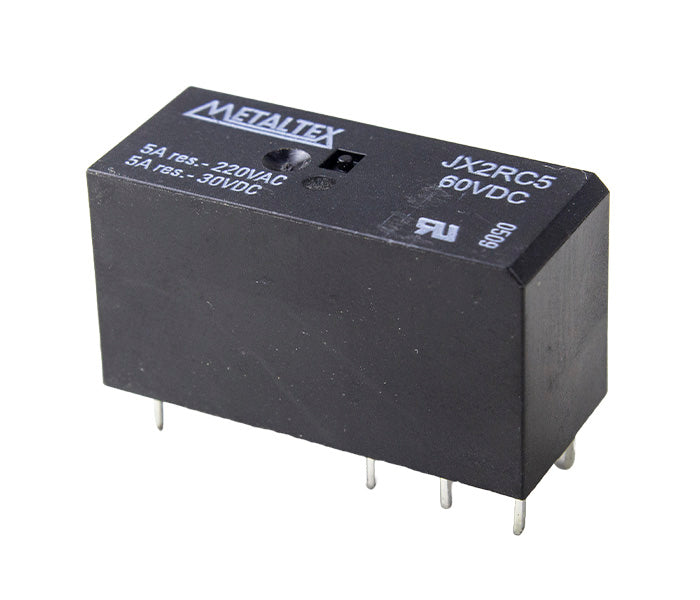

| JX2RC5 | 60VDC / 5A |

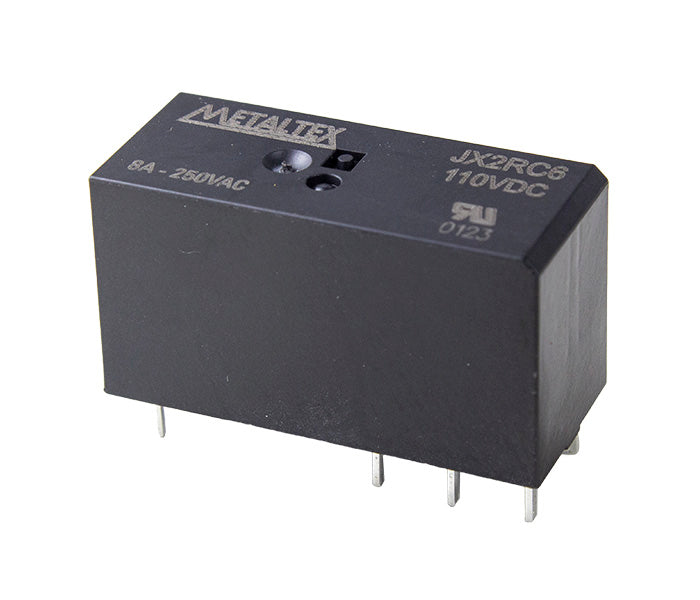

| JX2RC6 | 100VDC / 8A |
General specifications
General specifications
| Dielectric strength between coil and contacts | 5000 VAC (1 minuto / minute) |
| Dielectric strength between open contacts | 1000 VAC (1 minuto / minute) |
| Strength dielectric between conjunto of contacts | 2500 VAC (1 minuto / minute) |
| Surge voltage between contacts and coil | 10 KV (1.2 x 50 μs) |
| Insulation resistance | 1000 MΩ min. (500 VDC) |
| Operating temperature | -40 ~85°C |
| Vibration resistance | 10 G - 10 ~ 55 Hz |
| Impact resistance | 10G |
| Construction | Selado |
