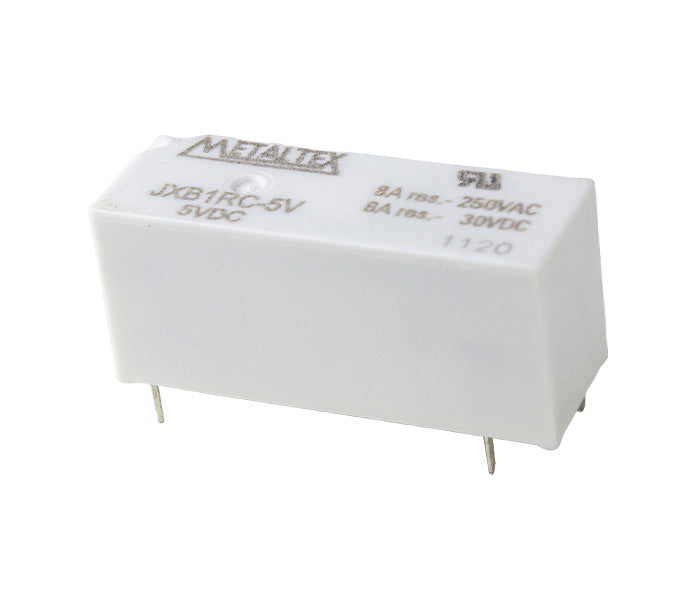

JXB Miniature Power Relay
CÓD: JXB1RC-5V
Description
Description
The JXB relay is a compact and safe component for controlling electrical loads in industrial and electronic systems. With 5000V isolation and 8A contacts, it offers high reliability and long service life. Its sealed construction and UL certification ensure stable performance in demanding environments.
- Reversible 8A contact, supporting up to 250VAC / 125VDC
- Available in various voltages from 5VDC to 60VDC
- Direct PCB mounting
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| JXB1RC-5V | 5VDC |

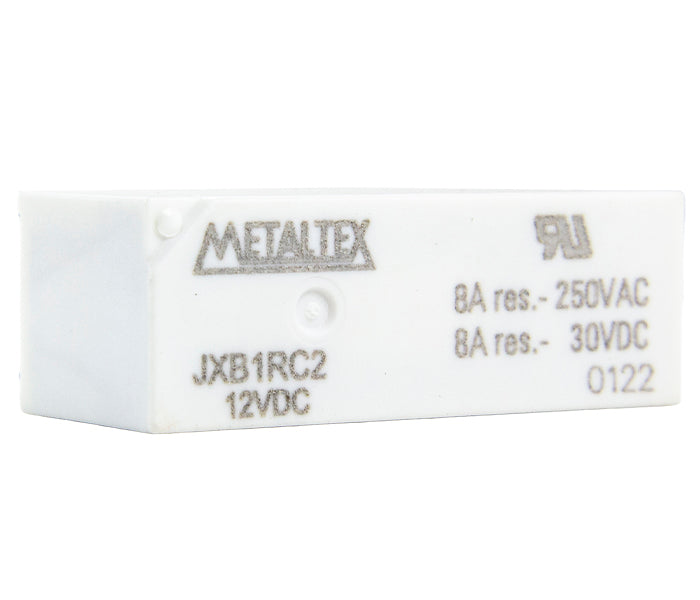

| JXB1RC2 | 12VDC |

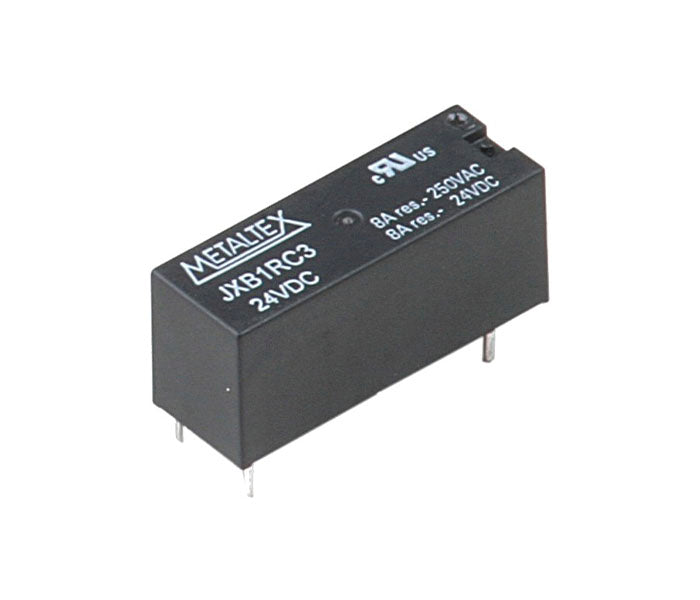

| JXB1RC3 | 24VDC |

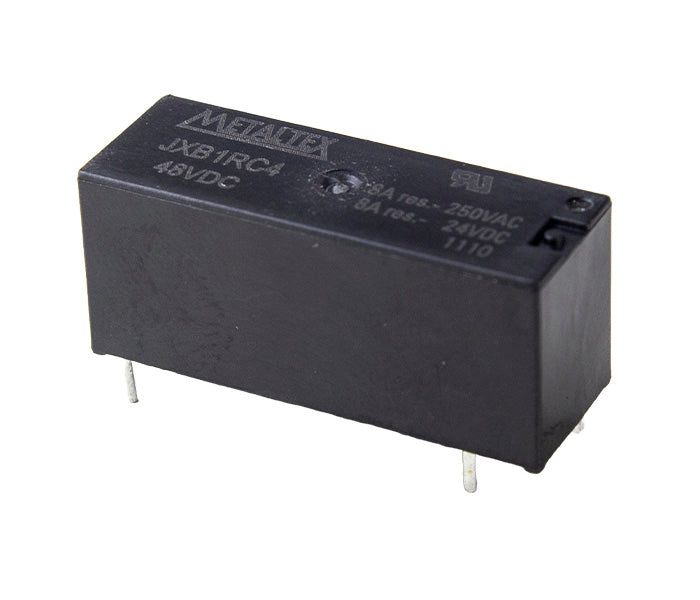

| JXB1RC4 | 48VDC |

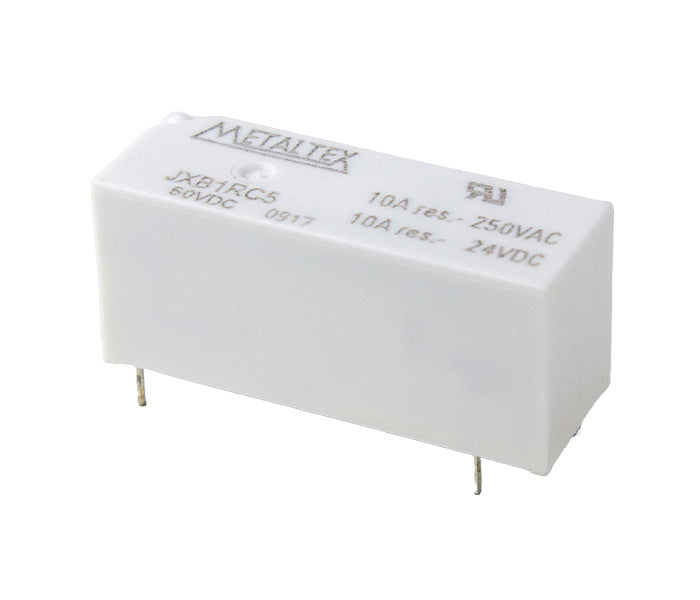

| JXB1RC5 | 60VDC |
General specifications
General specifications
| Dielectric strength between coil and contacts | 5000 VAC (1 minuto / minute) |
| Dielectric strength between open contacts | 1000 VAC (1 minuto / minute) |
| Surge voltage between contacts and coil | 10 KV (1.2 x 50 μs) |
| Insulation resistance | 1000 MΩ min. (500 VDC) |
| Operating temperature | -40 ~ 85°C |
| Vibration resistance | 10 G - 10 ~ 55 Hz |
| Impact resistance | 10 G |
| Construction | Selado |
