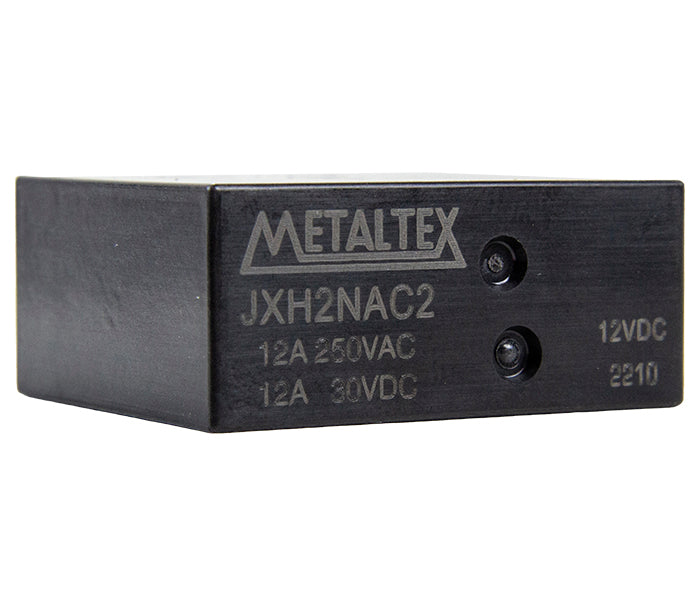

JXH Miniature Power Relay
CÓD: JXH2NAC2
Description
Description
The JXH relay is a robust ultra-miniature relay, designed for switching up to 12A in compact applications. With 5000V insulation and long mechanical life, it offers high reliability in electronic systems. Its sealed construction and direct PCB mounting ensure safe and stable performance in demanding environments.
- Features 2 NO contacts rated at 12A
- Model available only in 12VDC version
- Direct PCB mounting
General specifications
General specifications
| Dielectric strength between coil and contacts | 5000VAC (1 minuto) |
| Strength dielectric between jogos of contacts | 3000VAC (1 minuto) |
| Dielectric strength between open contacts | 2500VAC (1 minuto) |
| Surge voltage between coil and contacts | 10kVCA (1.2 / 50 µs) |
| Insulation resistance | 1000MΩ (500VDC) |
| Operating temperature | -40 ~ 85°C |
| Vibration resistance | 10 a 55 Hz, amplitude dupla 1.5 mm |
| Impact resistance (Functional) | 98m/s² |
| Impact resistance (Destructive) | 980m/s² |
| Mechanical life | 3x10⁵ operations |
| Electrical life | 3x10⁴ operations |
| Approximate weight | 19g |
