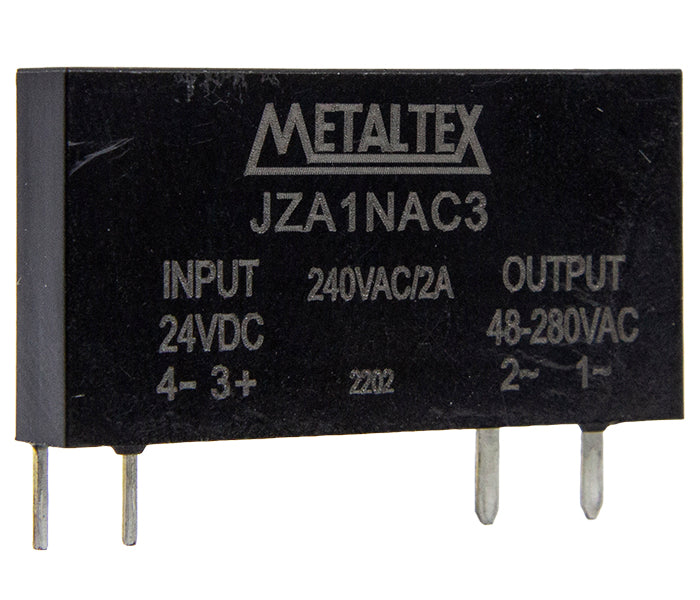

JZA Solid State Relay

CÓD: JZA1NAC3

Description

The JZA solid-state relay combines compactness and efficiency for industrial and electronic applications. With high electrical isolation and versatile mounting, it offers reliability and safety.

  • High electrical isolation: dielectric strength of 2500V
  • Versatile mounting: can be installed on a PCB or in a DIN rail socket
  • Application as a relay interface

General specifications
Dielectric strength2500VAC - 50/60Hz (1 min.)
Insulation resistance1000MΩ (500 VDC)
Maximum capacitance (input/output)5pF
Vibration resistance10 ~ 55Hz / 1.5mm / Dupla amplitude
Impact resistance980m/s²
Operating temperature-30 ~ 80°C
Storage temperature-30 ~ 100°C
Ambient humidity48 ~ 85% UR/RH
Unit weight4g
