JZC Solid State Relay
CÓD: JZC1NAC2
Description
Description
The JSC solid-state relay is compact and reliable, designed for controlling DC loads. With high electrical isolation, flexible mounting, and an indicator LED, it offers safe and efficient performance.
- DC input and output: supports up to 4A
- Convenient mounting: can be installed directly on a PCB or in a socket
- Reinforced electrical isolation: dielectric strength of 2500Vrms
Select the options below
Code list
Code list
| Code | Description |
|---|---|

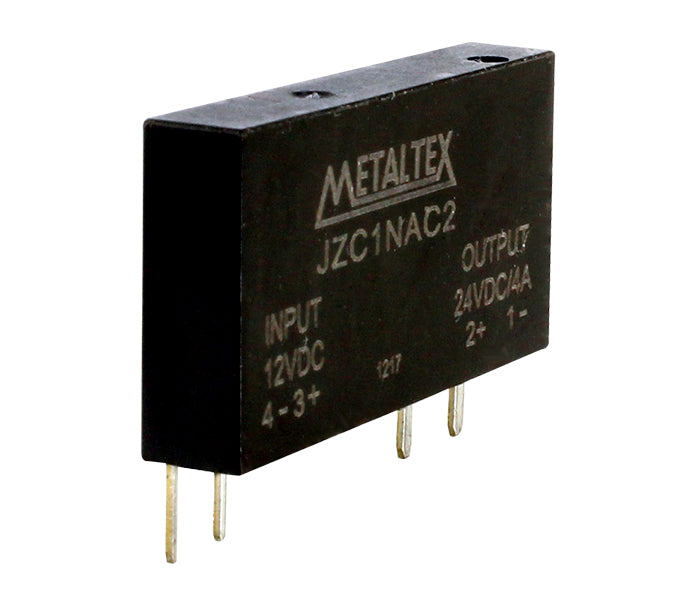

| JZC1NAC2 | 12VDC |

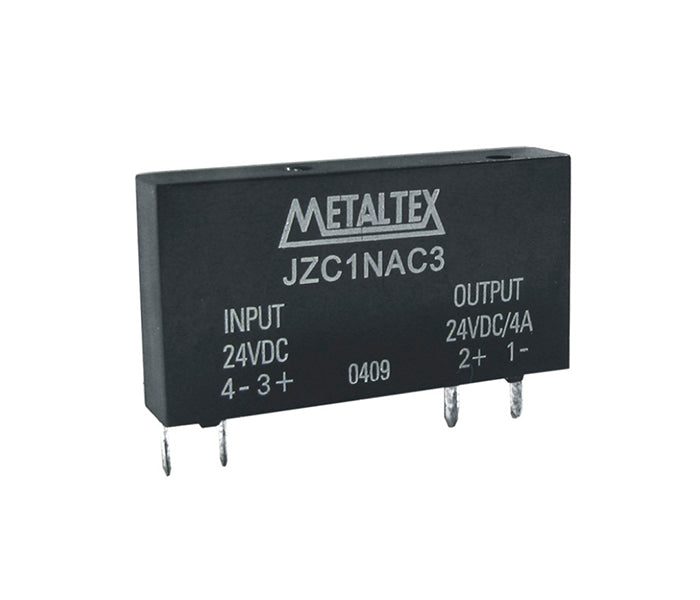

| JZC1NAC3 | 24VDC |
General specifications
General specifications
| Load voltage range | 3 ~ 28.8 VDC |
| Range of current in the load | 0.02 ~ 4A |
| Maximum current of peak of surge não repetitiva in the state on | 48Apk |
| Maximum current residual in the state off (under voltage rated) | 100µA |
| Maximum drop of voltage in the state on (under current rated) | 0.35V |
| Maximum turn-on time | 50µs |
| Maximum turn-off time | 300µs |
| Maximum transient of voltage | 33VDC |
