Female Latch Connector L
CÓD: L-06
Description
Description
The female latch connector is ideal for secure interconnections in electronic circuits and automation systems. Supporting up to 1A and 250V, it ensures reliable performance in low-power applications. Its robust construction with reinforced PBT and gold-plated contacts ensures durability and excellent conductivity.
- Available with various pin counts (6 to 64 pins)
- Maximum current of 1A, nominal voltage of 250V
- Insulator made of UL94V-0 PBT with 30% fiberglass
- Designed for 26 to 28 AWG flat cables with 1.27 mm pitch
Select the options below
Code list
Code list
| Code | Description |
|---|---|

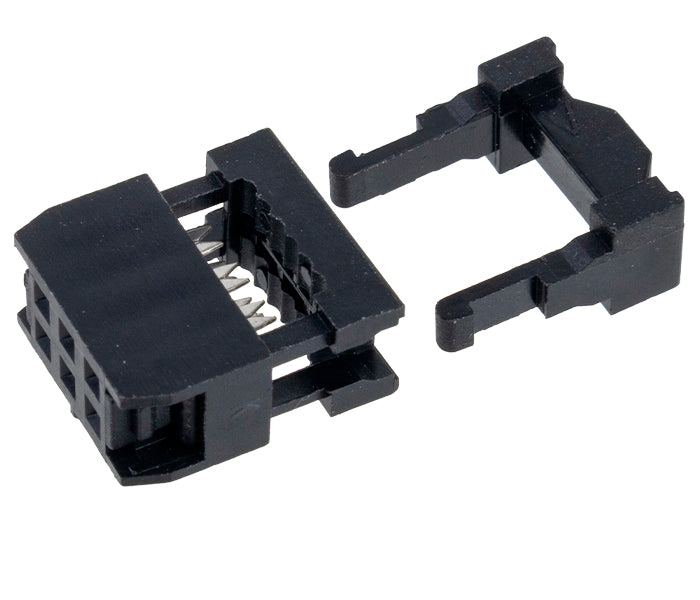

| L-06 | 6-Way |

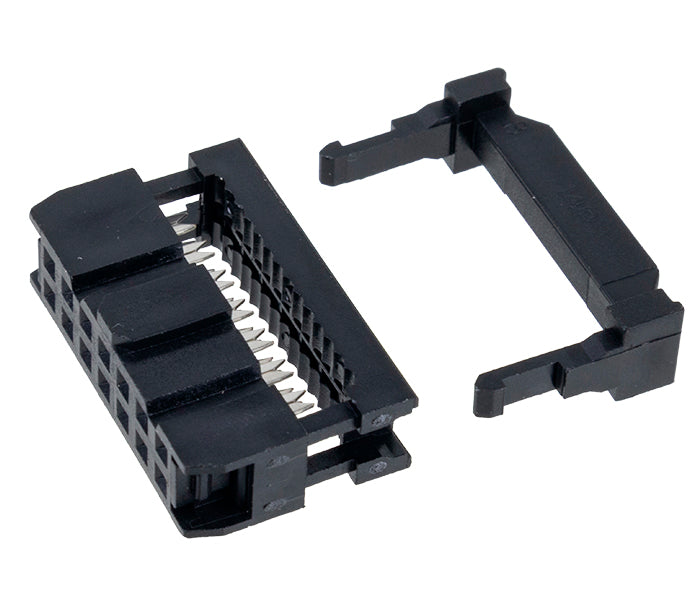

| L-10 | 10-Way |

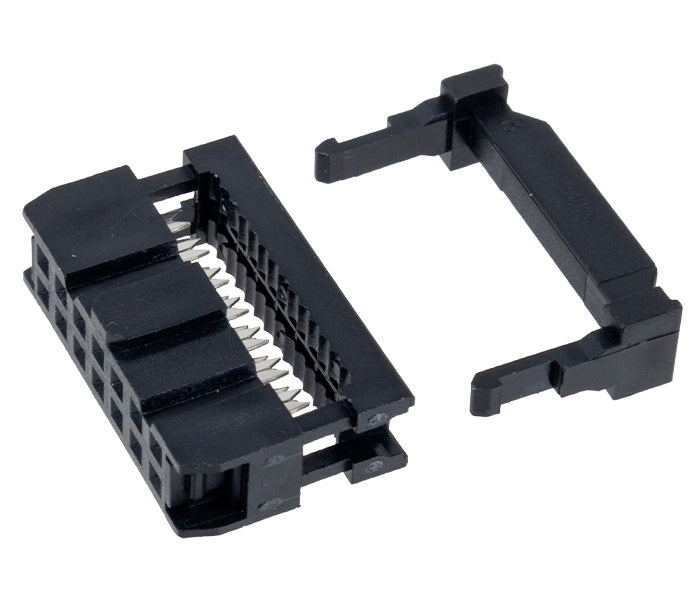

| L-14 | 14-Way |

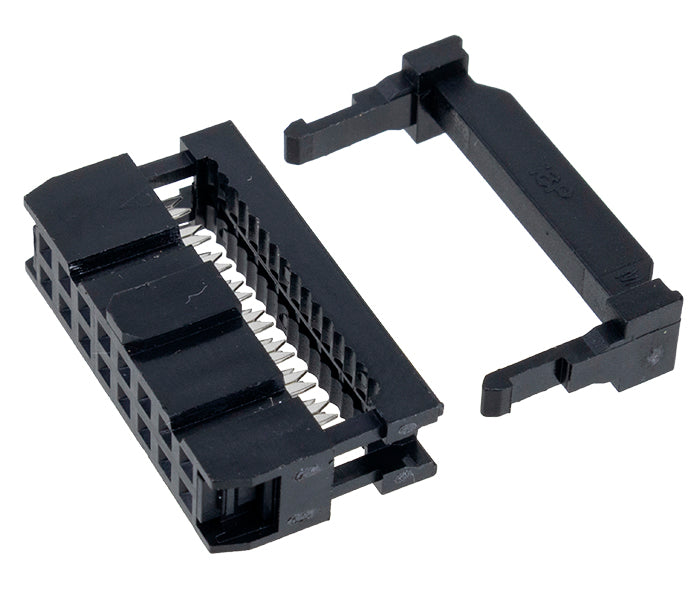

| L-16 | 16-Way |

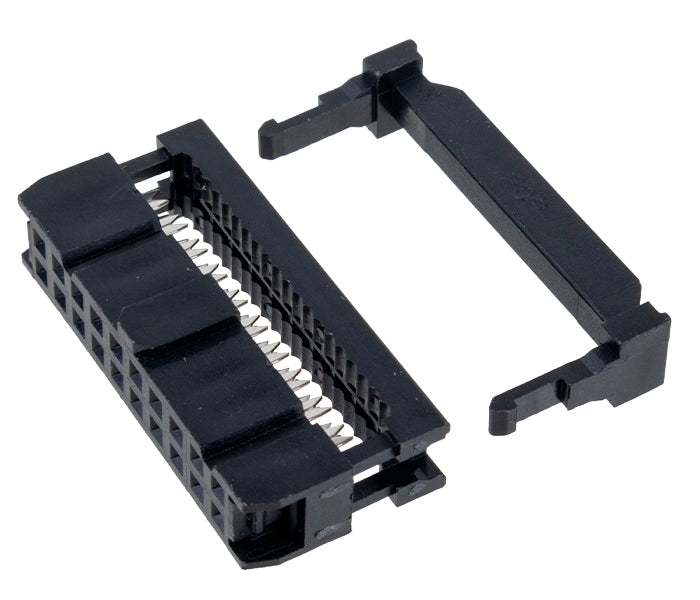

| L-20 | 20-Way |

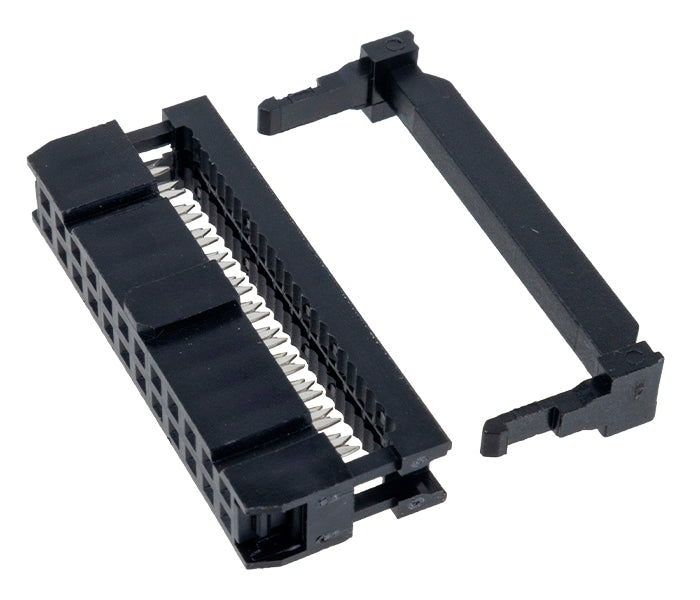

| L-24 | 24-Way |

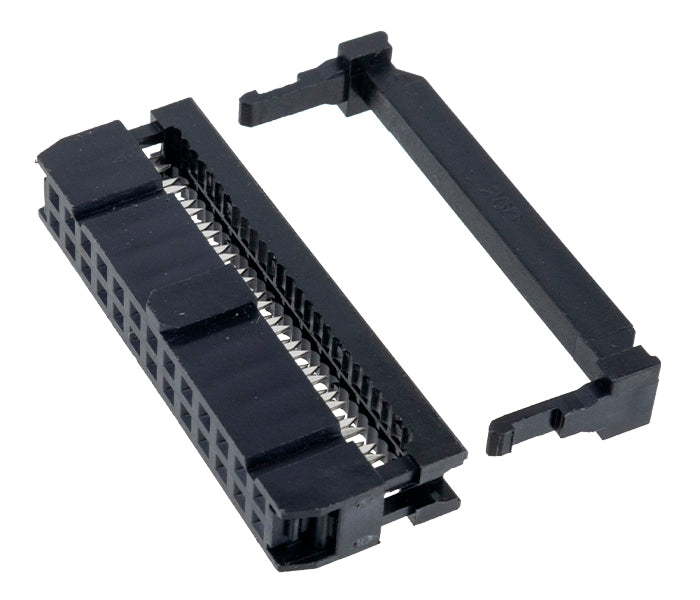

| L-26 | 26-Way |

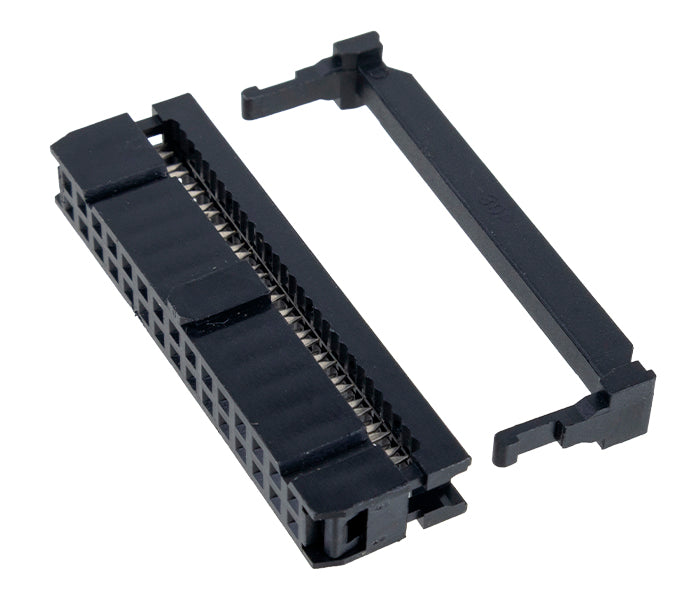

| L-30 | 30-Way |

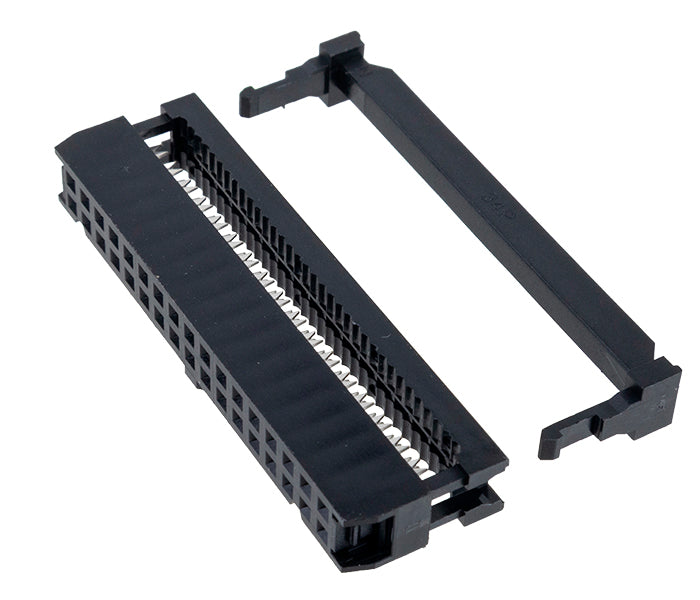

| L-34 | 34-Way |

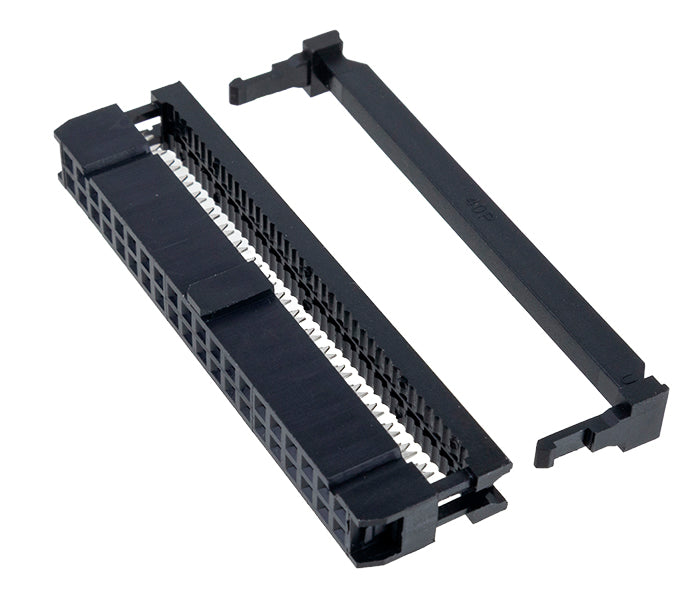

| L-40 | 40-Way |

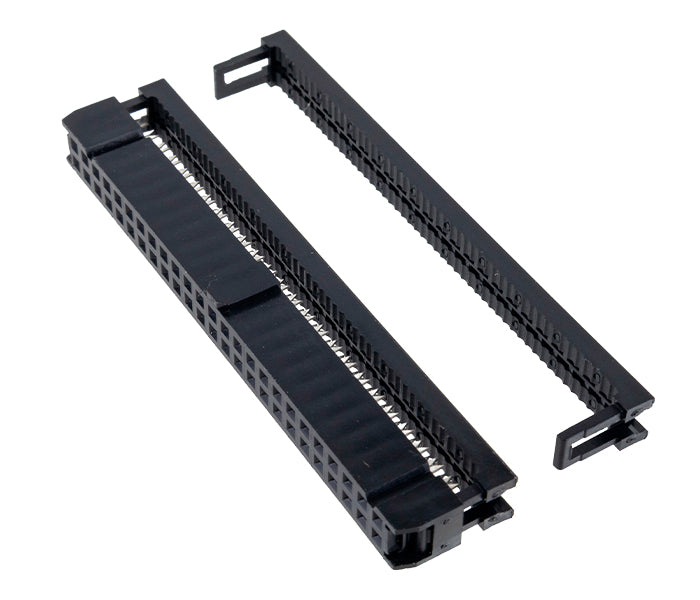

| L-50 | 50-Way |

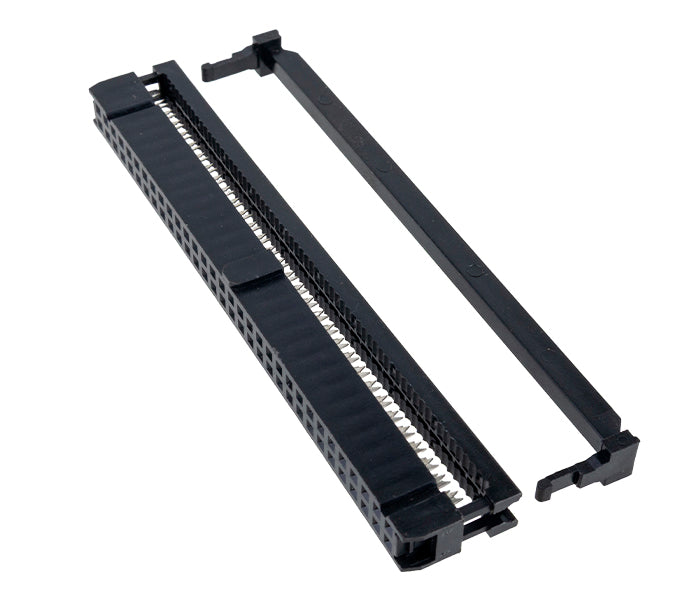

| L-64 | 64-Way |
General specifications
General specifications
| Maximum current | 1A |
| Rated voltage | 250VAC/VDC / VAC/VDC |
| Max. initial contact resistance | 15mΩ |
| Min. insulation resistance | 1000MΩ |
| Dielectric strength | 500VAC (1 minuto) |
| Operating temperature | -40 ~ 105°C |
| Insulator material | PBT UL94V-0 + 30% fiber of glass |
| Contact material | Gold-plated brass |
| Applicable cable | Cabo plano #26~28 AWG - 1.27mm |
