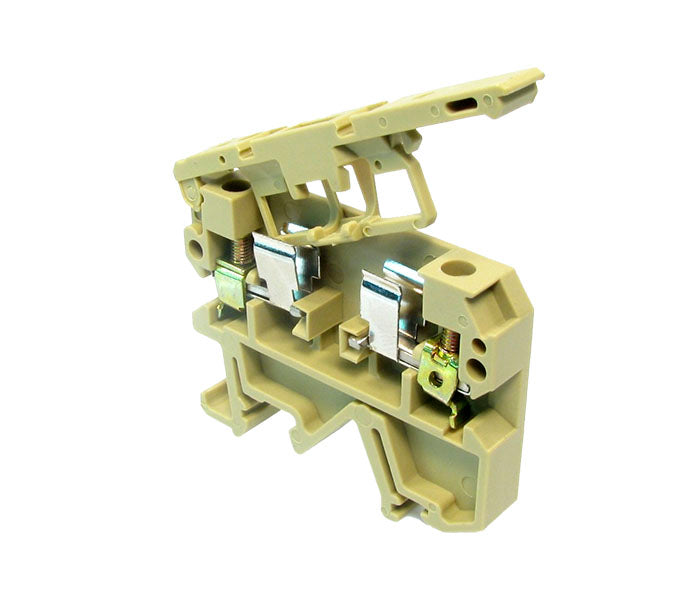

M Fuse Holder Feed Through Terminal Block
CÓD: MAB1-F
Description
Description
The MAB1-F is a compact and versatile fuse holder for electrical applications up to 500V/6.3A. Compatible with cables from 0.5 to 4mm², it offers practicality and safety in electrical panels. Available in versions with LEDs of different voltages, it facilitates visual status identification. Robust and lightweight, it is ideal for systems requiring reliable protection and easy maintenance.
- Supports up to 500V and a rated current of 6.3A
- For 0.5 to 4mm² cables (22–12 AWG) and 5x20 or 5x25mm fuses
- Versions with or without LED, available in 24V, 110V, 220V, and 380V
- 8mm thickness, lightweight 12g, and TS32/TS35 rail mounting
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| MAB1-F | - |
| MAB1-F-110V | 110VAC/VDC |
| MAB1-F-220V | 220VAC/VDC |
| MAB1-F-24V | 24VAC/VDC |
| MAB1-F-380V | 320VAC/VDC |
