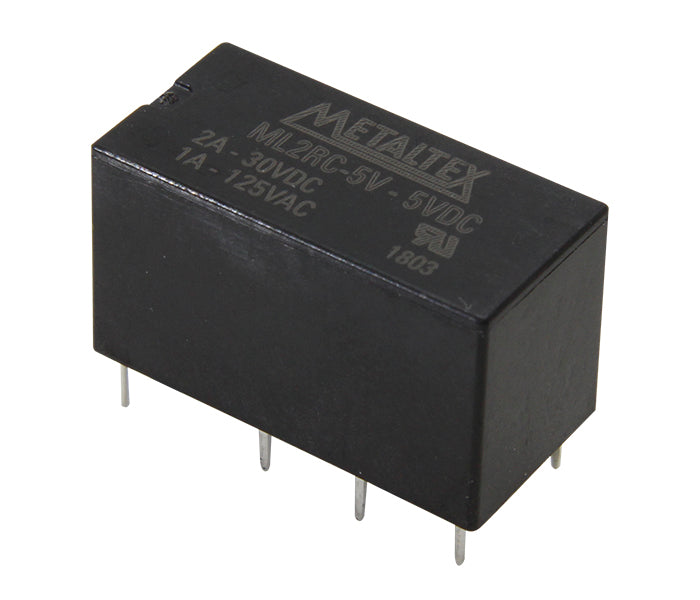

Miniature Signal Relay ML
CÓD: ML2RC-5V
Description
Description
The ML miniature relay is designed for telecommunication and electronic applications that require precision. With bifurcated contacts, high electrical isolation, and PCB mounting, it offers reliability and safety. Compact and UL approved.
- DC input and output: up to 4A
- Can be installed directly on PCB or in a socket
- Reinforced electrical insulation: dielectric strength of 2500Vrms
- Safe and practical design
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| ML2RC-5V | 5VDC |

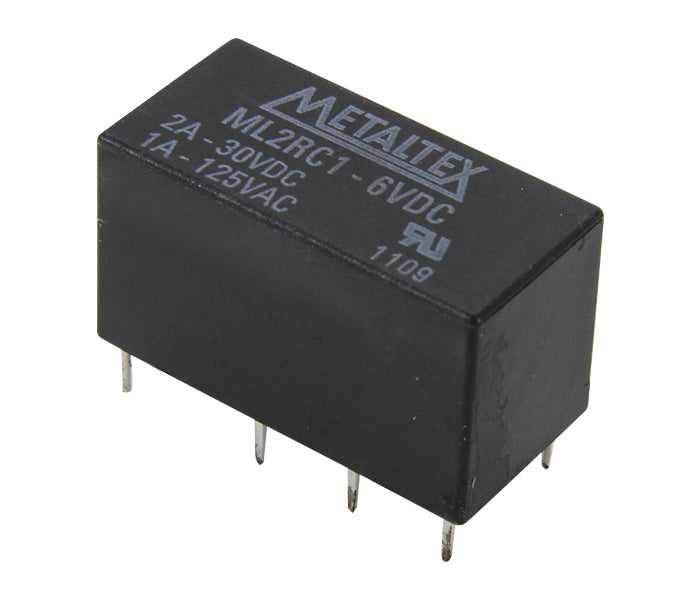

| ML2RC1 | 6VCC |

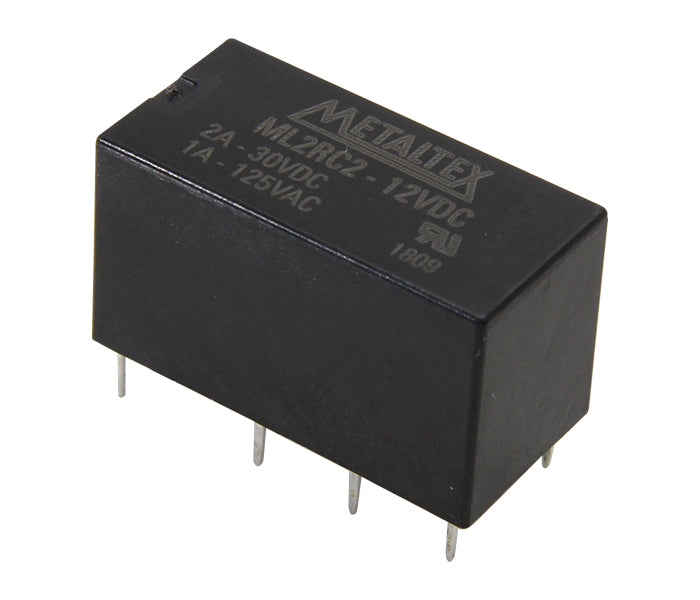

| ML2RC2 | 12VDC |

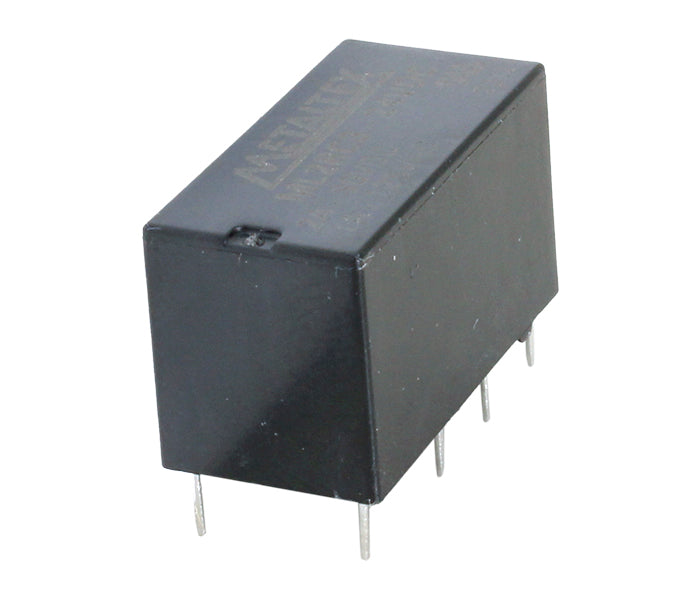

| ML2RC3 | 24VDC |
| ML2RC4 | 48VDC |
General specifications
General specifications
| Dielectric strength between coil and contacts | 1500 VAC (1 minuto) |
| Dielectric strength between open contacts | 1000 VAC (1 minuto) |
| Dielectric strength between contacts | 1000 VAC (1 minuto) |
| Capacitance between coil and contacts | 3.0 pF (máx.) |
| Capacitance between contacts abertos | 2.0 pF (máx.) |
| Capacitance between contacts | 1.0 pF (máx.) |
| Insulation resistance | 1000 MΩ min. (500 VDC) |
| Operating temperature | -40 ~ 85°C |
| Resistance à vibration (Funcional) | 10 a 55 Hz, amplitude dupla 1.5 mm |
| Resistance à vibration (Destrutiva) | 10 a 55 Hz, amplitude dupla 5 mm |
| Impact resistance (Functional) | 10 g |
| Impact resistance (Destructive) | 100 g |
