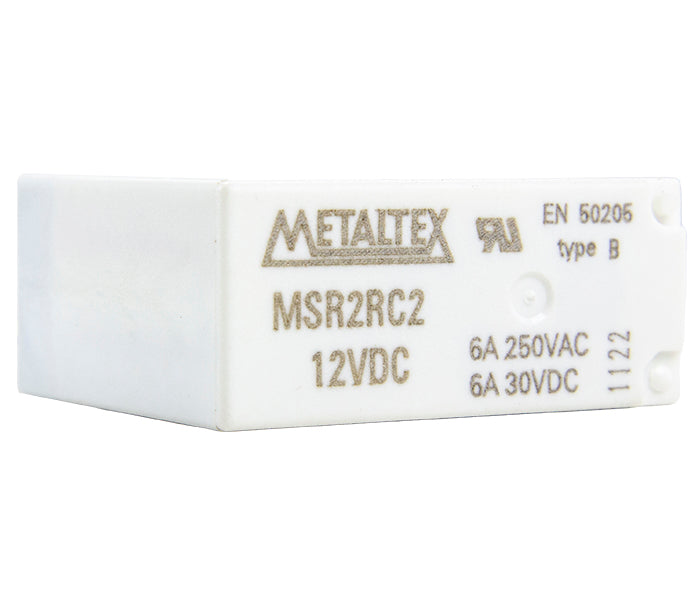

Miniature Power Relay MSR

CÓD: MSR2RC2

Description

The MSR relay with positively driven contacts is designed for maximum safety and performance in industrial systems. With high isolation capacity and two changeover contacts, it offers reliability in applications requiring precise control.

  • Positively driven contacts according to EN 50205
  • Withstands surge voltages up to 10kV between coil and contacts
  • Two changeover contacts (DPDT)

Select the options below

General specifications
Especificações of contact
Contact rating (resistive load)6A - 30VDC
6A - 250VAC
Max. switching currentIN THE – current of start: 30The
NF – current of start: 15The
Max. switching voltage400VAC; 30VDC
Power of switching max.180W / 1500VA
Max. initial contact resistance100mΩ max. (a 1A 6VDC)
Mechanical life107 operations
Life electrical (load resistiva)IN THE/IN THE: 105 operations
NF/NC: 105 operations
Operate time15ms max.
Release time10ms max.
Contact materialAgSnO₂
General characteristics
Dielectric strength between coil and contacts4000VAC (1 minuto)
Dielectric strength between open contacts1500VAC (1 minuto)
Dielectric strength between contacts3000VAC (1 minuto)
Surge voltage between coil and contacts10kV (1.2/50µs)
Voltage of surge between contacts abertos2.5kV (1.2/50µs)
Voltage of surge between conjuntos of contacts6kV (1.2/50µs)
Insulation resistance1000MΩ (a 500VDC)
Distance of creepage (creepage) between coil and contacts8mm
Distance of creepage (creepage) between contacts adjacentes5.5mm
Clearance between coil and contacts8mm
Clearance between coil and contacts adjacentes5.5mm
Vibration resistanceIN THE (IN THE): 10Hz ~ 55Hz - 1.6mm OF THE
NF (NC): 10Hz ~ 55Hz - 0.4mm OF THE
Resistance contra impactosFuncional: IN THE (IN THE): 98m/s²; NF (NC): 48m/s²
Destrutivo: 980m/s²
Humidity5 ~ 85% RH
Operating temperature-40 ~ 70°C
Approximate weight20g
