NH5 Subminiature Micro Switch
CÓD: NH5-00L1
Description
Description
The NH5 line of micro switches consists of compact electromechanical switches designed for applications that require precision and reliability in confined spaces. Suitable for automation, home appliances, and industrial equipment, they offer fast actuation and a long service life.
- Contacts with capacity up to 5A at 125/250VAC
- Terminal for wire soldering, facilitating circuit integration
- Reversible contact configuration (SPDT – NO/NC)
- Various actuator options
Select the options below
Code list
Code list
| Code | Description |
|---|---|

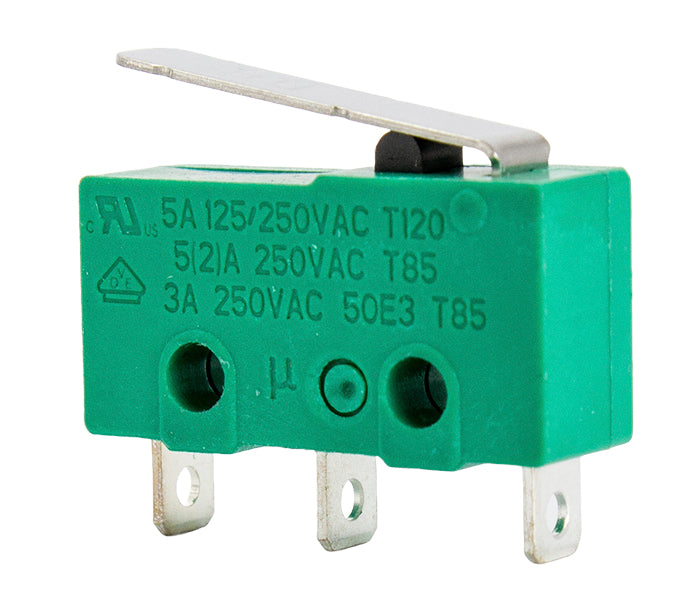

| NH5-00L1 | Short Stem |

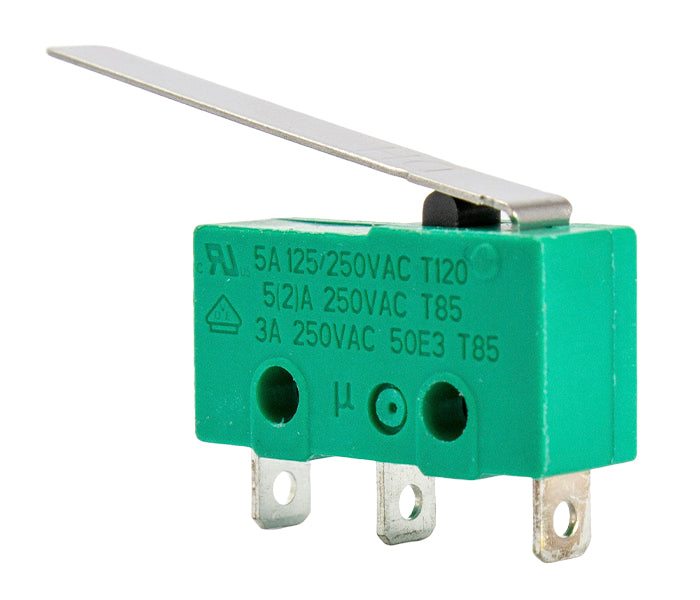

| NH5-00L4 | Long Shank |

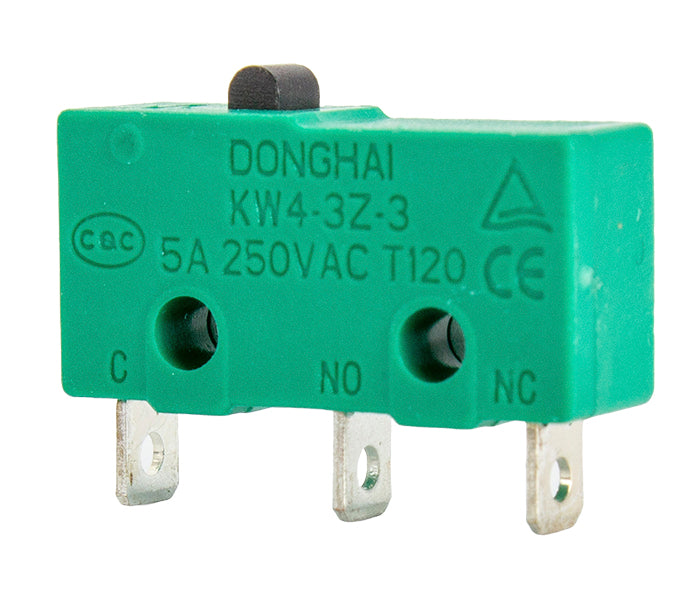

| NH5-00L | Pin |

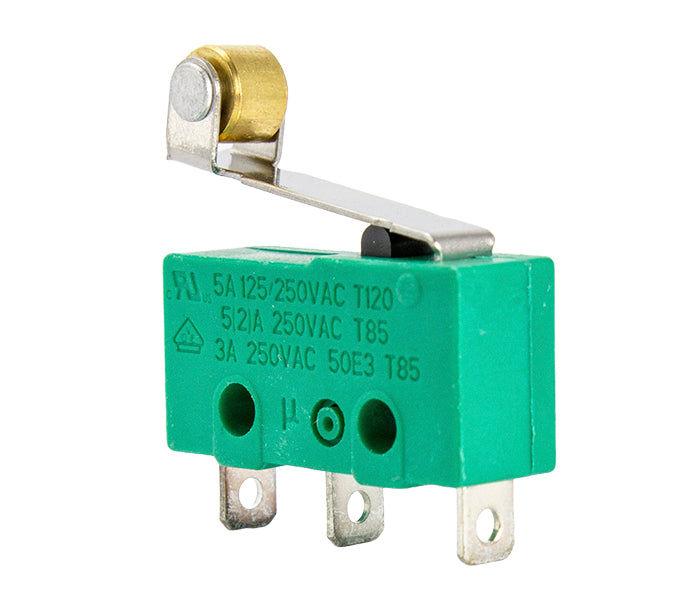

| NH5-00L3 | Roller |

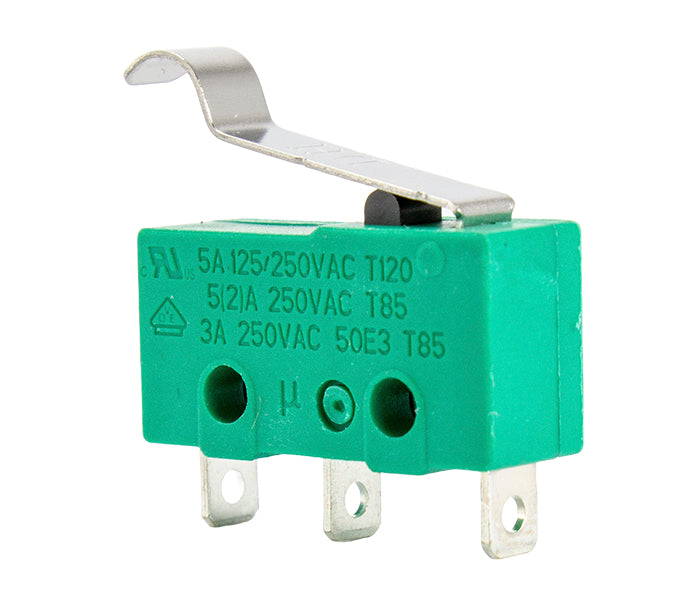

| NH5-00L2 | Simulated Roll |
General specifications
General specifications
| Maximum current | 5A 125/250 VAC |
| Initial contact resistance | 50mΩ max. |
| Minimum load | 12V / 100mA |
| Insulation resistance | 100 MΩ min. ~ 500 VDC |
| Dielectric strength | 1000VAC - 1 minuto |
| Operating temperature | -40 + 120ºC |
| Mechanical life | Mín. 107 ciclos @ 60 cpm |
| Electrical life | Mín. 105 ciclos @ 25 cpm |
| Contact arrangement | 1 changeover (SPDT) |
