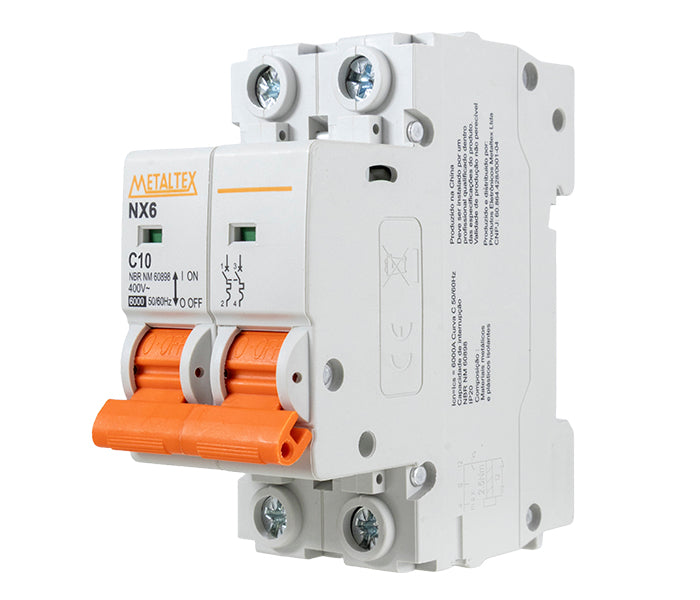

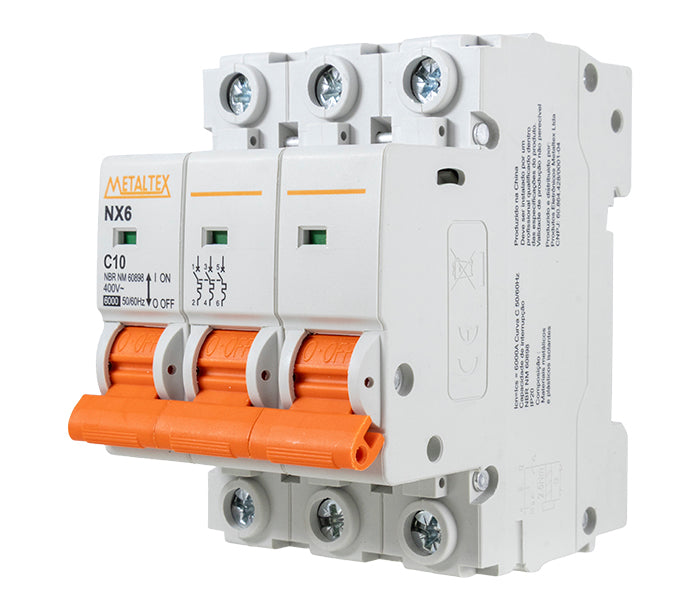

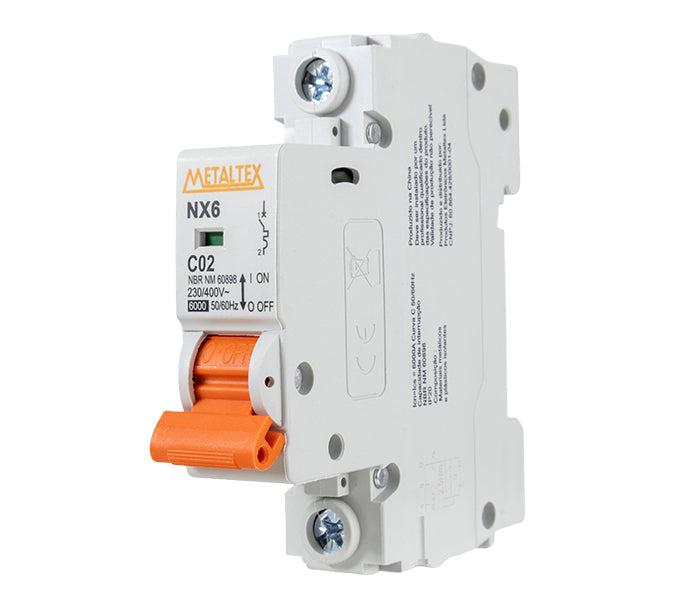

Miniature Circuit Breaker C-Curve 6kA NX6
CÓD: NX6-1C02
Description
Description

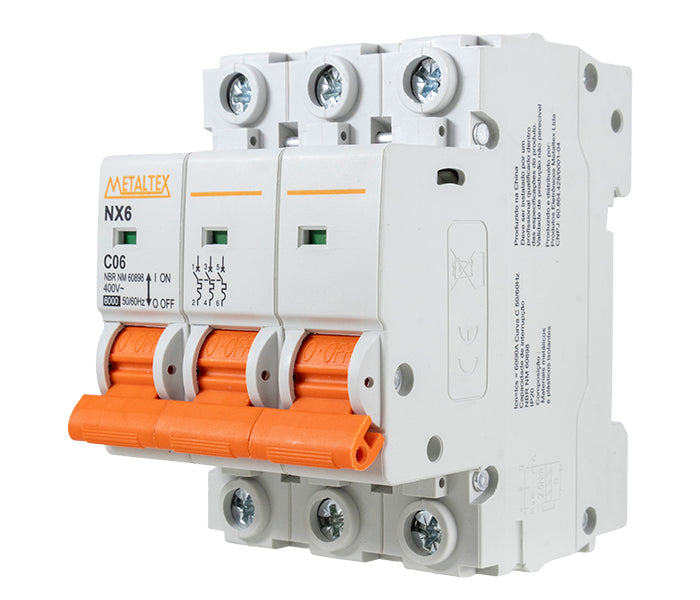

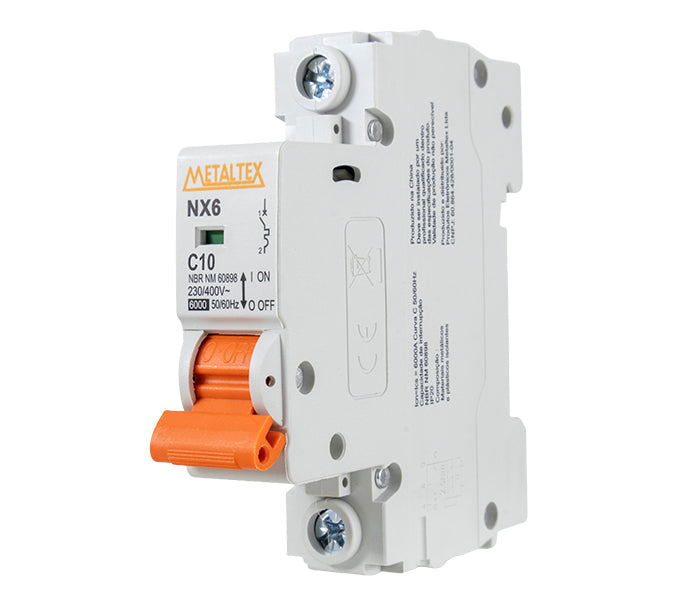

NX6 Series thermal-magnetic miniature circuit breaker, designed for protecting electrical circuits with higher current capacity. Offers safety, reliability, and compliance with technical standards.
- Rated current from 2A to 60A
- Breaking capacity of 6kA
- INMETRO certified (IEC60947-2 for 70A models)
- Available in 1, 2, or 3 poles
Select the options below
Code list
Code list

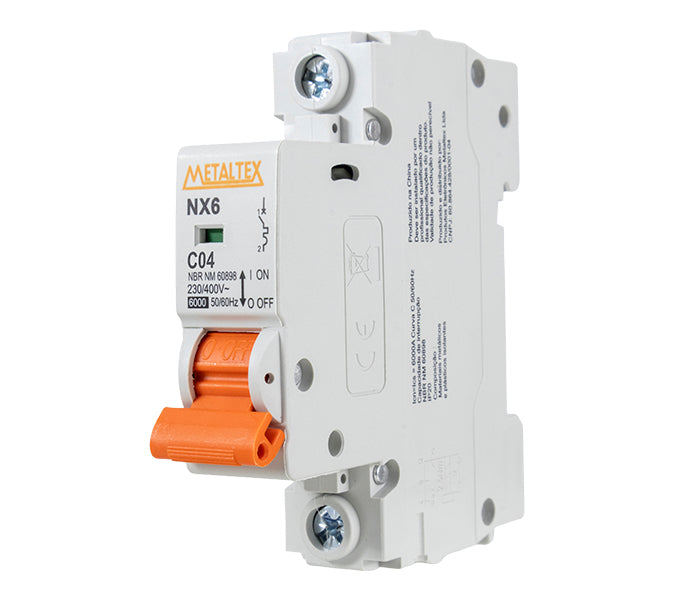

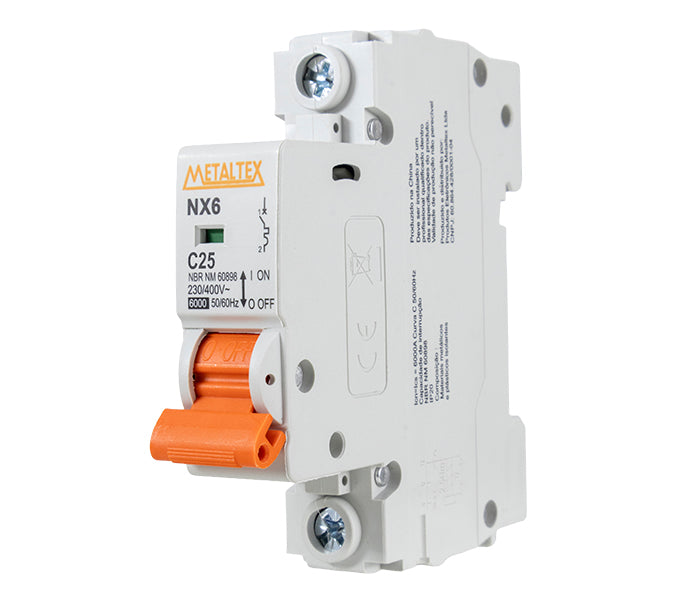

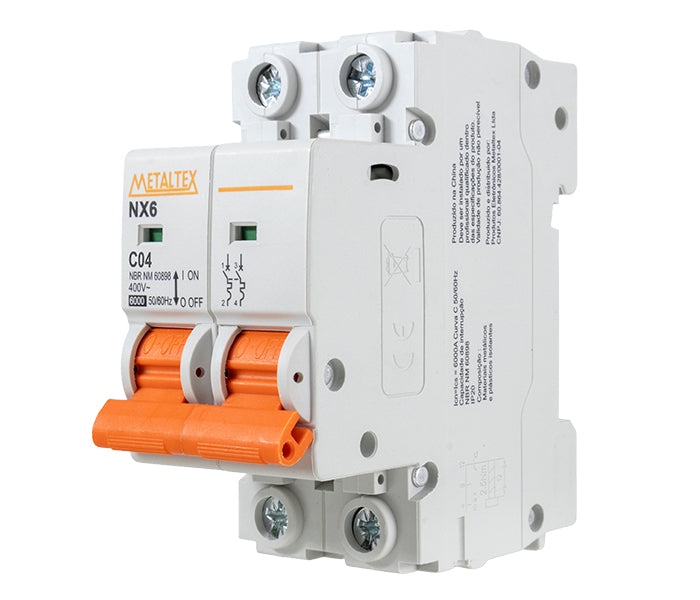

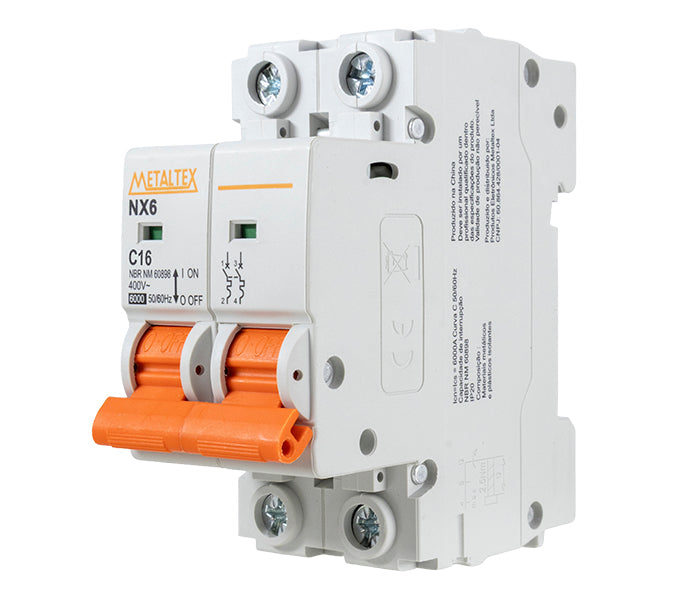

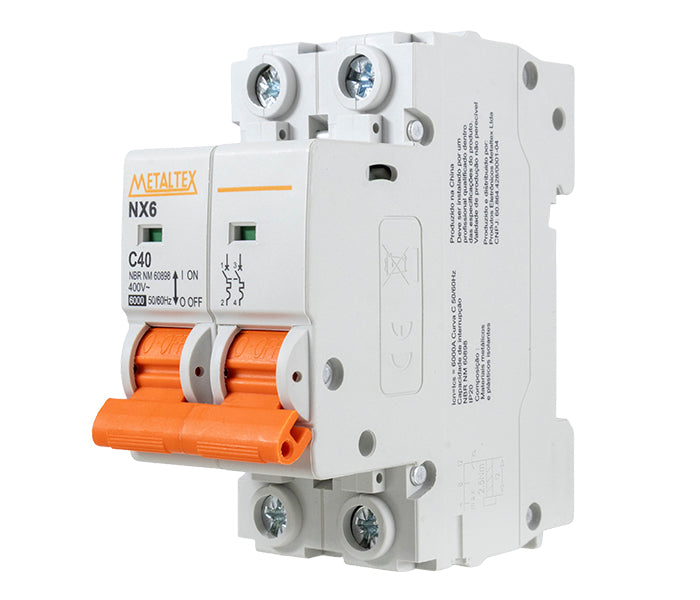

| Code | Description |
|---|---|
| NX6-1C02 | 2A / Monopolar |
| NX6-1C04 | 4A / Monopolar |
| NX6-1C06 | 6A / Monopolar |
| NX6-1C10 | 10A / Monopolar |
| NX6-1C16 | 16A / Monopolar |
| NX6-1C20 | 20A / Monopolar |
| NX6-1C25 | 25A / Monopolar |
| NX6-1C32 | 32A / Monopolar |
| NX6-1C40 | 40A / Monopolar |
| NX6-1C50 | 50A / Monopolar |
| NX6-1C63 | 63A / Monopolar |
| NX6-2C02 | 2A / Bipolar |
| NX6-2C04 | 4A / Bipolar |
| NX6-2C06 | 6A / Bipolar |
| NX6-2C10 | 10A / Bipolar |
| NX6-2C16 | 16A / Bipolar |
| NX6-2C20 | 20A / Bipolar |
| NX6-2C25 | 25A / Bipolar |
| NX6-2C32 | 32A / Bipolar |
| NX6-2C40 | 40A / Bipolar |
| NX6-2C50 | 50A / Bipolar |
| NX6-2C63 | 63A / Bipolar |
| NX6-3C02 | 2A / Tripolar |
| NX6-3C04 | 4A / Tripolar |
| NX6-3C06 | 6A / Tripolar |
| NX6-3C10 | 10A / Tripolar |
| NX6-3C16 | 16A / Tripolar |
| NX6-3C20 | 20A / Tripolar |
| NX6-3C25 | 25A / Tripolar |
| NX6-3C32 | 32A / Tripolar |
| NX6-3C40 | 40A / Tripolar |
| NX6-3C50 | 50A / Tripolar |
| NX6-3C63 | 63A / Tripolar |
General specifications
General specifications
| Standard | ABTN NBR NM60898-1 (INMETRO) IEC60898-1 / IEC/EN60947-2 |
| Poles | 1, 2, or 3 |
| Rated current | 2, 4, 6, 10, 16, 20, 25, 32, 40, 50 or 63 A / 70 A |
| Magnetic trip | Curva C - 5 ~ 10 In / 8 ~ 12 In |
| Rated voltage | 230/400 V - 50/60 Hz |
| Insulation voltage | 500 V |
| Rated interrupting capacity | 6 kA |
| Rated impulse withstand voltage | 4 kV |
| Dielectric strength | 2 kV - 1 min. |
| Pollution degree | 2 |
| Electrical life | 4,000 operations |
| Mechanical life | 10,000 operations |
| Reference temperature for thermal element adjustment | 30 °C |
| Operating temperature | -10 ~ 40 °C See temperature derating table |
| Storage temperature | -25 ~ 70 °C |
| Degree of protection | IP20 |
| Connection type | Cable and/or pin-type connection comb |
| Applicable cable | 16 ~ 50 mm² 6 ~ 1/0 AWG |
| Screw tightening torque | 2.5 Nm |
| Mounting | DIN rail TS35 |
| Weight | 1P - 75g 2P - 155g 3P - 230g |
