Automation

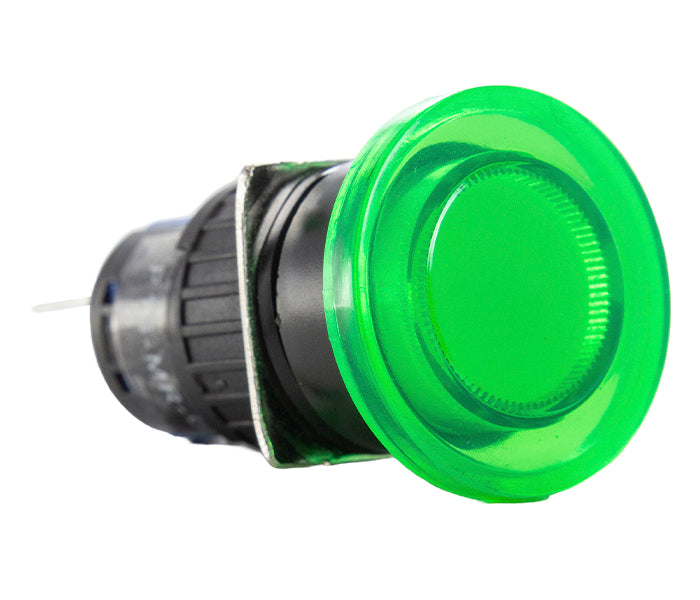

Mushroom Pushbutton P16 Plastic 16mm

CÓD: P16-MR-G1

Description

Mushroom push button, ideal for industrial applications that require easy operation and high visibility. Its ergonomic shape facilitates use in situations that demand speed, offering reliability and robustness for various commands in control panels.

  • Push button operation

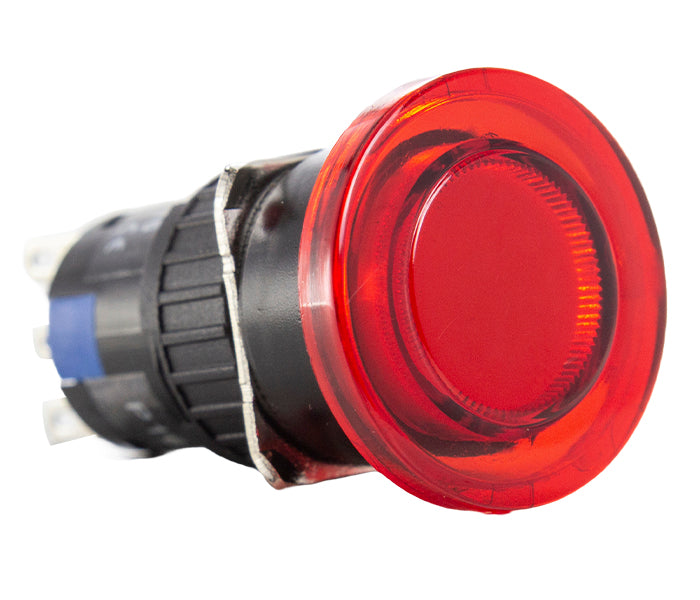

  • Available in green and red
  • 1 NO/NC contact
  • Easy installation in electrical panels

Select the options below

General specifications
Operating temperature-5 ~ 40 °C
Operating humidity45% ~ 85% (Non-condensing)
Dielectric strength2000V, 1min.
Initial contact resistance<20 mΩ
Mechanical lifeMomentary: 1,000,000 operations
Retention: 100,000 operations
Electrical lifeMomentâneo: AC: 500,000, DC: 250,000
Retention: 100,000
Degree of protectionIP40
Insulation voltage250 V (Ui)
Maximum contact current3 A (Ith)
Lamp consumption<20 mA
Operating current rangeAC12: 1 A–110 V; 0.5 A–220 V
AC15: 0.7 A–110 V; 0.5 A–220 V
DC12: 1 A–24 V; 0.2 A–110 V
DC15: 0.7 A–24 V; 0.2 A–110 V
