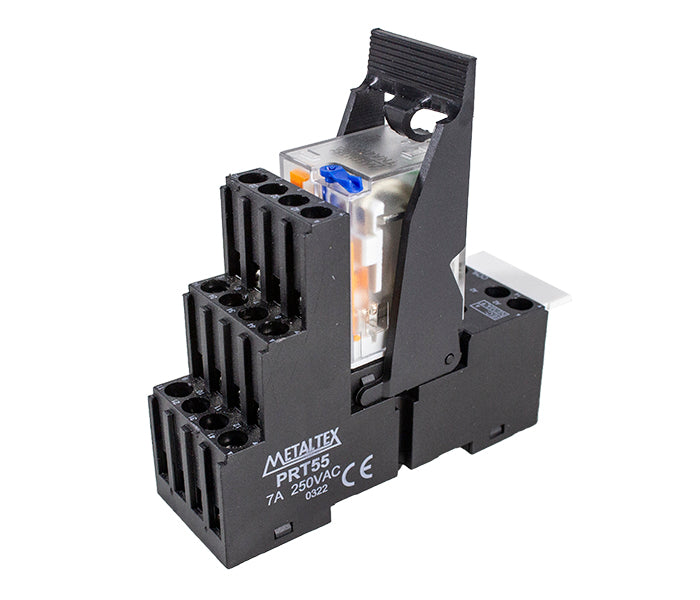

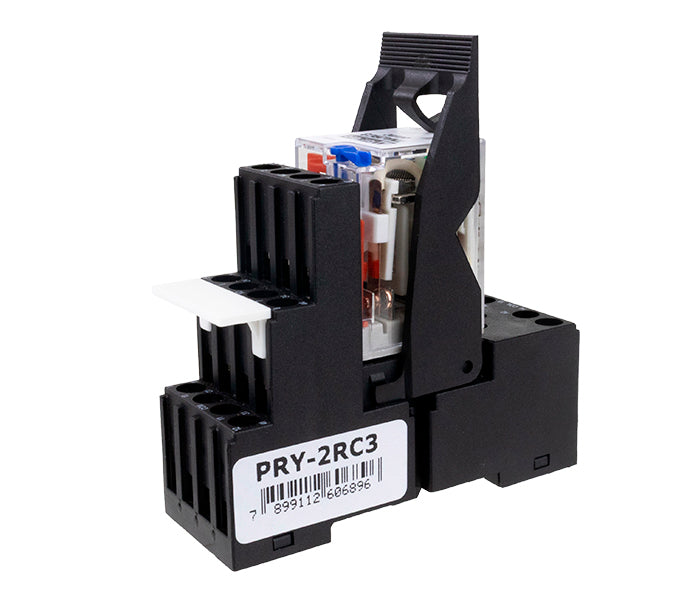

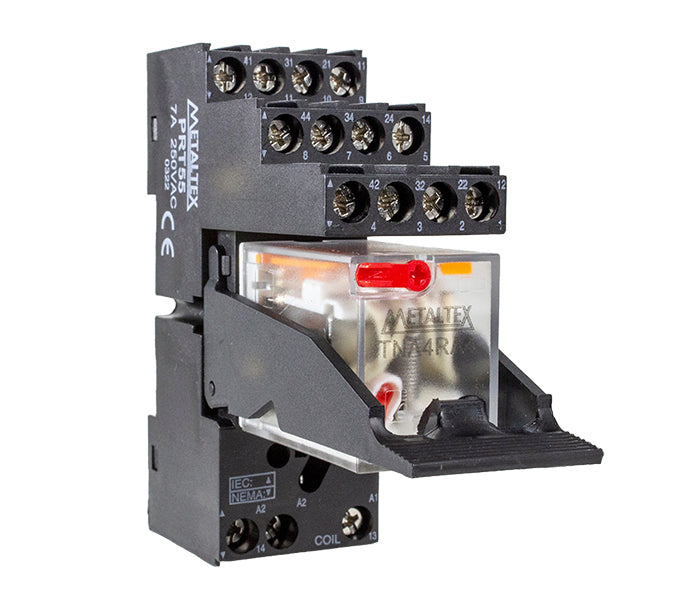

PRY Relay Interface Screw Connection
CÓD: PRY-2RC2
Description
Description
The PRY Relay Interface with screw connection offers safety and versatility for industrial electrical systems. With different voltage variations, number of contacts, and current capacity, it adapts to various applications in automation and control.
- For TNA relays
- Available in 12VDC, 24VDC, 110VAC, 220VAC, and up to 250VAC/30VDC versions
- Screw connection: ensures firmness and stability in electrical installation
- Options for 2 or 4 contacts, with 5A or 10A capacities
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| PRY-2RC2 | 12VDC / 2 REV/10A |
| PRY-4RC2 | 12VDC / 4 RPM/5A |
| PRY-2RA22 | 24VAC / 2 REV/10A |
| PRY-4RA22 | 24VAC / 4 RPM/5A |
| PRY-2RC3 | 24VDC / 2 REV/10A |
| PRY-4RC3 | 24VDC / 4 RPM/5A |
| PRY-2RA3 | 110VAC / 2 REV/10A |
| PRY-4RA3 | 110VAC / 4 RPM/5A |
| PRY-2RA4 | 220VAC / 2 REV/10A |
| PRY-4RA4 | 220VAC / 4 RPM/5A |
| PRY-2RC66 | 250VAC/30VDC / 2 REV/10A |
| PRY-4RC66 | 250VAC/30VDC / 4 RPM/5A |
