PZ3 Digital Photoelectric Sensor
Description
Description

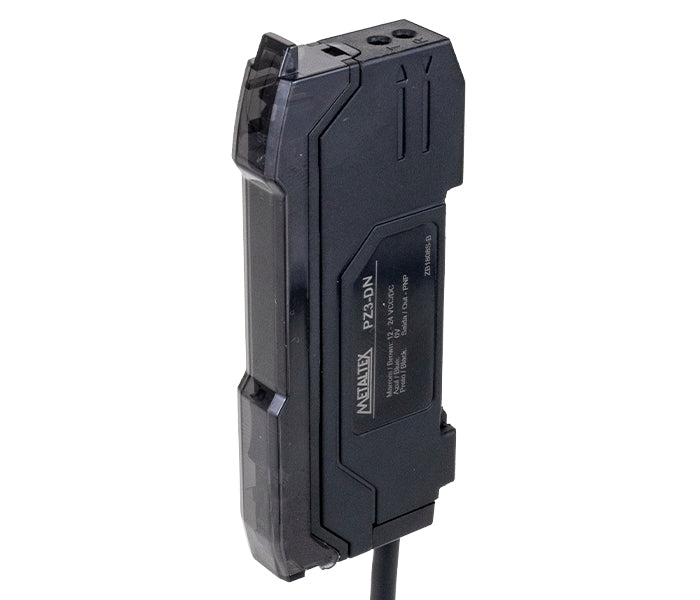

The PZ3 series digital photoelectric sensor for fiber optics offers high speed and precision in detection. With NPN or PNP output options and NO/NC selection via setup, it adapts to different industrial applications. It features short-circuit, overload, and reverse polarity protection, ensuring reliability in demanding environments.
- Red LED light source
- Adjustable response time (50µs to 16ms)
- Configurable NPN or PNP outputs
- IP67 protection rating
Select the options below
CÓD: PZ3-DN
Code list
Code list
| Code | Description |
|---|---|
| PZ3-DN | NPN |
| PZ3-DP | PNP |
General specifications
General specifications
| Light source | Red LED |
| Response time | 50 µs (HIGH SPEED) 250 µs (FINE) 1 ms (SUPER) 16 ms (MEGA) |
| Output selection | NO/NC via adjustment |
| Delay function | Timer of retardo of desligamento Timer of retardo in the actuation Timer pulse single |
| Control output | Current of load: ≤100 mA Voltage residual: ≤1 V |
| Protections | Short-circuit protection Overload protection Reverse-polarity protection |
| Supply voltage | 12 a 24 VDC ±10% Ripple (P-P): ≤10% |
| Power consumption* | NPN: Normal: ≤900 mW (24 V: ≤ 36 mA; 12 V: ≤ 48 mA) PNP: Normal: ≤950 mW (24 V: ≤ 39 mA; 12 V: ≤ 52 mA) |
| Anti-luz ambiente | Lamp incandescente: ≤ 20,000 lux Light of the dia: ≤ 30,000 lux |
| Operating temperature | -20 to 55 °C (no freezing) |
| Construction material | PC |
| Connection method | 2 m PVC cable |
| Weight | Approximately 66 g |
*High-speed mode increases power consumption by 160 mW (7 mA)
