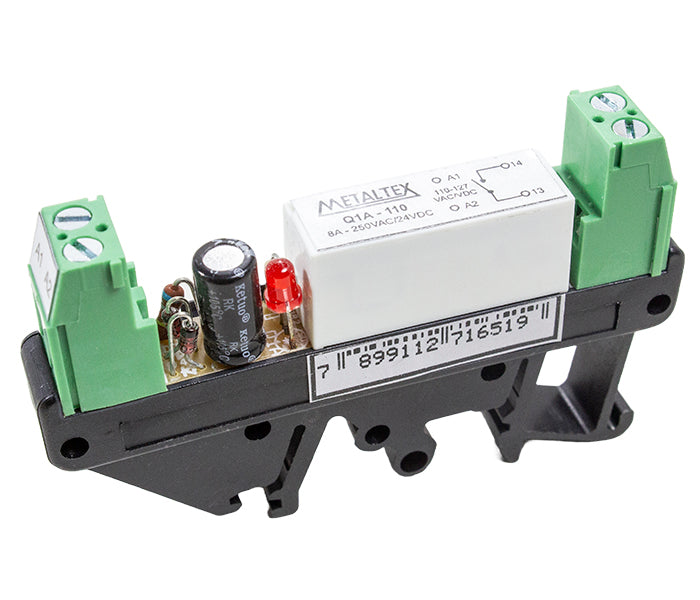

Q1 Relay Interface
CÓD: Q1A-12
Description
Description
The Q1 Relay Interface offers flexibility and safety for electrical and industrial applications. With various contact configurations and voltages, it adapts to different control and automation needs.
- Available in 1NO, 1NC, 1NO+1NC, and 1CO versions with currents up to 8A or 5A
- Options for 12V, 24V, 48V, 110V, 125V, and 220VAC/VDC
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| Q1A-12 | 12VAC/VDC / 1NA / 8A |

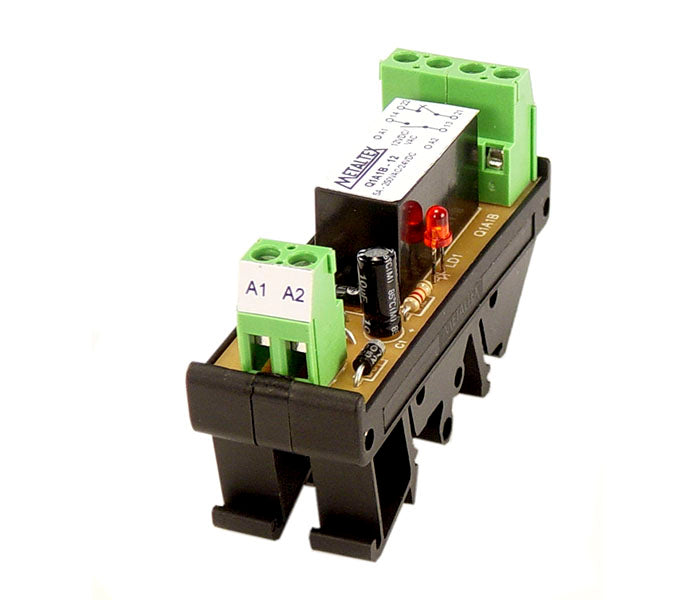

| Q1A1B-12 | 12VAC/VDC / 1NO+1NC / 5A |
| Q1B-12 | 12VAC/VDC / 1NF / 8A |

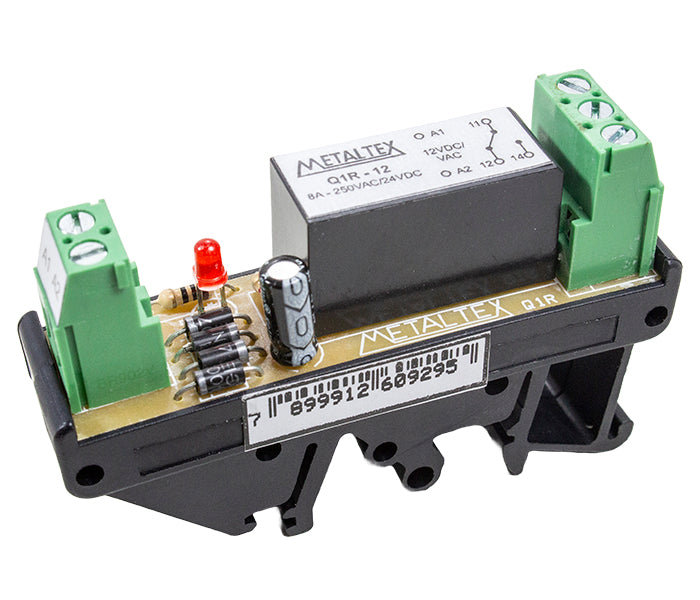

| Q1R-12 | 12VAC/VDC / 1 REV / 8A |

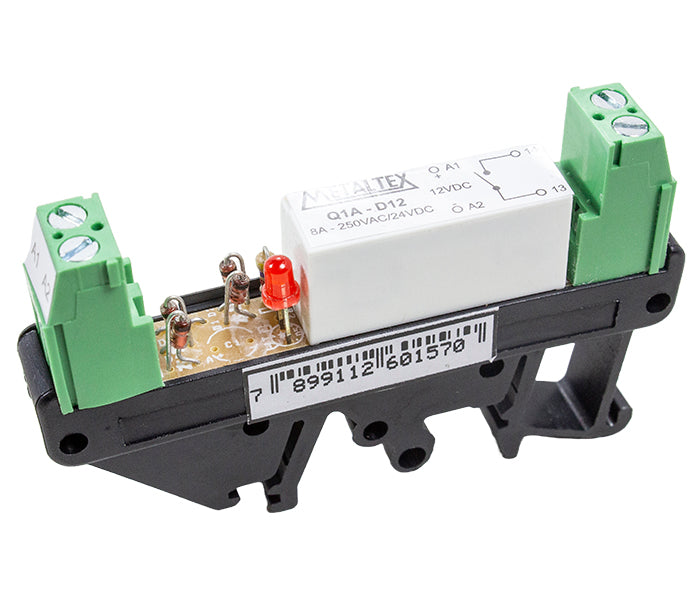

| Q1A-D12 | 12VDC / 1NA / 8A |
| Q1A1B-D12 | 12VDC / 1NO+1NC / 5A |
| Q1B-D12 | 12VDC / 1NF / 8A |

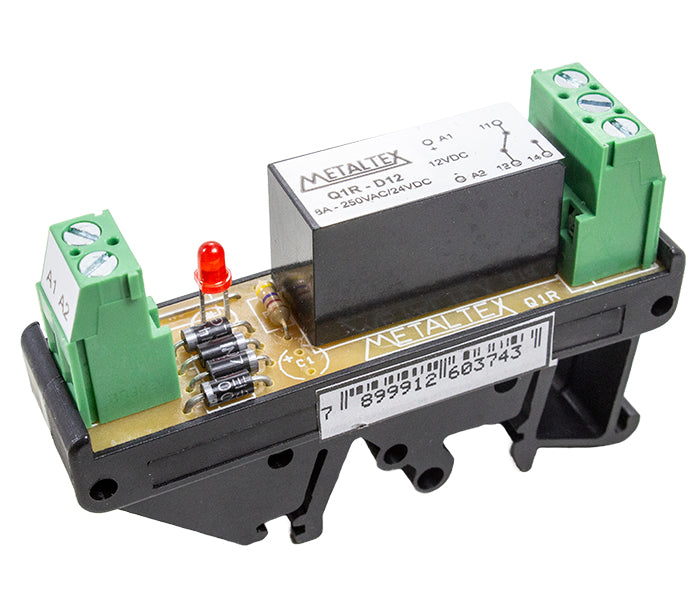

| Q1R-D12 | 12VDC / 1 REV / 8A |

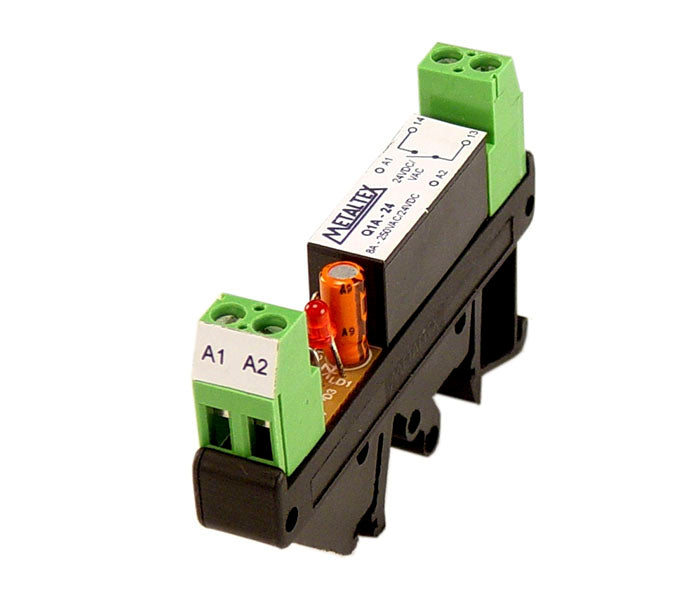

| Q1A-24 | 24VAC/VDC / 1NA / 8A |

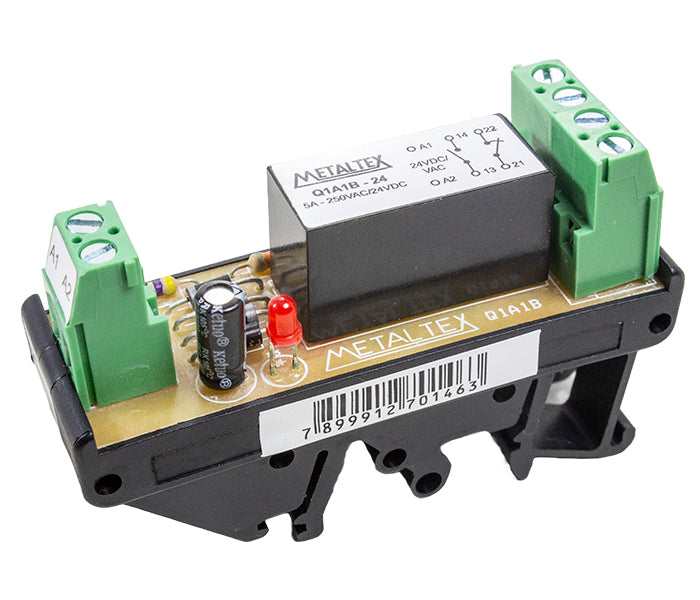

| Q1A1B-24 | 24VAC/VDC / 1NO+1NC / 5A |

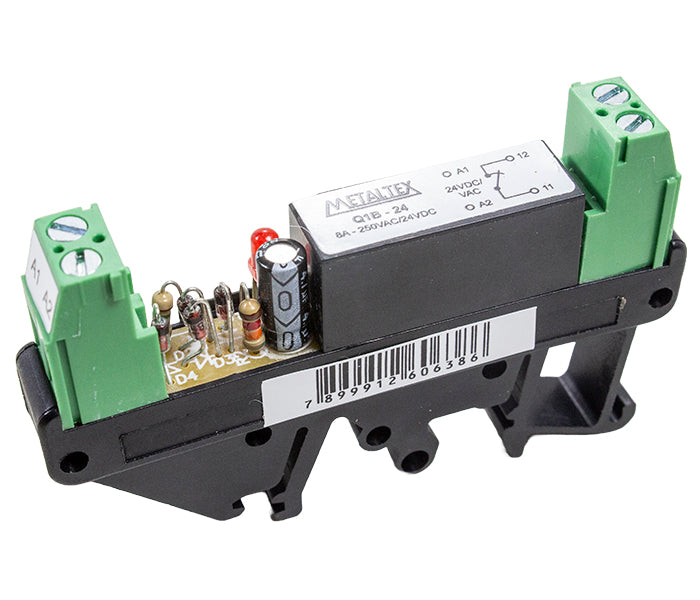

| Q1B-24 | 24VAC/VDC / 1NF / 8A |

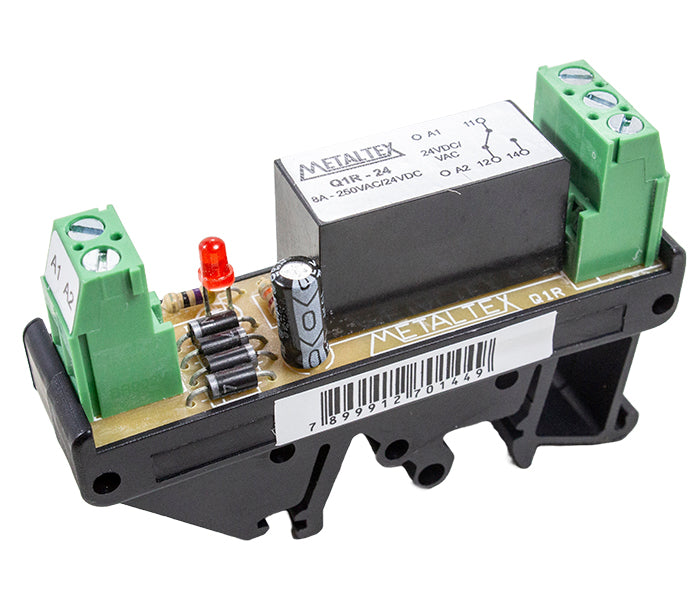

| Q1R-24 | 24VAC/VDC / 1 REV / 8A |
| Q1A-D24 | 24VDC / 1NA / 8A |
| Q1R-D24 | 24VDC / 1 REV / 8A |
| Q1A-48 | 48VAC/VDC / 1NA / 8A |

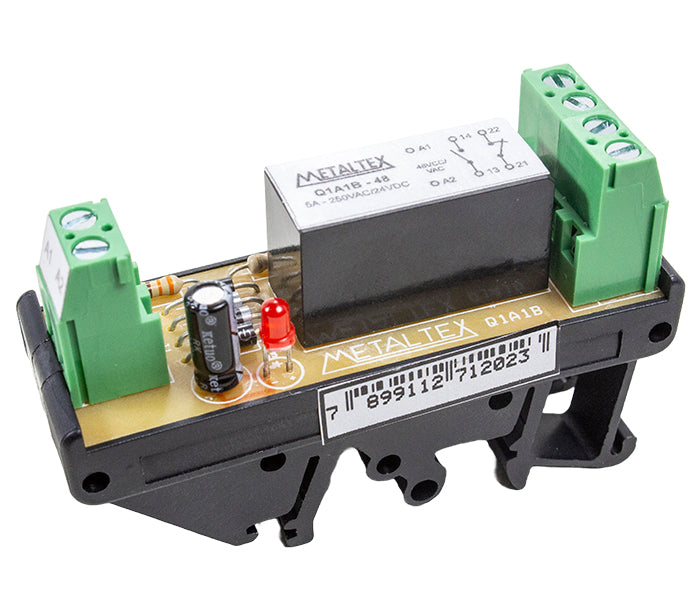

| Q1A1B-48 | 48VAC/VDC / 1NO+1NC / 5A |

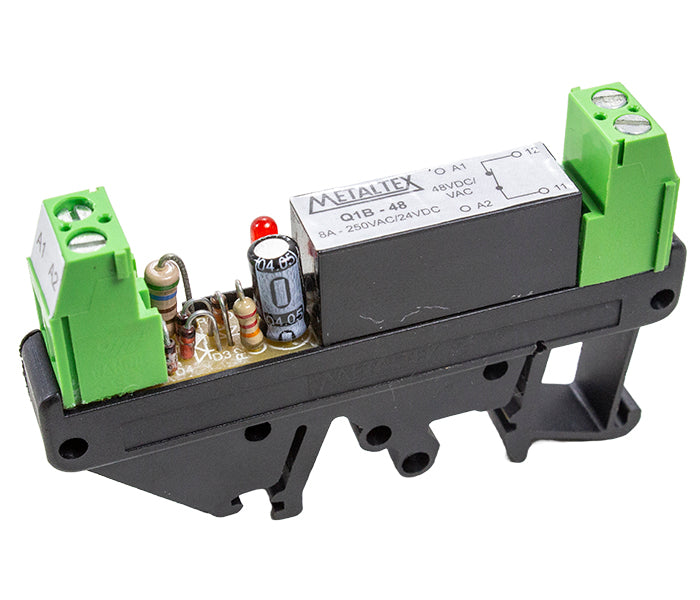

| Q1B-48 | 48VAC/VDC / 1NF / 8A |

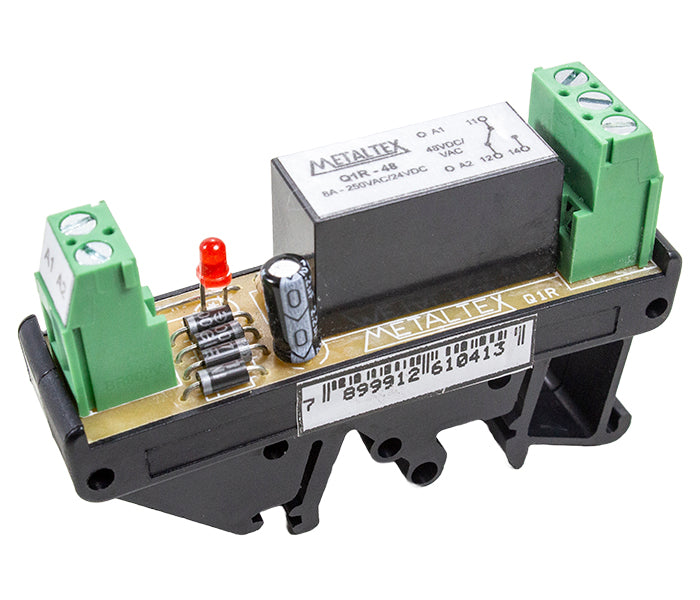

| Q1R-48 | 48VAC/VDC / 1 REV / 8A |
| Q1A-110 | 110VAC/VDC / 1NA / 8A |

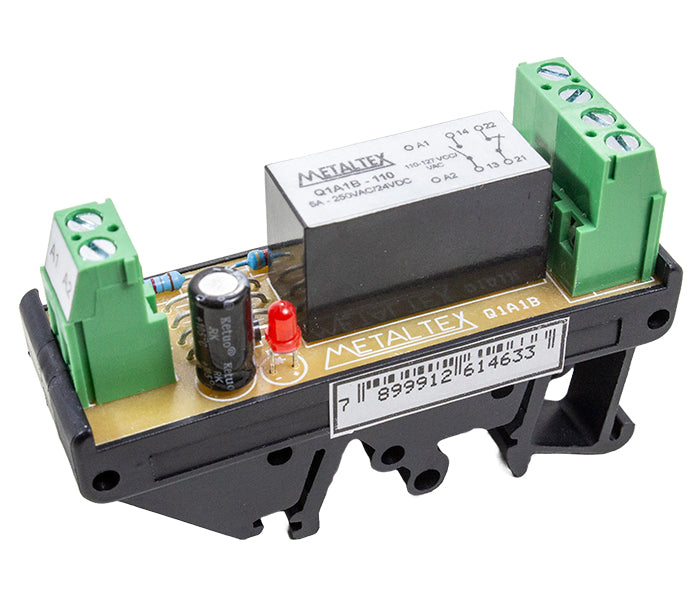

| Q1A1B-110 | 110VAC/VDC / 1NO+1NC / 5A |
| Q1B-110 | 110VAC/VDC / 1NF / 8A |

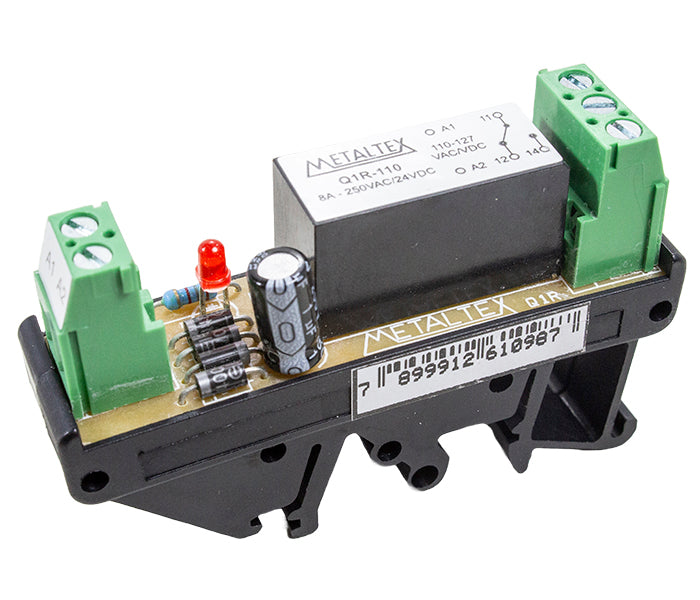

| Q1R-110 | 110VAC/VDC / 1 REV / 8A |
| Q1R-D125 | 125VDC / 1 REV / 8A |

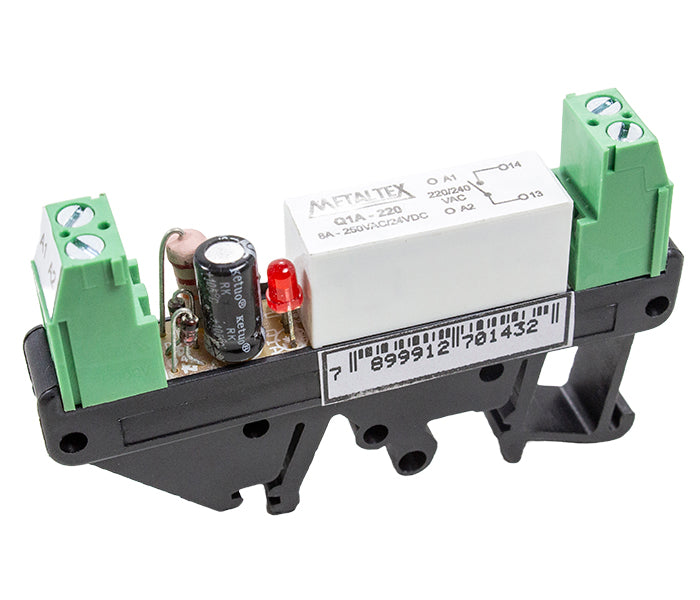

| Q1A-220 | 220VAC/VDC / 1NA / 8A |

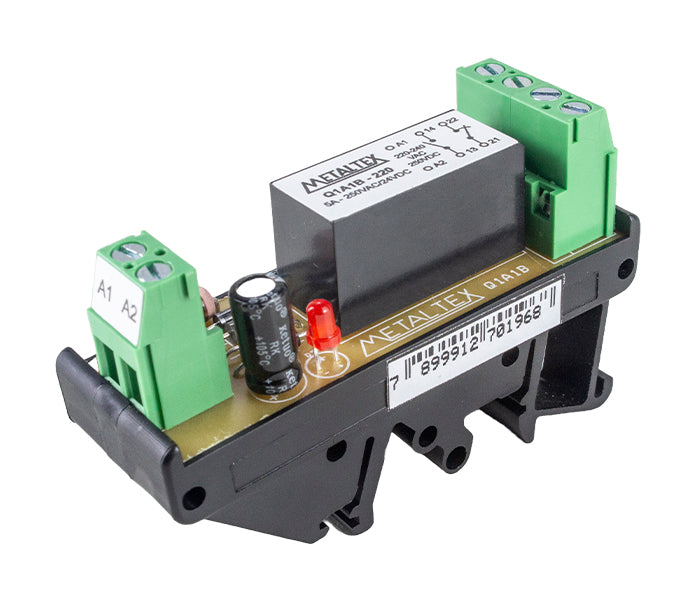

| Q1A1B-220 | 220VAC/VDC / 1NO+1NC / 5A |

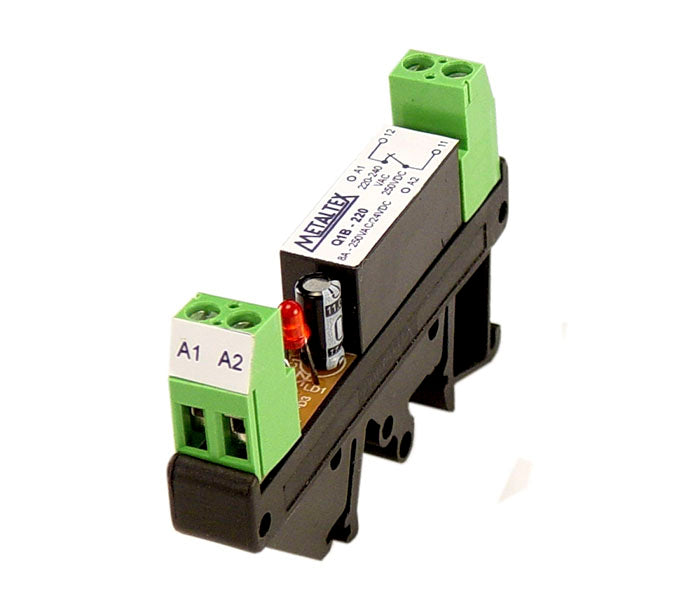

| Q1B-220 | 220VAC/VDC / 1NF / 8A |

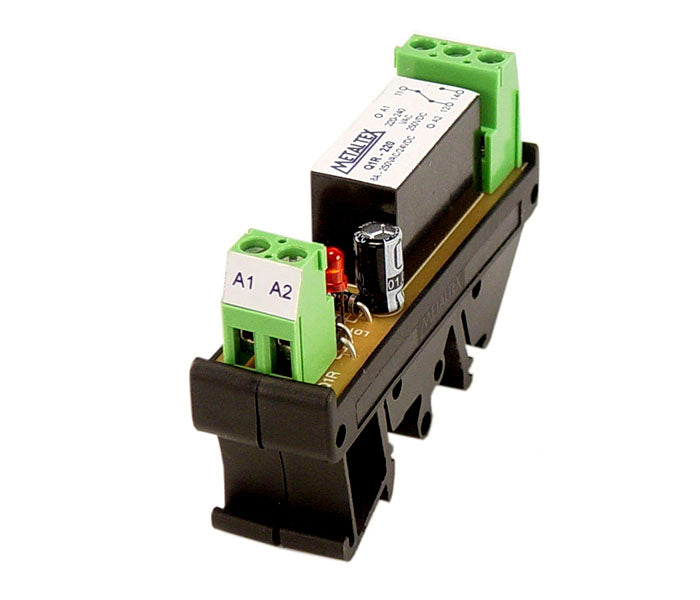

| Q1R-220 | 220VAC/VDC / 1 REV / 8A |
