Solid State Relay with Heat Sink and Fan

CÓD: TZC-60AF/DT+V

Description

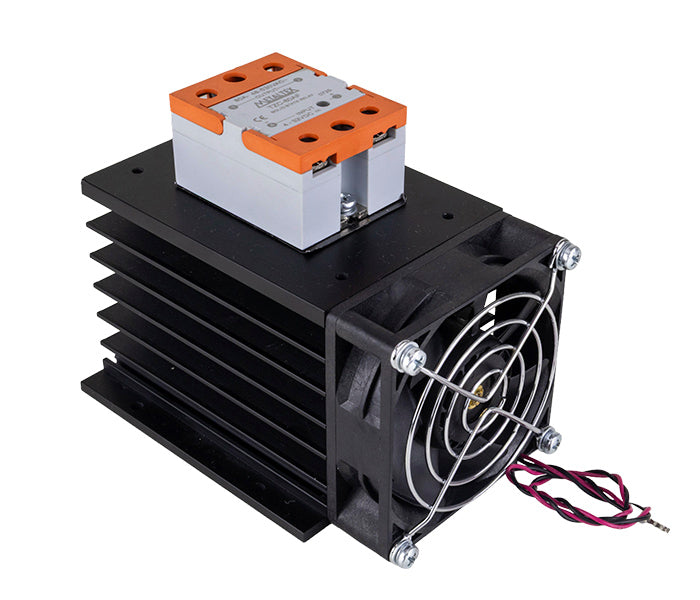

The TZC-60AF/DT+V, TZC-80AF/DT+V and TZC-100AF/DT+V assemblies are solid state relays with heat sink and forced ventilation, designed for load switching applications in industrial automation and control systems. They feature a 4 to 32 VDC control input and allow switching loads of up to 100 A, with output voltage up to 530 VAC depending on the model. The assembly includes a high-performance fan powered at 24 VDC, providing greater thermal dissipation efficiency and contributing to safe and reliable operation in high-current applications.

  • Output current: 60, 80 or 100 A
  • Load output: 48 to 440 VAC or 48 to 530 VAC
  • Control input: 4 to 32 VDC
  • Mounting: On the mounting plate

Select the options below

General specifications
CodeTZC-60AF/DT+VTZC-80AF/DT+VTZC-100AF/DT+V
Input (control)4 ~ 32 VDC
Output (load)60A @ 48~440 VAC80A @ 48~530 VAC100A @ 48~530 VAC
Mounting methodOn mounting plate, via 4 holes
Dimensions (L x W x H)142.0 x 100.0 x 113.5mm
Unit weight840g
Thermal resistance0.25 °C/W
Thermal interfaceTSP-1 thermal pad
CoolingHigh-performance fan, Power supply: 24VDC, Consumption: 700mA
