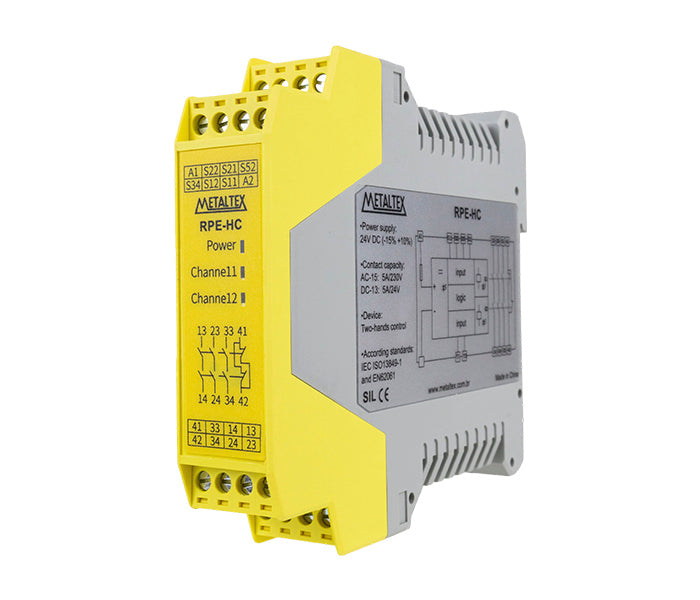

Bimanual Safety Relay RPE-HC
CÓD: RPE-HC
Description
Description
The RPE-HC Safety Relay is designed for the safe monitoring of two-hand control commands in industrial applications, providing high reliability and operator protection. With dual channel and redundancy, it monitors short circuits and cross connections, and also features monitored reset and Category 4 / PL e and SIL 3 safety certifications.
- Category 4 / PL e and SIL 3
- Two-hand control command
- Dual channel with redundancy
- Short-circuit monitoring
General specifications
General specifications
| Model | RPE-HC |
| Function | Two-Hand control simultaneity |
| Supply power | 24 VDC |
| Voltage range | 85% to 110% |
| Power consumption | < 3 W |
| Input | Dual-Channel |
| Safety contacts | 3 NO (13-14 / 23-24 / 33-34) |
| Auxiliary contacts | 1 NC (41-42) |
| Switching capacity | AC15: 5 A / 250 VCA DC13: 6 A / 24 VCC |
| Contact resistance | ≤ 100 mΩ |
| Status display | 3 Green LEDs |
| Mechanical life | 10,000,000 operations |
| Rated thermal current | 5 A |
| Short-Circuit protection | 6 A fast or 4 A slow |
| Response time (max.) | 10 ms |
| Cross-Circuit detection | Yes |
| Diagnostic coverage (DC) | 99% (High) |
| Probability of dangerous failure per hour (PFHd) | 2.80 × 10⁻¹⁰ 1/h |
| Stop category | CAT0 |
| Safety rating | Cat. 4 / PLe / SIL 3 |
| Approvals / Certifications | CE / ISO / SIL3 / PLe |
| Applicable Standards / Compliance | BS EN 62061: 2015, ISO 13849-1: 2015, ISO13849-2: 2012, IEC EN 60204-1 |
| Safety integrity level (SIL) | SIL 3 (in accordance with BS EN 62061: 2015) |
| Performance level (PL) | PLe (in accordance with ISO 13849-1: 2015) |
