TM18 Tubular Photoelectric Sensor
CÓD: TM18B-20MDN-K12
Description
Description
The M18 cylindrical photoelectric sensor offers precise and reliable detection for industrial automation applications. With a compact metal body, IP67 protection, and an LED status indicator, it ensures high resistance, easy installation, and excellent performance even in environments with light interference. Available in diffuse, polarized retroreflective, and through-beam versions, with NPN or PNP outputs.
- Diffuse, polarized retroreflective, and through-beam models
- NPN or PNP outputs
- Sensing distance options from 40cm to 20m
- IP67 protection rating
Select the options below
Code list
Code list
| Code | Description |
|---|---|

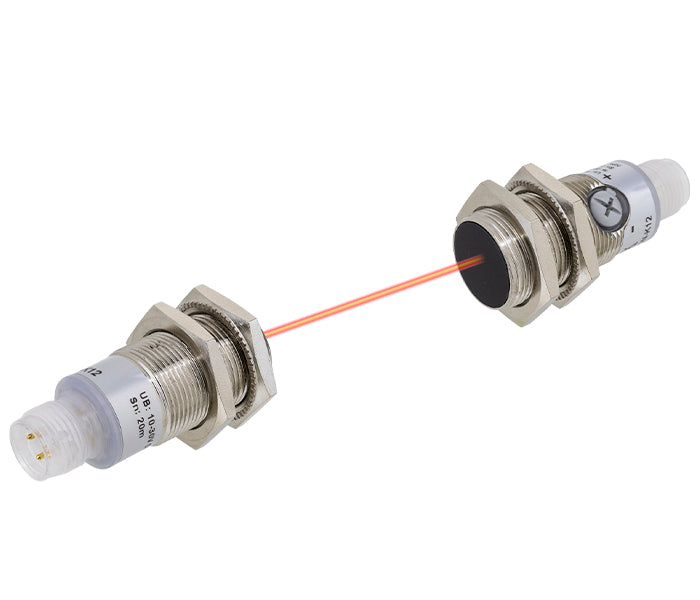

| TM18B-20MDN-K12 | Barrier / 20m / NPN |
| TM18B-20MDP-K12 | Barrier / 20m / PNP |

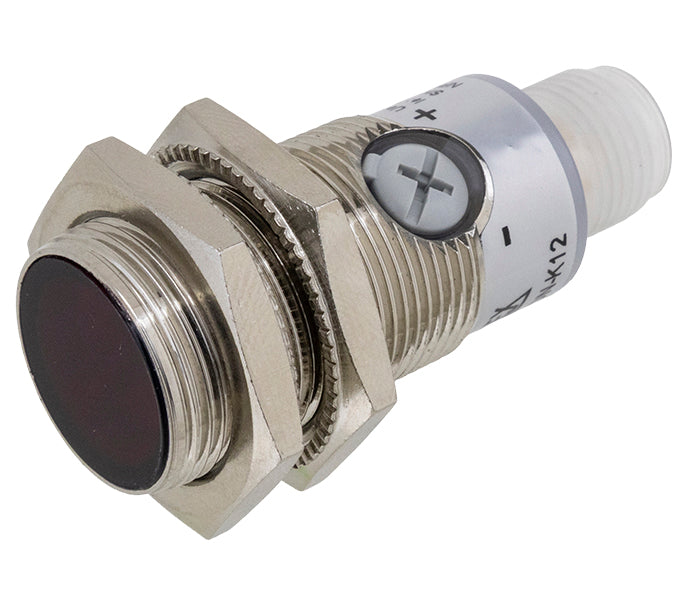

| TM18D-40DN-K12 | Diffuse / 40cm / NPN |
| TM18D-40DP-K12 | Diffuse / 40cm / PNP |

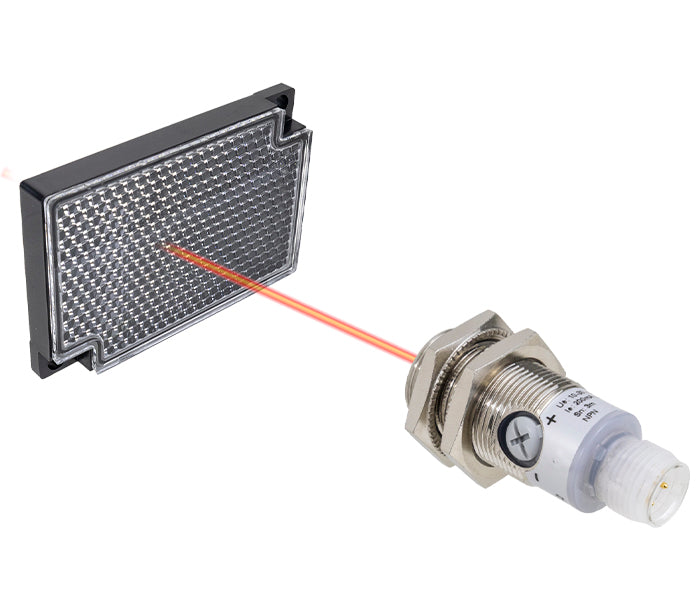

| TM18R-3MDN-K12 | Retroreflective Polarized / 3m / NPN |
| TM18R-3MDP-K12 | Retroreflective Polarized / 3m / PNP |
General specifications
General specifications
| Model | Diffuse | Polarized retroreflective | Barreira | |||
| Signal of output | PNP | NPN | PNP | NPN | PNP | NPN |
| Sensing distance | 40 centímetros | 3 metros | 20 metros | |||
| Power supply | 10 a 30 VDC ±10% | |||||
| Light source | Light red visível | Infravermelho | ||||
| Tamanho of the target standard | *15 x 15 mm @40 cm | *45 x 45 mm @100 cm | Ø15 mm objeto opaco | |||
| Response time | ≤ 0.5 ms | ≤ 0.5 ms | ≤ 1 ms | |||
| Load current | ≤ 200 mA | |||||
| Consumption current | ≤ 20 mA | Emissor: ≤ 20 mA Receptor: ≤ 20 mA | ||||
| Proteções of circuit | Short circuit, overload and reversal of polarity | |||||
| Degree of protection | IP67 | |||||
| Imunidade à luz ambiente | Interferência of the light solar ≤ 10,000 lux and interferência of the light incandescente ≤ 3,000 lux | |||||
| Logic of output | IN THE or NF (selecionável per wire) Pin 2 - conectado ao pole positivo, modo IN THE ativado Pino 2 - conectado ao polo negativo, modo NF ativado | |||||
| Connection | Conector M12 with 4 pinos | |||||
| Operating temperature | -25 a 55 °C | |||||
| Storage temperature | -35 a 70 °C | |||||
| Body material | Alloy of nickel-copper | |||||
| Adjustment of distance | Potentiometer of adjustment of volta single | |||||
| Itens inclusos | Porca M18 (2 unidades) | Porca M18 (2 unidades) and espelho refletor | Porca M18 (4 unidades) | |||
| Relative humidity | 35 a 95% non-condensing | |||||
