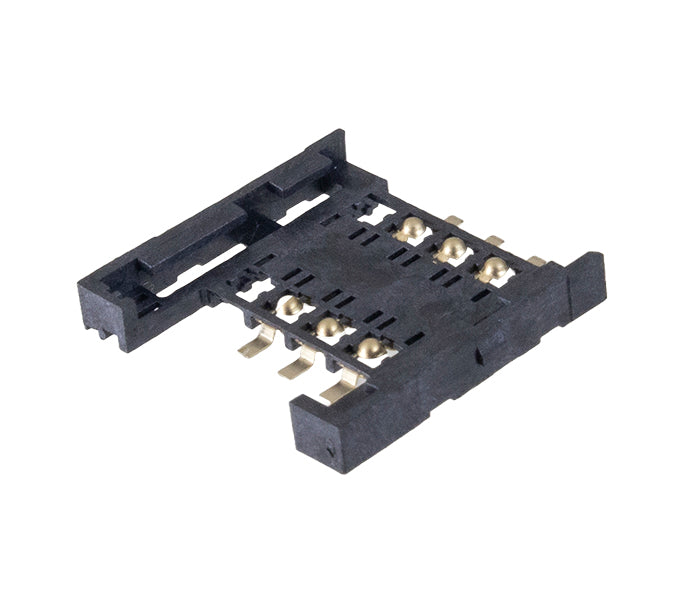

SIM Card Connectors SIM-F06

CÓD: SIM-F06

Description

The SIM-F06 connector is designed for applications in mobile devices and electronic systems that use SIM cards. With 6 sliding friction contacts, it ensures secure and reliable connections. Its construction from high-quality materials ensures durability and excellent electrical performance.

  • With 6 sliding friction contacts
  • Maximum current of 500mA and voltage up to 500VAC
  • UL94V-0 thermoplastic insulator
  • Supports up to 10000 insertion cycles

General specifications
Maximum current500mA
Max. initial contact resistance50mΩ
Min. insulation resistance1000MΩ / 500VDC
Dielectric strength500VAC (1 minuto)
Operating temperature-25 ~ 85°C
Insulator materialThermoplastic UL94V-0
Contact materialGold-plated phosphor bronze
TerminalsTin-plated phosphor bronze
Solda manual360°C, 3seg max.
Vapor fase215°C, 30seg max.
Refluxo por infra vermelho260°C, 15seg max.
Durability10000 ciclos
