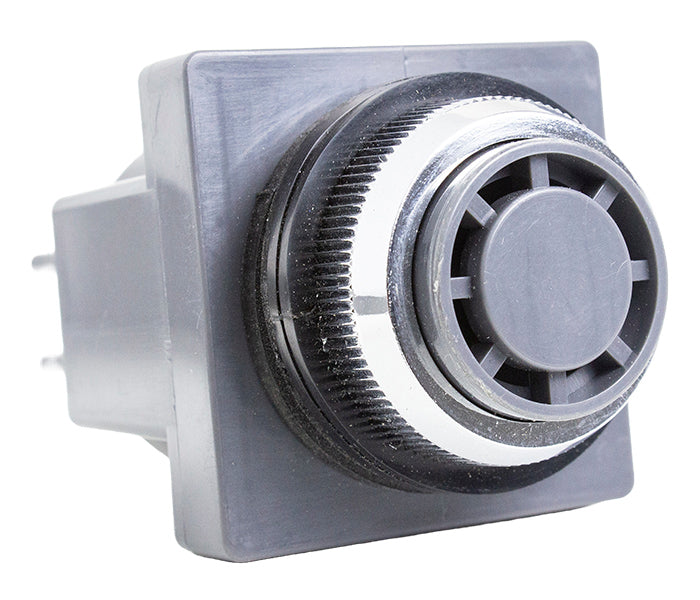

Continuous Audible TBY Beacon
CÓD: TBY-312D
Description
Description
TBY series audible buzzers, designed to provide high-volume auditory alerts in industrial applications. Compact and efficient, they are ideal for integration into panels and equipment requiring continuous audible signaling.
- Continuous sound with high intensity level
- Power supply options in 12V, 24V, 110V, and 220V
- Available in different sizes (Ø30 mm and Ø62 mm)
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| TBY-312D | 12VDC / 30mm / >85dB |
| TBY-324 | 24VAC/VDC / 30mm / >85dB |

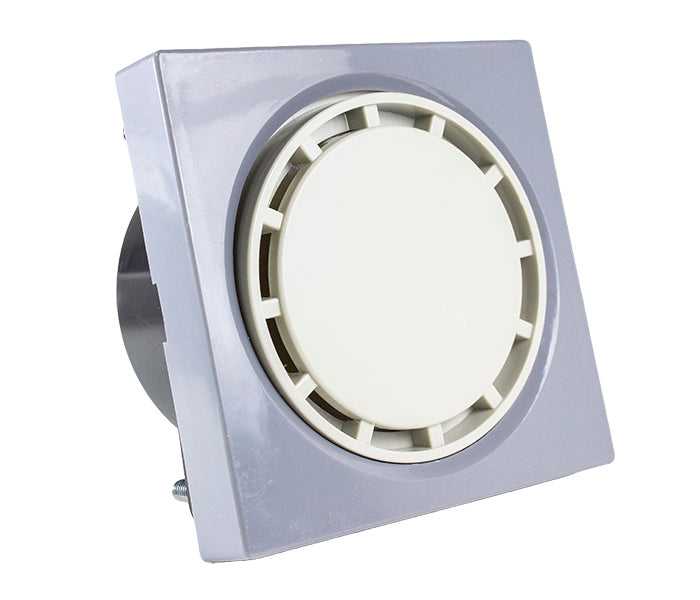

| TBY-24 | 24VAC/VDC / 62mm / >75dB |
| TBY-324D | 24VDC / 30mm / >85dB |
| TBY-24D | 24VDC / 62mm / >75dB |
| TBY-301 | 110VAC / 30mm / >75dB |
| TBY-110 | 110VAC / 62mm / >75dB |
| TBY-302 | 220VAC/VDC / 30mm / >85dB |
| TBY-220 | 220VAC/VDC / 62mm / >75dB |
General specifications
General specifications
| Insulation resistance | 100MΩ min. (500VDC) |
| Dielectric strength | 1500VAC (50/60Hz - 1 minuto) |
| Regime of operation | Maximum of 30 minutos use continuous |
| Intensidade sonora | Modelo Ø30mm: >85dB Modelo Ø62mm: >75dB |
