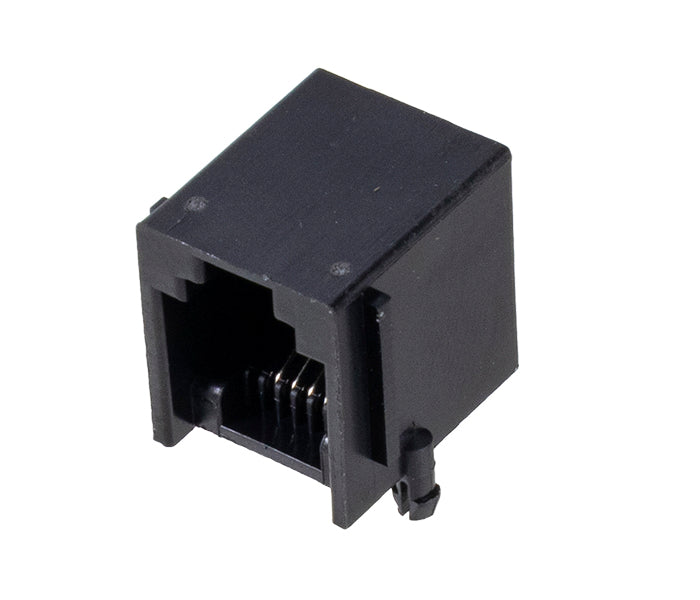

Modular Jack PCB Connector

CÓD: TFC-6P4C

Description

The modular jack is designed for secure connections on printed circuit boards. Its metal shielding ensures protection against electromagnetic interference, increasing transmission reliability. With support for up to 1.5A and 125V, it meets low-power applications in technical environments.

  • Maximum current of 2A
  • Insulator in PBT UL94V-0

General specifications
Maximum current2A
Maximum voltage125 VAC/VDC (VAC/VDC)
Max. initial contact resistance20mΩ
Min. insulation resistance10mΩ
Dielectric strength1000 VAC (1 minuto)
Operating temperature-40 ~ 85°C
Insulator materialPBT UL94V-0
Contact materialPhosphor bronze with 6μ Au
ColorBlack
