Keystone Jack Connector TFP
CÓD: TFP-88A-COVER
Description
Description
The METALTEX TFP-88M-COVER Keystone Jack is designed for structured networks with CAT5e performance. It offers reliable transmission up to 100 Mbps, following international TIA/EIA standards. Its robust construction with gold-plated contacts ensures durability and low signal loss.
- CAT5e compatible
- Phosphor bronze contacts with gold plating over nickel
- 110-style IDC termination
Select the options below
Code list
Code list
| Code | Description |
|---|---|

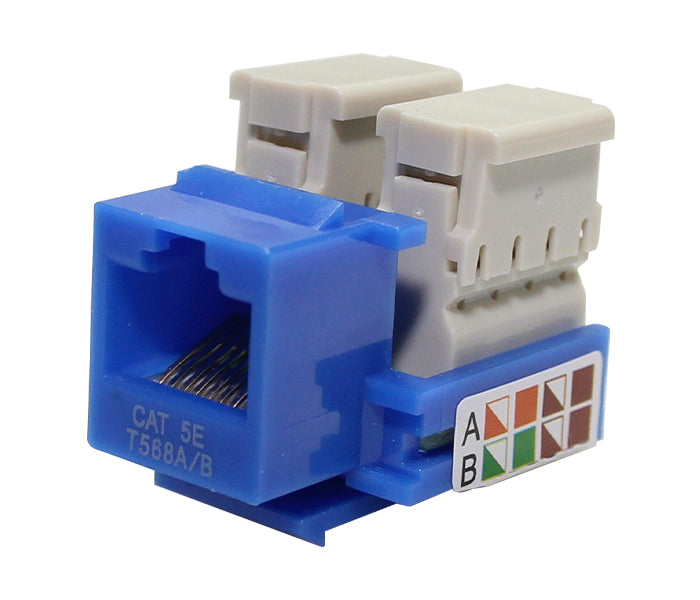

| TFP-88A-COVER | Blue |

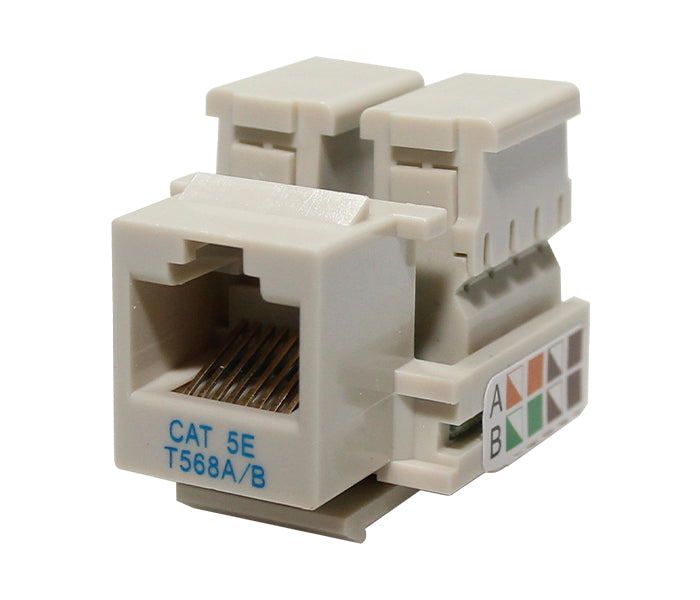

| TFP-88M-COVER | Beige |
| TFP-88B-COVER | White |

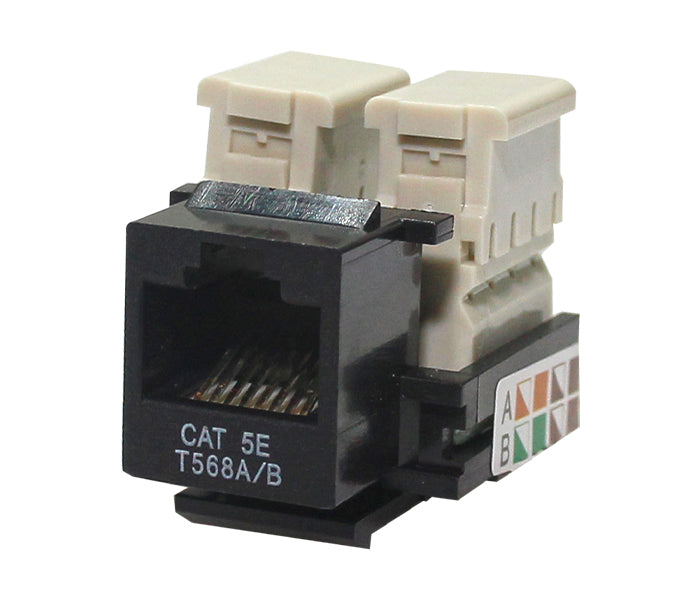

| TFP-88P-COVER | Black |
General specifications
General specifications
| Terminação | Connector IDC estilo 110 for impact vertical (With 2 plastic covers for protection and cable-clamp function) |
| Applicable wires | 22-26 AWG |
| Housing | ABS UL94V-0 |
| Contacts | Bronze phosphor with plating of 3μ of gold over 100μ of nickel |
| Operating temperature | 0 ~ 70°C |
| Force of insertion in the plugue | 900g |
| Force of retention in the plugue | 7.7kg |
| Durability | 500 cycles of insertion |
| Conduction current | 1.5A |
| Voltage allowable | 125VAC |
| Insulation resistance | 100MΩ (min.) |
| Dielectric strength | 1000Vrms (1 minuto) |
| Contact resistance | 20mΩ (max.) |
