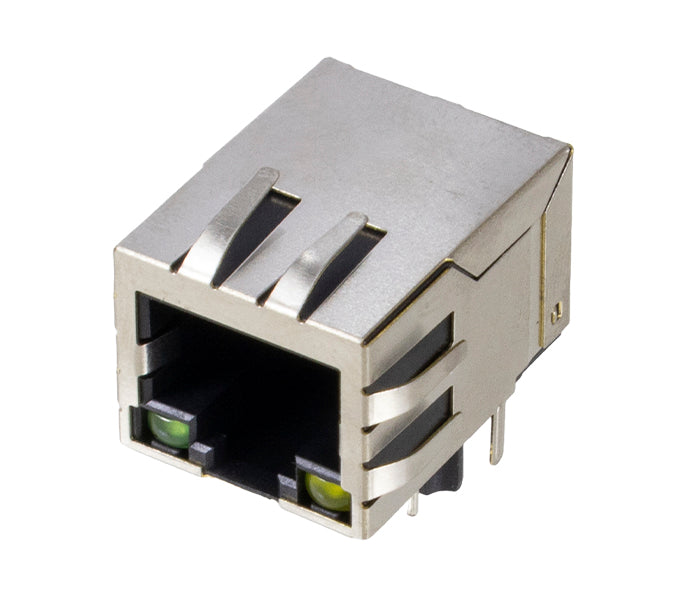

TFTL RJ45 Connector

Description

The modular jack is designed for secure and reliable connections in electronic and communication systems. Supporting up to 2A and 125V, it meets low-power applications in technical environments. Its robust construction with high-quality materials ensures durability and electrical stability.

  • Maximum current of 2A
  • PBT UL94V-0 insulator
  • Available in 4 to 8 position versions

CÓD: TFTL-01

General specifications
Maximum current2A
Maximum voltage125 VAC/VDC (VAC/VDC)
Max. initial contact resistance20mΩ
Min. insulation resistance10mΩ
Dielectric strength1000 VAC (1 minuto)
Operating temperature-40 ~ 85ºC
Insulator materialPBT UL94V-0
Contact materialPhosphor bronze with 6μ Au
ColorBlack
